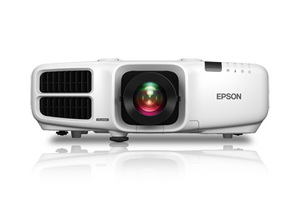

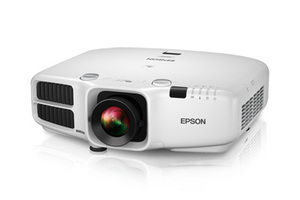

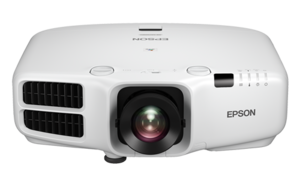

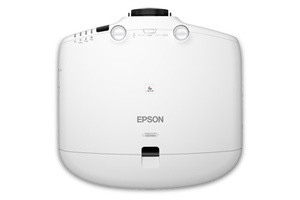

PowerLite Pro G6570WU WUXGA 3LCD Projector with Standard Lens

The PowerLite Pro G6570WU large-venue projector delivers WUXGA performance with Full HD support and uncompromising image quality. Offering up to 3x Brighter Colors^* than competitive models, Epson® 3LCD projectors ensure brilliant images. Ideal for conference rooms, auditoriums or houses of worship, the G6570WU features 5200 lumens of color brightness and 5200 lumens of white brightness¹. The projector offers simple integration with HDBaseT connectivity, and supports Crestron®, AMX®, Extron® XTP® and Control4® protocols. Installation is easy, with the included standard lens, five optional lenses, built-in Edge Blending, 360-degree projection and projector setting tools. Users can simultaneously project from multiple sources, plus remotely monitor and control projectors.

Up to 3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have up to 3x Brighter Colors than leading competitive projectors*. Delivering 5200 lumens of color brightness¹ and 5200 lumens of white brightness¹, the PowerLite Pro G6570WU uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Model: V11H700020

Find Accessories Support View Service Plans

REPLACEMENT PRODUCT :

EB-PU1006W WUXGA 3LCD Laser Projector with 4K Enhancement

Model: View Main Product Page Learn More

Overview

Up to 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite Pro G6570WU has:
Widescreen, Full HD performance — WUXGA (1920 x 1200) resolution supports Full HD for presentations, videos, digital signage and more
Versatile connectivity — easily integrate with any system; supports the latest connectivity options, including HDBaseT, HDMI and DisplayPort
Seamless control protocol support — compatible with Crestron, AMX, Extron XTP and Control4 Simple Device Discovery Protocol (SDDP)

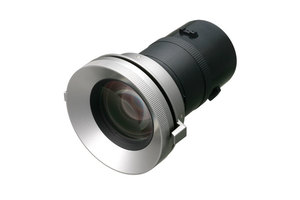

Five optional lenses with lens shift — including rear-, middle- and long-throw lenses for complete flexibility and easy exchange (standard lens is included)
Easy installation features — built-in Edge Blending, 360-degree installation flexibility and simple cloning functions
Advanced collaboration features — simultaneously project from multiple devices over the network with Multi-PC projection, or side-by-side from different sources with Split Screen²
Convenient remote management — remotely monitor and control the projector; includes scheduling function

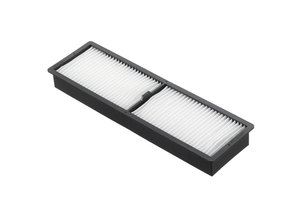

Industry-leading service and support — long-life air filter and easy maintenance tools, plus peace-of-mind ownership with next-business-day replacement³

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

Epson PowerLite Pro G6570WU Projector
Standard Lens
Power cable
Computer cable (VGA)
Projector remote control with batteries
User manual CD
EasyMP® software CD
Quick Setup Sheet
Lens lock screw

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 5200 lumens¹White Brightness - White Light Output: 5200 lumens¹Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200 (WUXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 380 W UHELamp Life:

Normal mode: Up to 2500 hours²
ECO mode: Up to 4000 hours²

Brightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.26 – 2.76Size - projected distance: 50" – 300"Keystone Correction:

Horizontal: ±30 degrees
Vertical: ±30 degrees

Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:

Pixel Clock, Horizontal, Vertical:

Pixel Clock

13.5 MHz – 162 MHz (up to UXGA 60 Hz)

Horizontal

15 KHz – 92 KHz

Vertical

50 Hz – 85 Hz

General:

Temperature: 32° to 113° F (0° to 45° C)Weight: 21.5 lb (with standard lens)Security:

Security cable hole
Lens lock
Kensington® lock provision,

Projection Lens:

Type: (For Standard Lens) Manual focus / zoomF-number: (For Standard Lens) 1.65 – 2.55Focal Length: (For Standard Lens) 21.28 mm – 37.94 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.8Lens Shift:

(For Standard Lens)

Vertical: ±67 degrees
Horizontal: ±30 degrees

Projector Details:

Display Performance:

NTSC: 480 line
PAL: 576 line

Input Signal:

NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Pixel works: video chip
3D Y/C separation, noise reduction motion compensated
Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

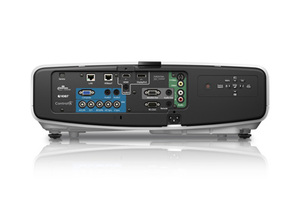

Interfaces:

HDMI x 1
DisplayPort x 1
Computer: D-sub 15 pin x 1
Video-1: 5-BNC x 1
Video-2: RCA x 1
Composite video: BNC x 1
S-Video x 1
Audio-in: Mini stereo x 3
Audio-in: RCA (L & R) x 1
Network: RJ-45 x 1, 100 Mbps
USB Type-A x 1, Type-B x 1
Serial: RS-232c
Hardwire Remote jack x 1
Monitor-Out: D-sub 15 pin x 1

Fan Noise:

Normal mode: 39 dB
ECO mode: 31 dB

Projector Dimensions:

Including feet: With standard lens: 19.88" x 15.94" x 6.73" (W x D x H)Excluding feet and lens: 19.88" x 15.04" x 5.67" (W x D x H)

Remote Control:

Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc andpointer functionsOperating Distance: 49 ftOperating Angle:

Right / Left:

Front: ±60 degrees
Rear: ±30 degrees

Upper / Lower:

Front: ±20 degrees
Rear: +10 to -45 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

Normal mode: 528 W
ECO mode: 421 W
Communication on: 2.8 W standby
Communication off: 0.31 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

SKU

Price
3-Year Next Business Day Whole Exchange - Extended Service Plan

SKU:

EPPEXPB3

Price:

$389.00

Added to Your Shopping Cart
2-Year Exchange - Extended Service Plan

SKU:

EPPEXPB2

Price:

$279.00

Added to Your Shopping Cart
1-Year Exchange - Extended Service Plan

SKU:

EPPEXPB1

Price:

$199.00

Added to Your Shopping Cart

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec. 2015 through Nov. 2016.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Consult your user manual for input combinations.

³ Expedited shipping not available in all areas. Road Service orders must be in by 3 p.m. Eastern Time for Next-Business-Day delivery.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
