Home For Work Projectors Large Venue PowerLite Pro G6750WUNL WUXGA 3LCD Projector without Lens
DISCONTINUED

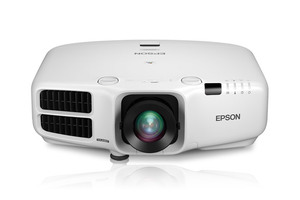

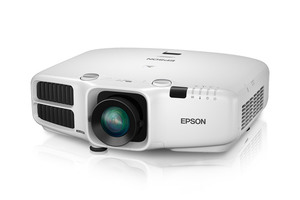

PowerLite Pro G6750WUNL WUXGA 3LCD Projector without Lens

Get uncompromising image quality and professional-grade reliability with the PowerLite Pro G6750WUNL WUXGA large-venue projector. Whether you're presenting in a conference room, auditorium, stage or house of worship, this powerful projector will keep your audience captivated. Incredible color brightness and WUXGA resolution means images are brighter, crisper and even more brilliant. Setup is a breeze with flexible, 360-degree installation and diverse connectivity options including HDBaseT. You'll stay in control with remote management functions and easily adapt to the environment with six optional lenses. Edge-blending capabilities enhance the experience with panoramic images and integrated curves and corners. Point and arc correction ensures that rectangular images are never compromised. And for the ultimate presentation, 3D stackable solutions and low-cost glasses take it all to the next level.

3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 6000 lumens of color brightness1 and 6000 lumens of white brightness1, the PowerLite Pro G6750WUNL uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

    • Projection System: High-aperture Epson 3-chip 3LCD technology
      Native Resolution: WUXGA (1920 x 1200)
      Color Brightness: 6000 lumens1
      White Brightness: 6000 lumens1
      Throw Distance Calculator
  • Model: V11H542920
REPLACEMENT PRODUCT :
Pro G7500UNL WUXGA 3LCD Projector with 4K Enhancement without Lens
Pro G7500UNL WUXGA 3LCD Projector with 4K Enhancement without Lens
Model: V11H750920 View Main Product Page Learn More
  • 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite Pro G6750WUNL has:
      Color Brightness: 6000 lumens1
      White Brightness: 6000 lumens1
  • Crisp, clear resolution — WUXGA resolution for incredible images
  • Six optional lenses with lens shift — standard, wide, rear, middle or long-throw for complete flexibility and easy exchange
  • Versatile connectivity — easily integrate with any system; including HDBaseT
  • Convenient remote management — remotely monitor and control presentations; includes scheduling function
  • Built-in edge-blending technology — seamlessly project more than one image at a time


IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Epson PowerLite Pro G6750WUNL Projector (lens not included)
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMP® software CD
  • Quick Setup Sheet

  • Registration card
  • Password protection sticker
  • Lens lock screw

Specifications Projector:


Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 6000 lumens1White Brightness - White Light Output: 6000 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200 (WUXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 380 W UHELamp Life:
  • Normal mode: Up to 2000 hours2
  • ECO mode: Up to 4000 hours2
Brightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: 1.26 – 2.76Size - projected distance: 50" – 300"Keystone Correction:
  • Horizontal: ±30 degrees
  • Vertical: ±30 degrees
Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

Effective Scanning Frequency Range:


Pixel Clock, Horizontal,Vertical:
    Pixel Clock
  • 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
  • Horizontal
  • 15 KHz – 92 KHz
  • Vertical
  • 50 Hz – 85 Hz

General:


Temperature: 32° to 113° F (0° to 45° C)Weight: 21.5 lb (with standard lens)Security:
  • Security cable hole
  • Lens lock
  • Kensington® lock provision,

Projection Lens:


Type: Manual focus / zoomF-number: 1.65 – 2.55Focal Length: 21.28 mm – 37.94 mmZoom Ratio: Optical zoom 1.0 – 1.8Lens Shift:
    With standard lens
  • Vertical: ±67 degrees
  • Horizontal: ±30 degrees

Projector Details:


Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
  • (depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  • Pixel works: video chip
  • 3D Y/C separation, noise reduction motion compensated
  • Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

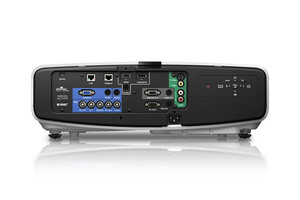

Interfaces:
  • HDMI x 1
  • DisplayPort x 1
  • Computer: D-sub 15 pin x 1
  • Video-1: 5-BNC x 1
  • Video-2: RCA x 1
  • Composite video: BNC x 1
  • S-Video x 1
  • Audio-in: Mini stereo x 3
  • Audio-in: RCA (L & R) x 1
  • Network: RJ-45 x 1, 100 Mbps
  • USB Type-A x 1, Type-B x 1
  • Serial: RS-232c
  • Hardwire Remote jack x 1
  • Monitor-Out: D-sub 15 pin x 1
  • HD BaseT x 1
Fan Noise:
  • Normal mode: 39 dB
  • ECO mode: 31 dB

Projector Dimensions:


Including feet: With standard lens: 19.88" x 15.94" x 6.73" (W x D x H)Excluding feet and lens: 19.88" x 15.04" x 5.67" (W x D x H)

Remote Control:


Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc andpointer functionsOperating Distance: 49 ftOperating Angle:
    Right / Left:
  • Front: ±60 degrees
  • Rear: ±30 degrees
  • Upper / Lower:
  • Front: ±20 degrees
  • Rear: +10 to -45 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode: 568 W
  • ECO mode: 421 W
  • Communication on: 3.3 W standby
  • Communication off: 0.41 W standby

Notes:

*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Epson projectors have 3x Brighter Colors than their leading competitive 1-chip DLP business and education projectors. Competitive projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
