The PowerLite Pro Z10000UNL projector combines high-lumen projection with Full HD, WUXGA performance — perfect for installation in large venues. Offering high Color Brightness*, Epson projectors ensure vivid images. With 10,000 lumens of color brightness and 10,000 lumens of white brightness1, the Z10000UNL makes content shine, even in high ambient light. Featuring 3LCD, 3-chip technology and the latest connectivity — including HDBaseTTM and 3G-SDI — this powerful performer delivers uncompromised image quality and professional-grade reliability. And, installation has never been more flexible, with seven optional lenses, lens shift, Curved Edge Blending, Portrait Mode and 360-degree projection features.

High Color Brightness with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% balanced Color Brightness and White Brightness. Delivering 10,000 lumens of color brightness1 and 10,000 lumens of white brightness1, the Pro Z10000UNL projector uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

    • Projection System: High-aperture Epson 3-chip 3LCD
      Native Resolution: WUXGA (1920 x 1200)
      Color Brightness: 10,000 lumens1
      White Brightness: 10,000 lumens1
      Throw Distance Calculator

  • Model: V11H610920
Find Accessories Support View Service Plans
Bright and Colorful
Features up to 10000 lumens of color brightness (color light output)1 and 10000 lumens of white brightness (white light output)1.
WUXGA Resolution
1920 x 1200 Full HD widescreen resolution
Edge Blending
Use multiple projectors to overlap images, and there are no bright spots where the overlap occurs – providing dynamic, seamless projection.
Portrait Mode
Allows you to turn the projector 90 degrees – great for digital signage, fashion shows, art galleries and museums
HDBaseT
Combines HDMI, ethernet and RS-232 into one cable
3G-SDI
Allows for the transmission of uncompressed digital video signals. Interface allows for a 328-foot cable length.
  • High Color Brightness and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite Pro Z10000UNL has:
      Color Brightness: 10,000 lumens1
      White Brightness: 10,000 lumens1
  • Widescreen, high-definition performance — WUXGA (1920 x 1200) resolution supports Full HD for presentations, videos, digital signage and more
  • Seven optional lenses with lens shift — including short-, wide-, rear- and long-throw lenses designed with a change-out lever for easy installation (lens not included)
  • Flexible installation for immersive experiences in any setting — built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
  • Get twice the brightness and power — optional stackable frame makes it easy to install two projectors for unbelievable brightness, plus 3D support
  • Versatile connectivity — supports the latest connectivity options, including HDBaseT, HDMITM, DVI and 3G-SDI

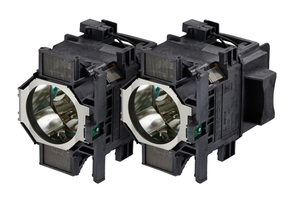

  • Dual-lamp design with lamp select/relay function — get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
  • Split Screen feature — project two images (video or still) side-by-side from two different sources simultaneously2
  • Convenient monitor and control features — easily manage the projector, either directly or remotely; compatible with AMX®, Crestron® and Extron®

What's in the box:

  • PowerLite Pro Z10000UNL projector
  • Power cable
  • Computer cable
  • Projector remote control
  • Batteries
  • Cable cover
  • User manual CD
  • Quick setup sheet
  • PrivateLine support card
  • Password protection sticker
  • Monitor and Control CD
  • Lens not included

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 pixels x 3LCDsColor Brightness - Color Light Output: 10,000 lumens1White Brightness - White Light Output: 10,000 lumens1Aspect Ratio: Native 16:10 (supports 4:3, 16:9, 5:4)Resolution: WUXGA (1920 x 1200)Lamp Type:
    Normal:
  • ECO mode: Up to 4000 hours2
  • Normal mode: Up to 2000 hours2
    • Portrait:
  • Normal mode: Up to 1000 hours2
Lamp Life:
  • Normal: 380 W x 2 UHE
  • Portrait: 304 W x 2 UHE
Brightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: 1.74 – 2.82 (standard lens)Size - projected distance: 60" – 500"Keystone Correction:
  • Vertical: -30 degrees to +30 degrees
  • Horizontal: -30 degrees to +30 degrees
Contrast Ratio: Normal, Dynamic Mode: Up to 15,000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colors

General:

Temperature:
  • Normal: 32° to 122° F (0° to 50° C)
  • Above 4900 feet: 32° to 104° F (0° to 40° C)
Security: Kensington®- style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cable wrap

Projection Lens:

Type: Powered zoom / focusF-number: 1.65 – 2.51 (standard lens), lens not includedFocal Length: 36 mm – 57.35 mm (standard lens)Zoom Ratio: Optical zoom 1.0 – 1.61 (standard lens)Lens Shift:
    Powered
  • Vertical: ±60%
  • Horizontal: ±18%

Video:

Video Processing:
  • Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
  • DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  • SD-SDI: 480i / 576i
  • HD-SDI: 720p / 1080i / 1080p@30
  • 3G-SDI: 1080p@60
  • SDI: 480i / 576i
Video Standards:
  • 3D Y/C separation, 3D noise reduction, mosquito noise reduction
  • DCDi — Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
Super Resolution:
  • FineFrame Interpolation
  • 8:8 Pull-down Processing
  • Closed Captioning

Connectivity Projector:

Standard Connectivity:
  • Wired: Integrated 100Mbps
  • Wireless: Optional — 802.11b/g/n
  • Wireless Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
Remote Control and Management:
  • Epson EasyMP® Monitor
  • Network projection
  • Multi-projection
  • AMX® Device Discovery
  • Crestron® Integrated Partner and Crestron RoomView®
  • Extron® IP Link and XTP
  • PJLink

Projector Details:

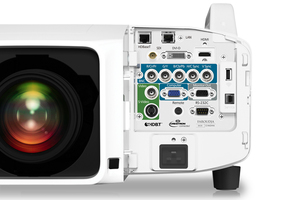

Interfaces:
  • HDMI x 1
  • DVI-D x 1
  • HDBase-T x 1
  • 3G-SDI x 1
  • Computer: D-sub 15 pin x 2
  • Video: BNC x 5
  • Composite Video: BNC x 1
  • Wired Network: RJ-45 x 1
  • Wireless Network: Optional
  • Serial: Rs-232c x 1
  • Hardwired Remote Jack x 1
  • Monitor-Out: D-sub 15 pin x 1
  • USB Type-A: For wireless only
  • USB Type-B: For service only
Speaker: NoneFan Noise:
  • ECO mode: 35 dB
  • Normal mode: 40 dB
Audio Output: None

Projector Dimensions:

Weight - with standard lens: 58 lbExcluding feet - with standard lens: 21.02" x 29.17" x 10.04" (W x D x H)Including feet - with standard lens: 21.02" x 29.17" x 7.76" (W x D x H)

Remote Control:

Features: Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screenOperating Distance: 98 ftOperating Angle:
    Front
  • Right / Left: ±60 degrees
  • Upper / Lower: -45 to +15 degrees
    • Rear
  • Right / Left: ±60 degrees
  • Upper / Lower: -40 to +15 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • ECO mode: 821 W
  • Normal mode: 1120 W
  • Communication on: 2.7 W standby
  • Communication off: 0.26 W standby
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Consult your user manual for input combinations.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
