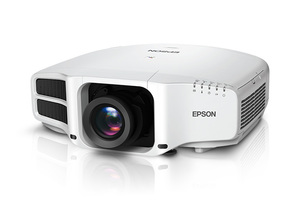

Pro G7100NL XGA 3LCD Projector without Lens

Bright large-venue projector with optional lenses and HDBaseT™.

The Pro G7100NL large-venue projector delivers uncompromising image quality and XGA resolution. Offering high Color Brightness*, Epson® 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the innovative G7100NL features 6500 lumens of color brightness and 6500 lumens of white brightness¹. Flexible integration features include an array of connectivity options, with support for HDBaseT, HDMI® and DVI-D inputs. It also offers ten optional interchangeable lenses with powered lens shift and lens memory (lens not included). Additional advanced capabilities include simultaneous projection from multiple sources and Web-based remote projector monitoring and control.

High Color Brightness with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% Balanced Color Brightness and White Brightness*. Delivering 6500 lumens of color brightness¹ and 6500 lumens of white brightness¹, the PowerLite Pro G7100NL uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Model: V11H754920

Find Accessories Support View Service Plans

Overview

High Color Brightness^* and reliable performance — 3LCD, 3-chip technology
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite Pro G7100NL has:
Brilliant images — XGA (1024 x 768) resolution for presentations, videos, digital signage and more
Ten optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (sold separately)
Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, VGA and 5-BNC, for easy integration with any system
Advanced collaboration features — simultaneously project side-by-side from different sources with Split Screen²
Web-based remote management — control and monitor projector status via a Web browser
Multi-PC Projection — connect up to 50 Windows®, Mac®, iOS® or Android devices and display up to four screens simultaneously over the network (controlled via the Moderator³ function)
Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
Professional installation features — full 360-degree installation flexibility, including Portrait Mode
Epson Warranty — Three-year limited warranty, Epson Road Service Program , Epson PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty

Eco Features

RoHS compliant
Recyclable product⁴
Epson America, Inc. is a SmartWay™ Transport Partner⁵

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness - Color Light Output: 6500 lumens¹White Brightness - White Light Output: 6500 lumens¹Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1024 x 768 (XGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 400 W UHELamp Life:

Normal mode: Up to 3000 hours²
ECO mode: Up to 4000 hours²

Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.44 – 2.32Size - projected distance: 50" – 300"Keystone Correction:

Horizontal: ±30 degrees
Vertical: ±45 degrees

Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:

Pixel Clock, Horizontal, Vertical:

Pixel Clock

13.5 MHz – 162 MHz (up to UXGA 60 Hz)

Horizontal

15 KHz – 92 KHz

Vertical

50 Hz – 85 Hz

General:

Temperature: 32° to 113° F (0° to 45° C)Weight: 28.4 lb (with standard lens)Security:

Security cable hole
Lens lock
Kensington® lock provision,

Projection Lens:

Type: (For Standard Lens) Powered focus / zoomF-number: (For Standard Lens) 1.70 – 2.30Focal Length: (For Standard Lens) 24.0 mm – 38.2 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.6xLens Shift:

(For Standard Lens)

Vertical: ±67 degrees
Horizontal: ±30 degrees

Projector Details:

Display Performance:

NTSC: 480 line
PAL: 576 line

Input Signal:

NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)

Interfaces:

HDBaseT x 1
DVI-D x 1
HDMI x 1
Computer: D-sub 15 pin x 1
Component Video: BNC x 1
Audio-in: Mini stereo x 3
Audio Out x 1
Network: RJ-45 x 1, 100 Mbps Serial: RS-232c
Hardwire remote jack x 1
Monitor Out: D-sub 15 pin x 1

Fan Noise:

Normal mode: 37 dB
ECO mode: 31 dB

Projector Dimensions:

Including feet: With standard lens: 20.67 x 18.58 x 7.44 (W x D x H)Excluding feet and lens: 20.67 x 16.73 x 7.28 (W x D x H)

Remote Control:

Features: Power, source search selection, computer, video, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:

Right / Left:

Front: ±60 degrees
Rear: ±30 degrees

Upper / Lower:

Front: ±20 degrees
Rear: +10 to +50 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

Normal mode: 540 W
ECO mode: 498 W
Communication on: 2.0 W standby
Communication off: 0.5 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

SKU

Price
3-Year Next Business Day Whole Exchange - Extended Service Plan

SKU:

EPPEXPB3

Price:

$389.00

Added to Your Shopping Cart
2-Year Exchange - Extended Service Plan

SKU:

EPPEXPB2

Price:

$279.00

Added to Your Shopping Cart
1-Year Exchange - Extended Service Plan

SKU:

EPPEXPB1

Price:

$199.00

Added to Your Shopping Cart

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

^* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
² Consult your user manual for input combinations.
³ Moderator feature is part of EasyMP Multi-PC Projection software.
⁴ For convenient and reasonable recycling options, visit www.epson.com/recycle
⁵ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
