For Work Projectors Large Venue Pro G7400UNL WUXGA 3LCD Projector with 4K Enhancement without Lens
Discontinued

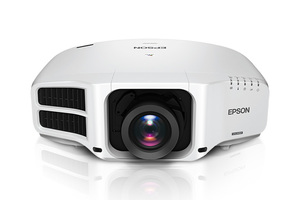

Pro G7400UNL WUXGA 3LCD Projector with 4K Enhancement without Lens

Large-venue projector with 4K Enhancement, optional lenses and HDBaseT™.

The Pro G7400UNL large-venue projector delivers uncompromising image quality and native WUXGA performance with Epson® 4K Enhancement Technology. Offering high Color Brightness*, Epson 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the reliable G7400UNL features 5500 lumens of color brightness and 5500 lumens of white brightness1. Innovative 4K Enhancement Technology ensures extraordinary image and video quality, while dynamic projection capabilities enable a range of applications. And, its outstanding integration features include diverse connectivity such as HDBaseT and ten optional powered lenses with lens shift and lens memory.

    • Projection System: High-aperture Epson 3-chip 3LCD technology
      Native Resolution: WUXGA (1920 x 1200) w/ 4K Enhancement Technology
      Color Brightness: 5500 lumens1
      White Brightness: 5500 lumens1
      Throw Distance Calculator
  • Model: V11H762920
REPLACEMENT PRODUCT :
EB-PU1006W WUXGA 3LCD Laser Projector with 4K Enhancement
EB-PU1006W WUXGA 3LCD Laser Projector with 4K Enhancement
Model: View Main Product Page Learn More
  • High Color Brightness* and reliable performance — 3LCD, 3-chip technology
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite Pro G7400UNL has:
      Color Brightness: 5500 lumens1
      White Brightness: 5500 lumens1
  • Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement† for presentations, videos, digital signage and more
  • Innovative 4K Enhancement Technology — doubles the number of pixels from 2.3 million (WUXGA) to 4.6 million for extraordinary image and video quality
  • Ten optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (sold separately)
  • Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, VGA and 5-BNC, for easy integration with any system
  • Advanced collaboration features — simultaneously project side-by-side from different sources with Split Screen2
  • Web-based remote management — control and monitor projector status via a Web browser
  • Multi-PC Projection — connect up to 50 Windows®, Mac®, iOS® or Android devices and display up to four screens simultaneously over the network (controlled via the Moderator3 function)
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
  • Epson Warranty — Three-year limited warranty, Epson Road Service Program , Epson PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

Specifications Projector:


Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 5500 lumens1White Brightness - White Light Output: 5500 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200 (WUXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 400 W UHELamp Life:
  • Normal mode: Up to 3000 hours2
  • ECO mode: Up to 4000 hours2
Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.44 – 2.32Size - projected distance: 50" – 300"Keystone Correction:
    (For Standard Lens)
  • Horizontal: ±30 degrees
  • Vertical: ±45 degrees
Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:


Pixel Clock, Horizontal, Vertical:
    Pixel Clock
  • 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
  • Horizontal
  • 15 KHz – 92 KHz
  • Vertical
  • 50 Hz – 85 Hz

General:


Temperature: 32° to 113° F (0° to 45° C)Weight: 28.4 lb (with standard lens)Security:
  • Security cable hole
  • Lens lock
  • Kensington® lock provision,

Projection Lens:


Type: (For Standard Lens) Powered focus / zoomF-number: (For Standard Lens) 1.70 – 2.30Focal Length: (For Standard Lens) 24.0 mm – 38.2 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.6xLens Shift:
    (For Standard Lens)
  • Vertical: ±67 degrees
  • Horizontal: ±30 degrees

Projector Details:


Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
  • (depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
  • Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)
Interfaces:
  • HDBaseT x 1
  • DVI-D x 1
  • HDMI x 1
  • Computer: D-sub 15 pin x 1
  • Component Video: BNC x 1
  • Audio-in: Mini stereo x 3
  • Audio Out x 1
  • Network: RJ-45 x 1, 100 Mbps Serial: RS-232c
  • Hardwire remote jack x 1
  • Monitor Out: D-sub 15 pin x 1
Fan Noise:
  • Normal mode: 39 dB
  • ECO mode: 31 dB

Projector Dimensions:


Including feet: With standard lens: 20.67 x 18.58 x 7.44 (W x D x H)Excluding feet and lens: 20.67 x 16.73 x 7.28 (W x D x H)

Remote Control:


Features: Power, source search selection, computer, video, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:
    Right / Left:
  • Front: ±60 degrees
  • Rear: ±30 degrees
  • Upper / Lower:
  • Front: ±20 degrees
  • Rear: +10 to +50 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode:498 W
  • ECO mode: 498 W
  • Communication on: 2.0 W standby
  • Communication off: 0.5 W standby

Service Plans:

Notes:

4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution and surpass Full HD image quality.
* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 Consult your user manual for input combinations.
3 Moderator feature is part of EasyMP Multi-PC Projection software.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
