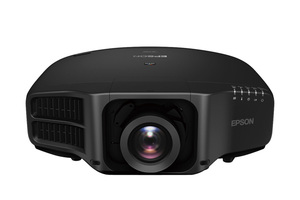

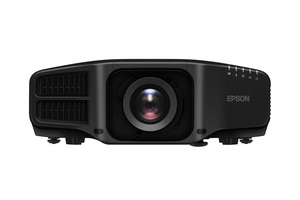

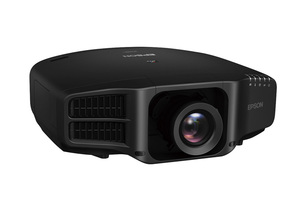

Pro G7805 XGA 3LCD Projector with Standard Lens

Ultra bright large-venue projector with powered lenses and HDBaseT™.

The Pro G7805 large-venue projector delivers ultra bright, uncompromising image quality and XGA resolution. Offering high Color Brightness*, Epson® 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the sleek, black G7805 features 8000 lumens of color brightness and 8000 lumens of white brightness1. Flexible integration features include an array of connectivity options, with support for HDBaseT, HDMI® and DVI-D inputs. It also offers nine optional interchangeable lenses with powered lens shift and lens memory (Ships with Middle#1 Lens - V12H004M08). Additional advanced capabilities include simultaneous projection from multiple sources and Web-based remote projector monitoring and control.

High Color Brightness with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% Balanced Color Brightness and White Brightness*. Delivering 8000 lumens of color brightness1 and 8000 lumens of white brightness1, the PowerLite Pro G7805 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

    • Projection System: High-aperture Epson 3-chip 3LCD technology
      Native Resolution: XGA (1024 x 768)
      Color Brightness: 8000 lumens1
      White Brightness: 8000 lumens1
      Throw Distance Calculator

  • Model: V11H753120
  • Up to High Color Brightness* and reliable performance — 3LCD, 3-chip technology
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite Pro G7805 has:
      Color Brightness: 8000 lumens1
      White Brightness: 8000 lumens1
  • Brilliant images — XGA (1024 x 768) resolution for presentations, videos, digital signage and more

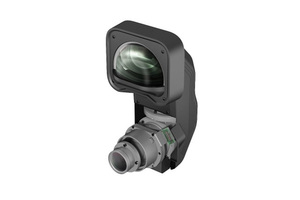

  • Nine optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (standard lens included)
  • Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, VGA and 5-BNC, for easy integration with any system
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
  • Web-based remote management — control and monitor projector status via a Web browser
  • Multi-PC Projection — connect up to 50 Windows®, Mac®, iOS® or Android devices and display up to four screens simultaneously over the network (controlled via the Moderator3 function)
  • Advanced collaboration features — simultaneously project side-by-side from different sources with Split Screen2
  • Professional installation features — full 360-degree installation flexibility, including Portrait Mode
  • Epson Warranty — Three-year limited warranty, Epson Road Service Program , Epson PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

Specifications Projector:

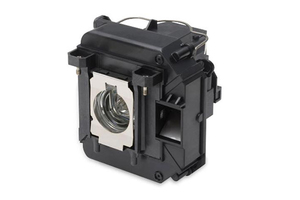

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness - Color Light Output: 8000 lumens1White Brightness - White Light Output: 8000 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1024 x 768 (XGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 400 W UHELamp Life:
  • Normal mode: Up to 3000 hours2
  • ECO mode: Up to 4000 hours2
Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.44 – 2.32Size - projected distance: 50" – 300"Keystone Correction:
    (For Standard Lens)
  • Horizontal: ±30 degrees
  • Vertical: ±45 degrees
Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:


Pixel Clock, Horizontal, Vertical:
    Pixel Clock
  • 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
  • Horizontal
  • 15 KHz – 92 KHz
  • Vertical
  • 50 Hz – 85 Hz

General:


Temperature: 32° to 113° F (0° to 45° C)Weight: 28.4 lb (with standard lens)Security:
  • Security cable hole
  • Lens lock
  • Kensington® lock provision,

Projection Lens:


Type: (For Standard Lens) Powered focus / zoomF-number: (For Standard Lens) 1.70 – 2.30Focal Length: (For Standard Lens) 24.0 mm – 38.2 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.6xLens Shift:
    (For Standard Lens)
  • Vertical: ±67 degrees
  • Horizontal: ±30 degrees

Projector Details:


Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
  • (depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
  • Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)

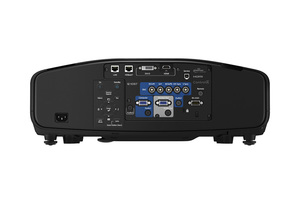

Interfaces:
  • HDBaseT x 1
  • DVI-D x 1
  • HDMI x 1
  • Computer: D-sub 15 pin x 1
  • Component Video: BNC x 1
  • Audio-in: Mini stereo x 3
  • Audio Out x 1
  • Network: RJ-45 x 1, 100 Mbps Serial: RS-232c
  • Hardwire remote jack x 1
  • Monitor Out: D-sub 15 pin x 1
Fan Noise:
  • Normal mode: 39 dB
  • ECO mode: 31 dB

Projector Dimensions:


Including feet: With standard lens: 20.67 x 18.58 x 7.44 (W x D x H)Excluding feet and lens: 20.67 x 16.73 x 7.28 (W x D x H)

Remote Control:


Features: Power, source search selection, computer, video, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:
    Right / Left:
  • Front: ±60 degrees
  • Rear: ±30 degrees
  • Upper / Lower:
  • Front: ±20 degrees
  • Rear: +10 to +50 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode:601 W
  • ECO mode: 498 W
  • Communication on: 2.0 W standby
  • Communication off: 0.5 W standby

Service Plans:

Notes:

*Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions.
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 Consult your user manual for input combinations.
3 Moderator feature is part of EasyMP Multi-PC Projection software.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
