Pro G7805NL XGA 3LCD Projector without Lens

Zoom In

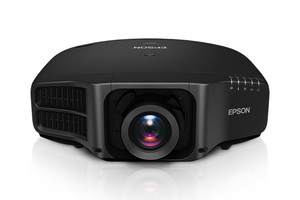

Pro G7805NL XGA 3LCD Projector without Lens

Ultra bright large-venue projector with optional lenses and HDBaseT™.

The Pro G7805NL large-venue projector delivers ultra bright, uncompromising image quality and XGA resolution. Offering 3x Higher Color Brightness* than competitive models, Epson® 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the sleek, black G7805NL features 8000 lumens of color brightness and 8000 lumens of white brightness1. Flexible integration features include an array of connectivity options, with support for HDBaseT, HDMI® and DVI-D inputs. It also offers ten optional interchangeable lenses with powered lens shift and lens memory. Additional advanced capabilities include simultaneous projection from multiple sources and Web-based remote projector monitoring and control.

3x Higher Color Brightness with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 8000 lumens of color brightness1 and 8000 lumens of white brightness1, the PowerLite Pro G7805NL uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Bright and Colorful
Features 8000 lumens of color brightness (color light output)1 and 8000 lumens of white brightness (white light output)1.
XGA Resolution
1024 x 768 resolution
HDBaseT
Combines HDMI, ethernet and RS-232 into one cable
Advanced Edge Blending
Get seamless panoramic, multi-screen edge blending on horizontal or vertical walls, with curved surface and corner wall support.
Optional Lenses
Interchangeable lens options with varying ranges for optimal placement and flexibility
Portrait Mode
Allows you to turn the projector 90 degrees – great for digital signage, fashion shows, art galleries and museums
  • 3x Higher Color Brightness* and reliable performance — 3LCD, 3-chip technology
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite Pro G7805NL has:
      Color Brightness: 8000 lumens1
      White Brightness: 8000 lumens1
  • Brilliant images — XGA (1024 x 768) resolution for presentations, videos, digital signage and more
  • Ten optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (sold separately)
  • Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, VGA and 5-BNC, for easy integration with any system
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
  • Web-based remote management — control and monitor projector status via a Web browser
  • Multi-PC Projection — connect up to 50 Windows®, Mac®, iOS® or Android devices and display up to four screens simultaneously over the network (controlled via the Moderator3 function)
  • Advanced collaboration features — simultaneously project side-by-side from different sources with Split Screen2
  • Professional installation features — full 360-degree installation flexibility, including Portrait Mode
  • Epson Warranty — Three-year limited warranty, Epson Road Service Program , Epson PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness - Color Light Output: 8000 lumens1White Brightness - White Light Output: 8000 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Native Resolution: 1024 x 768 (XGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 400 W UHELamp Life:
  • Normal mode: Up to 3000 hours2
  • ECO mode: Up to 4000 hours2
Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.44 – 2.32Size - projected distance: 50" – 300"Keystone Correction:
    (For Standard Lens)
  • Horizontal: ±30 degrees
  • Vertical: ±45 degrees
Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:

Pixel Clock, Horizontal,Vertical:
    Pixel Clock
  • 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
    • Horizontal
  • 15 KHz – 92 KHz
    • Vertical
  • 50 Hz – 85 Hz

General:

Temperature: 32° to 113° F (0° to 45° C)Weight: 28.4 lb (with standard lens)Security:
  • Security cable hole
  • Lens lock
  • Kensington® lock provision,

Projection Lens:

Type: (For Standard Lens) Powered focus / zoomF-number: (For Standard Lens) 1.70 – 2.30Focal Length: (For Standard Lens) 24.0 mm – 38.2 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.6xLens Shift:
    (For Standard Lens)
  • Vertical: ±67 degrees
  • Horizontal: ±30 degrees

Projector Details:

Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
    • (depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
  • Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)
Interfaces:
  • HDBaseT x 1
  • DVI-D x 1
  • HDMI x 1
  • Computer: D-sub 15 pin x 1
  • Component Video: BNC x 1
  • Audio-in: Mini stereo x 3
  • Audio Out x 1
  • Network: RJ-45 x 1, 100 Mbps Serial: RS-232c
  • Hardwire remote jack x 1
  • Monitor Out: D-sub 15 pin x 1
Fan Noise:
  • Normal mode: 39 dB
  • ECO mode: 31 dB

Projector Dimensions:

Including feet: With standard lens: 20.67 x 18.58 x 7.44 (W x D x H)Excluding feet and lens: 20.67 x 16.73 x 7.28 (W x D x H)

Remote Control:

Features: Power, source search selection, computer, video, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:
    Right / Left:
  • Front: ±60 degrees
  • Rear: ±30 degrees
    • Upper / Lower:
  • Front: ±20 degrees
  • Rear: +10 to +50 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode:601 W
  • ECO mode: 498 W
  • Communication on: 3.0 W standby
  • Communication off: 0.5 W standby
See Full Specs Hide Full Specs
Print All Specs

Epson Wins 2017 Platinum Readers’ Choice Award from Campus Technology

Campus Technology readers selected Epson as their favorite projector brand.
Read More

Epson Wins 2017 Platinum Readers’ Choice Award from THE Journal

THE Journal readers selected Epson as their favorite projector brand.
Read More
See All Accolades Hide All Accolades

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD business and education projectors and leading 1-chip DLP projectors, based on NPD sales data for June 2013 through May 2014 and PMA Research sales data for Q1 through Q3 2013.
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 Consult your user manual for input combinations.
3 Moderator feature is part of EasyMP Multi-PC Projection software.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Epson projectors have 3x Brighter Colors than their leading competitive 1-chip DLP Epson business and education projectors have 3x Brighter Colors than their leading competitive 1-chip DLP projectors. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
