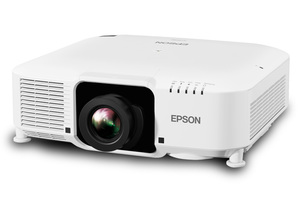

Pro L1060WNL WXGA 3LCD Laser Projector

Premium, compact large-venue laser projector.

The powerful Pro L1060WNL, part of Epson’s most compact interchangeable-lens laser projector series, offers 3-chip 3LCD technology and native WXGA resolution for widescreen images, all in a sleek white casing. Delivering extraordinary color brightness, Epson® 3LCD projectors ensure brilliant images. Providing 6,000 lumens of color brightness and 6,000 lumens of white brightness1, the L1060WNL’s laser light source and air filter offer virtually maintenance-free operation up to 20,000 hours2. With a high contrast ratio and BT.709 color space, it produces sharp, true-to-life images. And, it offers 11 interchangeable lens options (lens not included).

Some lenses will not support the maximum brightness level of this projector. VIEW THE PDF ►

  • Model: V11H958920
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
  • Simplified installation features — full 360-degree mounting, wide lens shift, versatile connectivity; inputs including HDBaseT™ and HDMI® (HDCP 2.2)
  • Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
  • Multi-projector setup software — free software controls networked projectors and gives access to warping and edge blending
  • Web- or network-based remote management — control and monitor projector status

Eco Features

  • RoHS compliant
  • Recyclable product3
  • Epson America, Inc. is a SmartWay™ Transport Partner4

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • Pro L1060WNL projector
  • power cable
  • cable cover
  • projector remote control with batteries
  • Quick Setup Sheet

Specifications Projector:


Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixResolution on Screen: WXGA up to 1.0 million pixelsPixel Number in Device: 1,024,000 pixels (1280 x 800) x 3 chipsSignal Input: Maximum display resolution 1920 x 1080 (resizing display)
Display resolution 1280 x 800 pixelsColor Brightness - Color Light Output: 6,000 lumens1White Brightness - White Light Output: 6,000 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Brightness Uniformity: 85%Pixel Arrangement: Cross stripeKeystone Correction: Vertical: ±45 degrees; horizontal: ±30 degreesContrast Ratio: 2,500,000:1 (Dynamic Contrast: On)Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal)2Illumination Technology: Laser Phosphor

General:


Operating Temperature: 32 ˚ to 113 ˚ F (0 ˚ to 45 ˚ C)Weight: 34.4 lb without lensSecurity: Security cable hole, Kensington lock provision

Projection Lens:


Type: Powered shift/focus/zoom (ELPLM08 Lens)F-number: 1.7 – 2.3 (ELPLM08 Lens)Focal Length: 24.0 mm – 38.2 mm (ELPLM08 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM08 Lens)Throw Ratio Range: 1.44 – 2.32 (ELPLM08 Lens)Lens Shift: Vertical: ±67 percent; Horizontal: ±30 percent (ELPLM08 Lens)

Projector Details:

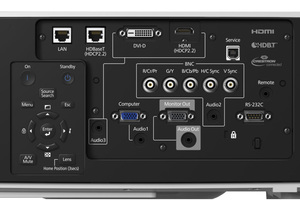

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160Interfaces:
  • DVI-D x 1
  • HDMI (HDCP 2.2) x 1
  • HDBaseT x 1
  • 5-BNC, VGA x 1
  • Audio in: Mini Stereo x 3
  • Variable audio out: Mini Stereo x 1
  • USB connector Type B x 1: For service only
  • USB connector Type A x 1: For wireless LAN, service, content playback
  • Monitor out: Mini D-sub 15-pin x 1
  • Serial: RS-232c x 1
  • Remote Stereo Mini x 1
  • Wired LAN: RJ45
Fan Noise: 34 dB (Normal Mode); 32 dB (Medium Mode) 30 dB (Quiet Mode)

Projector Dimensions:


Including feet - with standard lens: 21.5" x 7.4" x 19.1" (545 x 189 x 484 mm)

Remote Control:


Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functionsOperating Distance: 98 ftOperating Angle:
  • Right/left: Front: ± 60 degrees; Rear: ± 30 degrees
  • Upper/lower: Front: + 30 to - 20 degrees; Rear: +50 to + 10 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption: 361 W (Normal Mode), 263 W (Extended Mode), 2W (Network Standby), 0.5 W (Energy Saving)

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
3 For convenient and reasonable recycling options, visit www.epson.com/recycle
4 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
