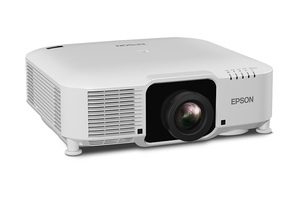

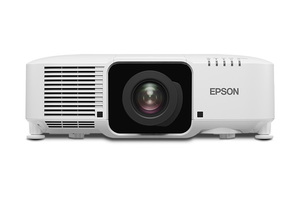

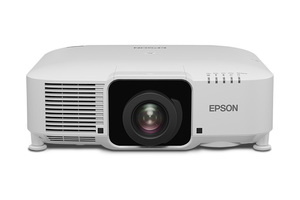

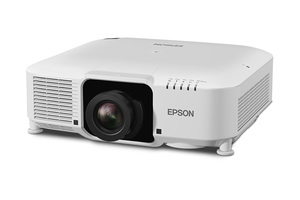

Pro L1070UNL WUXGA 3LCD Laser Projector with 4K Enhancement

Premium, compact large-venue laser projector with 4K Enhancement¹

The powerful Pro L1070UNL, part of Epson's most compact interchangeable-lens laser projector series, offers 3-chip 3LCD technology and native WUXGA resolution with 4K Enhancement Technology¹ (1920 x 1200 x 2). Delivering extraordinary color brightness, Epson^® 3LCD projectors ensure brilliant images. Providing 7,000 lumens of color brightness and 7,000 lumens of white brightness², the L1070UNL's laser light source and air filter offer virtually maintenance-free operation up to 20,000 hours³. With a high contrast ratio and BT.709 color space, it produces sharp, true-to-life images. And, it offers 11 optional interchangeable lenses.

Model: V11H940920

Find Accessories Support View Service Plans

REPLACEMENT PRODUCT :

EB-PU1007W WUXGA 3LCD Laser Projector with 4K Enhancement

Model: View Main Product Page Learn More

Overview

Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
Simplified installation features — full 360-degree mounting, wide lens shift, versatile connectivity; inputs including HDBaseT™ and HDMI® (HDCP 2.2)
Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
Multi-projector setup software — free software controls networked projectors and gives access to warping and edge blending
Web- or network-based remote management — control and monitor projector status

Eco Features

RoHS compliant
Recyclable product⁴
Epson America, Inc. is a SmartWay™ Transport Partner⁵

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

Pro L1070UNL projector
power cable
cable cover
projector remote control with batteries
Quick Setup Sheet

Specifications

Specifications Projector:

Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA with 4K Enhancement¹ (1920 x 1200 x 2)Resolution on Screen: WUXGA with 4K Enhancement¹/4.6 million pixels¹Pixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3 chipsSignal Input: Maximum Display Resolution: 4096 x 2160 (resizing display)
Display Resolution: 1920 x 1200 pixelsColor Brightness - Color Light Output: 7,000 lumens²White Brightness - White Light Output: 7,000 lumens²Aspect Ratio: Supports 4:3, 16:9, 16:10Brightness Uniformity: 85%Pixel Arrangement: Cross stripeContrast Ratio: 2,500,000:1 (Dynamic Contrast: On)Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal)³Illumination Technology: Laser Phosphor

General:

Operating Temperature: 32 ˚ to 113 ˚ F (0 ˚ to 45 ˚ C)Weight: 34.4 lb without lensSecurity: Security cable hole, Kensington lock provision

Projection Lens:

Type: Powered shift/focus/zoom (ELPLM08 Lens)F-number: 1.7 – 2.3 (ELPLM08 Lens)Focal Length: 24.0 mm – 38.2 mm (ELPLM08 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM08 Lens)Throw Ratio Range: 1.44 – 2.33 (ELPLM08 Lens)Lens Shift: Vertical: ±67 percent; Horizontal: ±30 percent (ELPLM08 Lens)

Projector Details:

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160Interfaces:

DVI-D x 1
HDMI (HDCP 2.2) x 1
HDBaseT x 1
5-BNC, VGA x 1
Audio in: Mini Stereo x 3
Variable audio out: Mini Stereo x 1
USB connector Type B x 1: For service only
USB connector Type A x 1: For wireless LAN, service, content playback
Monitor out: Mini D-sub 15-pin x 1
Serial: RS-232c x 1
Remote Stereo Mini x 1
Wired LAN: RJ45

Fan Noise: 36 dB (Normal Mode); 32 dB (Medium Mode) 30 dB (Quiet Mode)

Projector Dimensions:

Including feet - with standard lens: 21.5" x 7.4" x 19.1" (545 x 189 x 484 mm)

Remote Control:

Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functionsOperating Distance: 98 ftOperating Angle:

Right/left: Front: ± 60 degrees; Rear: ± 30 degrees
Upper/lower: Front: + 30 to - 20 degrees; Rear: +50 to + 10 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption: 439 W (Normal Mode), 313 W (Extended Mode), 2W (Network Standby), 0.5 W (Energy Saving)

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

SKU

Price
2-Year Exchange - Extended Service Plan

SKU:

EPPEXPC2

Price:

$1,019.00

Added to Your Shopping Cart
1-Year Exchange - Extended Service Plan

SKU:

EPPEXPC1

Price:

$589.00

Learn More

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

¹ 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
² Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
³ No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m³ of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
⁴ For convenient and reasonable recycling options, visit www.epson.com/recycle
⁵ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
