Home For Work Projectors Large Venue Pro L1075U 3LCD Laser Projector
DISCONTINUED

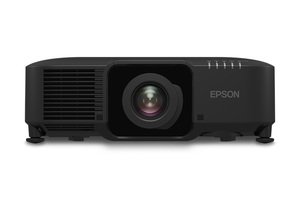

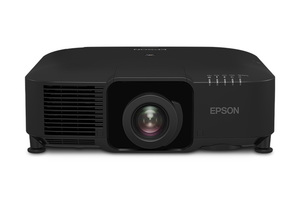

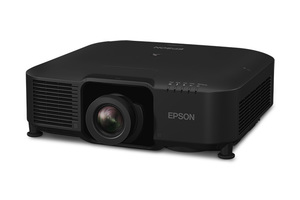

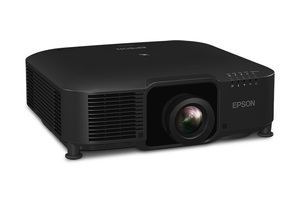

Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement

Zoom In
Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
Pro L1075U WUXGA 3LCD Laser Projector with 4K Enhancement

Premium, compact large-venue laser projector with 4K Enhancement1

The powerful Pro L1075U, part of Epson’s most compact interchangeable-lens laser projector series, offers 3-chip 3LCD technology and native WUXGA resolution with 4K Enhancement Technology1 (1920 x 1200 x 2), all in a sleek black casing. Delivering extraordinary color brightness, Epson® 3LCD projectors ensure brilliant images. Providing 7,000 lumens of color brightness and 7,000 lumens of white brightness2, the L1075U’s laser light source and air filter offer virtually maintenance-free operation up to 20,000 hours3. With a high contrast ratio and BT.709 color space, it produces sharp, true-to-life images. And, it offers 11 optional interchangeable lenses (standard lens included; ELPLM08).

  • Model: V11H940120
Find Accessories Support View Service Plans
REPLACEMENT PRODUCT :
EB-PU1007B WUXGA 3LCD Laser Projector with 4K Enhancement
EB-PU1007B WUXGA 3LCD Laser Projector with 4K Enhancement
Model: View Main Product Page Learn More
Ultra bright
7,000 lumens color/white brightness2 from a compact large-venue laser projector
Exceptional widescreen display
native WUXGA with 4K Enhancement Technology1 (1920 x 1200 x 2); accepts 4K content and provides up to 4.6 million pixels onscreen
Vibrant, true-to-life images
with Epson 3-chip 3LCD technology
Worry-free operation

solid-state laser light source and air filter provide virtually maintenance-free operation for up to 20,000 hours3
11 optional interchangeable lenses
with powered lens shift and lens memory, including an ultra short-throw lens with zero offset (standard lens included; ELPLM08)
Lifelike images
high contrast ratio and BT.709 color space for exceptional clarity and detail
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
  • Simplified installation features — full 360-degree mounting, wide lens shift, versatile connectivity; inputs including HDBaseT™ and HDMI® (HDCP 2.2)
  • Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
  • Multi-projector setup software — free software controls networked projectors and gives access to warping and edge blending
  • Web- or network-based remote management — control and monitor projector status

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • Pro L1075U projector
  • a lens
  • power cable
  • cable cover
  • projector remote control with batteries
  • Quick Setup Sheet

Specifications Projector:

Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)Resolution on Screen: WUXGA with 4K Enhancement1/4.6 million pixels1Pixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3 chipsSignal Input: Maximum Display Resolution: 4096 x 2160 (resizing display)
Display Resolution: 1920 x 1200 pixelsColor Brightness - Color Light Output: 7,000 lumens2White Brightness - White Light Output: 7,000 lumens2Aspect Ratio: Supports 4:3, 16:9, 16:10Brightness Uniformity: 85%Pixel Arrangement: Cross stripeContrast Ratio: 2,500,000:1 (Dynamic Contrast: On)Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal)3Illumination Technology: Laser Phosphor

General:

Operating Temperature: 32 ˚ to 113 ˚ F (0 ˚ to 45 ˚ C)Weight: 34.4 lb without lensSecurity: Security cable hole, Kensington lock provision

Projection Lens:

Type: Powered shift/focus/zoom (ELPLM08 Lens)F-number: 1.7 – 2.3 (ELPLM08 Lens)Focal Length: 24.0 mm – 38.2 mm (ELPLM08 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM08 Lens)Throw Ratio Range: 1.44 – 2.33 (ELPLM08 Lens)Lens Shift: Vertical: ±67 percent; Horizontal: ±30 percent (ELPLM08 Lens)

Projector Details:

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160Interfaces:
  • DVI-D x 1
  • HDMI (HDCP 2.2) x 1
  • HDBaseT x 1
  • 5-BNC, VGA x 1
  • Audio in: Mini Stereo x 3
  • Variable audio out: Mini Stereo x 1
  • USB connector Type B x 1: For service only
  • USB connector Type A x 1: For wireless LAN, service, content playback
  • Monitor out: Mini D-sub 15-pin x 1
  • Serial: RS-232c x 1
  • Remote Stereo Mini x 1
  • Wired LAN: RJ45
Fan Noise: 36 dB (Normal Mode); 32 dB (Medium Mode) 30 dB (Quiet Mode)

Projector Dimensions:

Including feet - with standard lens: 21.5" x 7.4" x 19.1" (545 x 189 x 484 mm)

Remote Control:

Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functionsOperating Distance: 98 ftOperating Angle:
  • Right/left: Front: ± 60 degrees; Rear: ± 30 degrees
  • Upper/lower: Front: + 30 to - 20 degrees; Rear: +50 to + 10 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption: 439 W (Normal Mode), 313 W (Extended Mode), 2W (Network Standby), 0.5 W (Energy Saving)
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

1 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
