Pro L1300U Laser WUXGA 3LCD Projector w/ 4K Enhancement & Standard Lens

Premium large-venue laser projector with 4K Enhancement*.

The Pro L1300U large-venue projector combines a laser light source, inorganic components and 3LCD technology for powerful, uncompromising images. Ideal for events staging, auditoriums and sanctuaries, this advanced projector features native WUXGA performance with Epson® 4K Enhancement Technology^*. Offering extraordinary color brightness, Epson 3LCD projectors ensure brilliant images. Delivering 8,000 lumens of color brightness and 8,000 lumens of white brightness¹, the L1300U's laser light source also provides 20,000 hours of virtually maintenance-free operation². Plus, its exceptional integration capabilities include diverse connectivity such as HDBaseT™ and nine optional powered lenses with lens shift and lens memory (Ships with Middle#1 Lens - V12H004M08).

Model: V11H733020

Find Accessories Support View Service Plans

REPLACEMENT PRODUCT :

EB-PU1008W WUXGA 3LCD Laser Projector with 4K Enhancement

Model: View Main Product Page Learn More

Overview

One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The Pro L1300U has:
Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement^*for presentations, videos, digital signage and more
Solid-state laser light source — virtually maintenance-free 20,000-hour laser light source with no lamps²
Innovative 4K Enhancement Technology^* — doubles the number of pixels from 2.3 million (WUXGA) to 4.6 million for extraordinary image and video quality
Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, SDI, VGA and 5-BNC, for easy integration with any system
Nine optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (standard lens included)
Web-based remote management — control and monitor projector status via a Web browser
Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
Professional installation features — full 360-degree installation flexibility, including Portrait Mode
Industry-leading service and support — get peace-of-mind ownership with free next-business-day replacement³, plus postage-paid returns

Eco Features

RoHS compliant
Recyclable product⁴
Epson America, Inc. is a SmartWay™ Transport Partner⁵

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT INFORMATION ABOUT USAGE ENVIRONMENTS ►

What's in the box:

Pro L1300U projector
Middle #1 Lens - V12H004M08
Power cable
Computer cable (VGA)
Projector remote control with batteries
User manual CD
EasyMP software CD
Quick Setup Sheet
Lens lock screw

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 8000 lumens¹White Brightness - White Light Output: 8000 lumens¹Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200 (WUXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: Varies by lensSize - projected distance: 50" – 300"Keystone Correction:

Horizontal: ±30 degrees
Vertical: ±45 degrees

Contrast Ratio: 2,500,000:1Color Processing: 10 bitColor Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:

Pixel Clock, Horizontal, Vertical:

Pixel Clock

13.5 MHz – 162 MHz (up to UXGA 60 Hz)

Horizontal

15 KHz – 92 KHz

Vertical

50 Hz – 85 Hz

General:

Temperature: 32° to 113° F (0° to 45° C)Weight: 42.2 lb without lensSecurity:

Security cable hole
Lens lock
Kensington® lock provision,

Projection Lens:

Type: (For Standard Lens) Powered shift/focus / zoomF-number: Varies by lensFocal Length: Varies by lensZoom Ratio: Varies by lensLens Shift:

(For Standard Lens)

Vertical: ±67 degrees
Horizontal: ±30 degrees

Video:

Video Processing:

Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p

Video Standards:

3D Y/C separation, 3D noise reduction, mosquito noise reduction
DCDi — Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)

Super Resolution:

FineFrame Interpolation
8:8 Pull-down Processing
Closed Captioning

Connectivity Projector:

Standard Connectivity:

Wired: Integrated 100Mbps
Wireless: Optional — 802.11b/g/n
Wireless Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)

Remote Control and Management:

Epson EasyMP® Monitor
Network projection
Multi-projection
AMX® Device Discovery
Crestron® Integrated Partner and Crestron RoomView®
Extron® IP Link and XTP
PJLink

Projector Details:

Display Performance:

NTSC: 480 line
PAL: 576 line

Input Signal:

NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)

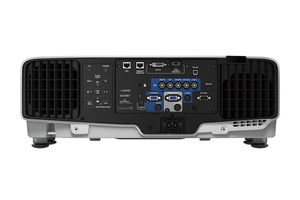

Interfaces:

DVI-D x 1
HDMI x 1
HDBaseT x 1
5-BNC, VGA x 1
Audio in: Mini
Stereo x 3
Variable audio out: Mini Stereo x 1
USB connector Type B x 1: For service only
USB connector Type A x 1: For wireless only
Monitor out: Mini D-sub 15 pin x 1
Serial: RS-232c x 1

Speaker: YesFan Noise:

Normal mode: 34 dB
ECO mode: 28 dB

Audio Output: Variable audio out: Mini Stereo x 1

Projector Dimensions:

Excluding feet and lens: 23.07 x 19.37 x 7.76 (W x D x H)Including feet - with standard lens: 23.07 x 19.37 x 8.31 (W x D x H)

Remote Control:

Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:

Right / Left:

Front: ±60 degrees
Rear: ±30 degrees

Upper / Lower:

Front: ±45 to ±15 degrees
Rear: ±10 to ±50 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

Normal mode: 658 W
ECO mode: 434 W
Communication on: 2.0W standby
Communication off: 0.22 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

SKU

Price
2-Year Exchange - Extended Service Plan

SKU:

EPPEXPC2

Price:

$1,019.00

Added to Your Shopping Cart
1-Year Exchange - Extended Service Plan

SKU:

EPPEXPC1

Price:

$589.00

Learn More

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

^* 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution and surpass Full HD image quality.
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
² No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first.
³ Expedited shipping not available in all areas. Road Service orders must be in by 3 p.m. Eastern Time for Next-Business-Day delivery.
⁴ For convenient and reasonable recycling options, visit www.epson.com/recycle
⁵ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
