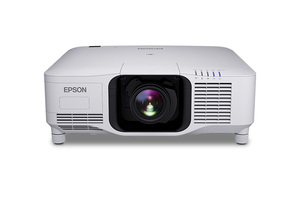

Pro L1750UNL WUXGA 3LCD Laser Projector with 4K Enhancement Without Lens

Premium large-venue laser projector with 4K Enhancement1.

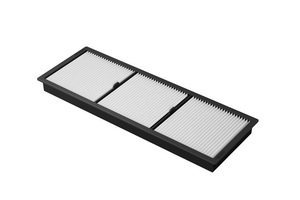

The Pro L1750UNL combines a laser light source, inorganic components and 3LCD technology for powerful, uncompromising images. This premium large-venue projector also features native WUXGA performance with Epson® 4K Enhancement Technology1. Delivering 15,000 lumens of color/white brightness2 from a standard 120 V power source, the compact Pro L1750UNL offers ultra bright, vivid color, while its laser light source engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours3. This sleek, white projector’s includes built-in Edge Blending, and integration capabilities like 3G-SDI and HDBaseT™, plus nine optional powered lenses (sold separately).

Some lenses will not support the maximum brightness level of this projector. VIEW THE PDF ►

    • Projection System: High-aperture Epson 3-chip 3LCD
      Native Resolution: WUXGA (1920 x 1200) w/ 4K Enhancement Technology1
      Color Brightness: 15,000 lumens2
      White Brightness: 15,000 lumens2

      Throw Distance Calculator

  • Model: V11H892920
  • Bright, vivid color — 15,000 lumens color/white brightness2
  • Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement1 for presentations, videos, digital signage and more
  • Solid-state laser light source — virtually maintenance-free 20,000-hour laser light source with no lamps3
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
  • Powerful — remarkable brightness from a compact projector with a 120 V power source
  • Advanced connectivity — 3G-SDI, HDBaseT, HDMI®, DVI-D, VGA, 5-BNC and Stereo Mini

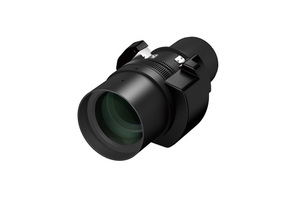

  • Nine optional interchangeable lenses (sold separately) — with powered lens shift and lens memory
  • Installation flexibility — 360-degree projection and Portrait Mode for added versatility
  • Remote management and control tools — included software allows for web-based monitoring and control of Epson networked projectors
  • Image correction camera — automatically adjusts color and brightness to match other projectors in multiple-screen applications

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWaySM Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • Pro L1750UNL projector
  • Power cable
  • Projector remote control with batteries
  • Cable cover
  • HDMI clamp

Specifications Projector:


Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 15000 lumens2White Brightness - White Light Output: 15000 lumens2Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200 (WUXGA)Resize: 1280 x 1024, 1400 x 1050Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens Only) 1.57 — 2.56Size - projected distance: 60" – 500"Contrast Ratio: 2,500,000:1Color Reproduction: Up to 1 billion colorsLight Source Life:
  • Normal: 20,000 hours3
  • Extended: 30,000 hours3

Effective Scanning Frequency Range:


Pixel Clock, Horizontal,Vertical:
    Pixel Clock
  • 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
  • Horizontal
  • 15 KHz – 92 KHz
  • Vertical
  • 50 Hz – 85 Hz
Horizontal: 15 kHz – 92 kHzVertical: 50 Hz – 85 Hz

General:


Temperature: 32° to 113° F (0° to 45° C)Operating Temperature: 32 ˚ to 113 ˚F (0 ˚ to 45 ˚ C)Weight: 52.2 lb (with standard lens, not included)Security:
  • Security cable hole
  • Lens lock
  • Kensington® lock provision,

Projection Lens:


Type: (For Standard Lens, Not Included) Powered shift/focus / zoomF-number: (For Standard Lens, Not Included) 1.8 – 2.35Focal Length: (For Standard Lens, Not Included) 36.0 – 57.35 mmZoom Ratio: (For Standard Lens, Not Included) Optical zoom 1 – 1.61Lens Shift: Vertical: ±60%; horizontal: ±18%

Projector Details:

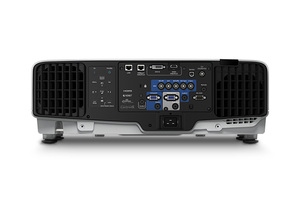

Input Signal: NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080p/UHD/4KInterfaces:
  • 3G-SDI x 1
  • DVI-D x 1
  • HDMI x 1
  • HDBaseT x 1
  • 5-BNC
  • VGA x 1
  • Audio in: Mini Stereo x 3
  • Variable audio out: Mini Stereo x 1
  • USB connector Type B x 1: For service only
  • USB connector Type A x 1: For wireless only
  • Monitor out: Mini D-sub 15 pin x 1
  • Serial: RS-232c x 1
Fan Noise:
  • Normal mode: 37 dB
  • Quiet mode: max. 30 dB

Projector Dimensions:


Including feet - with standard lens: 23.1" x 19.4" x 8.3" (W x D x H)

Remote Control:


Features: Power, search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, Color Mode, help, menu, enter, esc and standbyOperating Distance: 49 ftOperating Angle:
  • Right/left: Front: ± 60 degrees, Rear: ± 30 degrees
  • Upper/lower: Front: ± 20 degrees, Rear: +10 to +50 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode: 1082 W
  • ECO mode: 668W
  • Communication on: 2.0W standby
  • Communication off: 0.3 W standby

Notes:

1 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution and surpass Full HD image quality.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. Some lenses will not support the maximum brightness level of this projector.

3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first.

4 For convenient and reasonable recycling options, visit www.epson.com/recycle

5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
