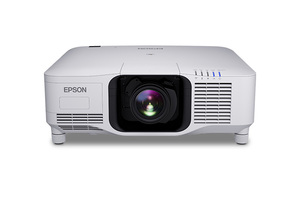

Pro L20000UNL WUXGA 3LCD Laser Projector Without Lens

Premium large-venue WUXGA laser projector with 20,000 lumens.

The Pro L20000UNL combines a laser light source and 3-chip, 3LCD technology for powerful, lifelike images, delivering outstanding brightness in a remarkably compact form factor. A premium large-venue projector, it features Full HD WUXGA resolution and 20,000 lumens of color/white brightness¹ for ultra bright, vivid color. Its laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours². With two interface slots designed to accommodate a wide range of inputs, the Pro L20000UNL provides the ultimate in connectivity. And, it supports optional lenses (sold separately), including a zero-offset ultra short-throw lens. Projector also available in white.

Model: V11H833820

Find Accessories Support View Service Plans

REPLACEMENT PRODUCT :

EB-PU2120W 20,000-Lumen 3LCD Laser Projector with 4K<sup>1</sup> Enhancement

EB-PU2120W 20,000-Lumen 3LCD Laser Projector with 4K¹ Enhancement

Model: View Main Product Page Learn More

Overview

Designed for demanding environments — features a sealed light source and optical engine for outstanding durability for live events and fixed installations
Dynamic projection capabilities — with advanced tools like tiling assist, Edge Blending and auto-color adjustment for fast installation; free software for multi-projector setup
Bold, vibrant images — supports High Dynamic Range (HDR) via HDR10 (PQ) and Hybrid Log Gamma (HLG); BT.709 color space
Mechanical shutter — protects against damage from external laser lights
Frame interpolation — ideal for fast-moving images
Wide lens shift — optimized lens and optical engine design

Eco Features

RoHS compliant
Recyclable product³
Epson America, Inc. is a SmartWay™ Transport Partner⁴

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

Brochure

View and download product brochure.

Learn More

Specifications

Specifications Projector:

Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA (1920 x 1200)Resolution on Screen: WUXGA / 2.3 million pixelsPixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3 chipsSignal Input: Maximum display resolution 1920 x 1200.
Display resolution 1920 x 1200 pixelsColor Brightness - Color Light Output: Color Light Output: 20,000 lumens¹White Brightness - White Light Output: White Light Output: 20,000 lumens¹Aspect Ratio: 16:10, 16:9, 4:3Brightness Uniformity: 90%Pixel Arrangement: Cross stripeContrast Ratio: 2,500,000:1Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal); 30,000 hours (Extended)²Illumination Technology: Laser Diode

General:

Operating Temperature: 32 ˚ to 113 ˚ F (0 ˚ to 45 ˚ C)Weight: 109.3 lb (without standard lens, not included)Security: Security cable hole, Kensington lock provision

Projection Lens:

Type: Powered shift/focus/zoom (ELPLM15 Lens)F-number: 1.8 – 2.35 (ELPLM15 Lens)Focal Length: 36.0 – 57.4 mm (ELPLM15 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM15 Lens)Throw Ratio Range: 1.57 – 2.56 (ELPLM15 Lens)Lens Shift: Vertical: ±60 percent; Horizontal: ±18 percent (ELPLM15 Lens)

Projector Details:

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160Interfaces:

3G-SDI x 1 (SDI out x 1 - Active through)
HDBaseT x 1
5-BNC
VGA x 1

Interface (Slot 1)

ELPIF01 (included from factory)
DVI-D x 1
HDMI® x 1 (HDCP2.2)
DC Out (500 mA)

Interface (Slot 2)

Blank from factory
Interface Card (optional)
ELPIF03
Display Port x 2 (DP 20p)

Other

USB connector Type B x 1: for Firmware update, Copy OSD Settings
USB connector Type A x 1: for Firmware update, Copy OSD Settings, DC Out 900 mA
Monitor out: Mini D-sub 15-pin x 1
Serial: RS-232c x 1
Remote: Stereo mini
Wire LAN x 1 etherCON

Fan Noise: 45 dB (Normal Mode); max. 38 dB (Quiet Mode)

Projector Dimensions:

Including feet: 24.4" x 14.1" x 31.1" (620 x 358.5 x 790 mm)

Remote Control:

Features: Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Freeze, User ID, Auto, Aspect, Color Mode, Menu, Slot 1, Slot 2 and moreOperating Distance: 49 ftOperating Angle: Right/Left: Front: ± 50 degrees; Rear: ± 40 degrees
Upper/Lower: Front: ± 50 degrees; Rear: +30 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC; Requires 200-240 V for full spec. operationPower Consumption: 1860 W (Normal Mode)
1123 W (Extended Mode)
2.0 W Standby (Communication on)
0.5 W Standby (Communication off)

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

SKU

Price
2-Year Extended Service Plan - Return for Repair

SKU:

EPPEXPD2

Price:

$3,900.00

Learn More
1-Year Extended Service Plan - Return for Repair

SKU:

EPPEXPD1

Price:

$2,080.00

Learn More

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. Some lenses will not support the maximum brightness level of this projector.
² No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first.
³ For convenient and reasonable recycling options, visit www.epson.com/recycle
⁴ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
