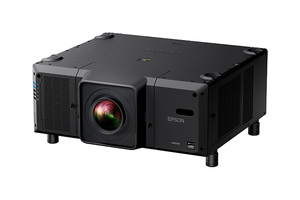

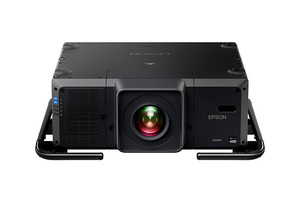

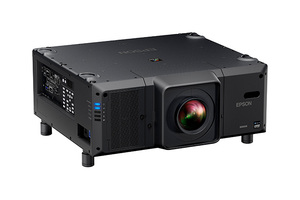

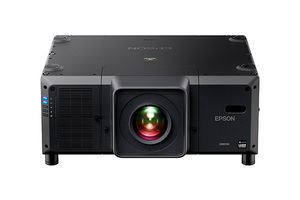

Pro L30000UNL Laser WUXGA 3LCD Projector with 4K Enhancement

3LCD laser projector with 30,000 lumens² plus 4K Enhancement¹

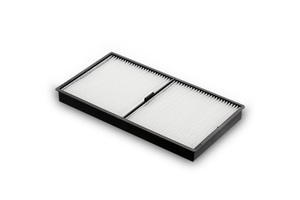

Epson’s brightest projector, the Pro L30000UNL offers 30,000 lumens of color and white brightness², plus native WUXGA resolution with 4K Enhancement Technology¹, making it the perfect choice for live events, rental and staging, auditoriums, lecture halls and other large-venue applications. The solid-state laser light engine and electrostatic air filter offer virtually maintenance-free operation for up to 20,000 hours³. The projector includes a host of premium features for enhanced durability and fast setup, such as a mechanical shutter and sealed optical engine as well as Stacking Assist, Tiling Assist and a built-in camera. Nine optional interchangeable lenses are available.

Model: V11H944820

Find Accessories Support View Service Plans

Overview

Designed for live events — features a sealed light source and optical engine for outstanding durability in harsh conditions
Stacking Assist — for fast, simple stacking of two projectors
Tiling Assist for projecting large images — fast setup for edge blending in multi-projector applications
Built-in cameras — facilitate Stacking Assist, Tiling Assist and auto-color calibration of networked projectors
Supports High Dynamic Range (HDR) content — HDR10⁴ (PQ) and Hybrid Log Gamma (HLG)
Frame interpolation — helps ensure image clarity when projecting scenes with fast-moving objects

Eco Features

RoHS compliant
Recyclable product⁵
Epson America, Inc. is a SmartWay™ Transport Partner⁶

Better Products for a Better Future™
For more information on Epson's environmental programs, go to eco.epson.com

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

Pro L30000UNL projector

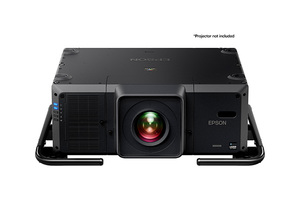

Mounting Bracket (ELPMB56)
Quick Start Guide
Power cables
Projector remote control with batteries
HDMI cable clamp

Specifications

Specifications Projector:

Projection System: High-aperture Epson^® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA with 4K Enhancement¹ (1920 x 1200 x 2)Resolution on Screen: WUXGA with 4K Enhancement¹/4.6 million pixelsPixel Number in Device: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 30,000 lumens²White Brightness - White Light Output: 30,000 lumens²Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200Maximum Resolution: 4096 x 2160 (resizing display)Brightness Uniformity: 90%Pixel Arrangement: Cross stripeSize - projected distance: 100" – 1000"Keystone Correction: Vertical: ±45 degrees; Horizontal: ±30 degreesContrast Ratio: 2,000,001:1 +Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal/Quiet); 30,000 hours (Extended)³Illumination Technology: Laser Diode

General:

Operating Temperature: 32 ̊ to 122 ̊F (0 ̊ to 50 ̊C)Dimensions: (excluding feet, lens, handle) 31.1" x 28" x 11.4" (790mmx710mmx290mm)Weight: (excluding lens and handle) 140.7 lb/63.8 kgSecurity: Kensington lock provision, Lens Lock, Wireless LAN Unit LockEco Features:

RoHS compliant
Recyclable product⁵
Epson America, Inc. is a SmartWay® Transport Partner⁶

Warranty: The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first

Projection Lens:

Type:

Powered shift/focus/zoom
Standard Lens ELPLM12

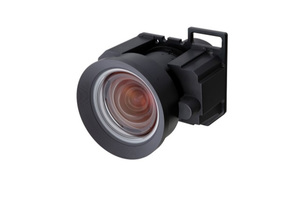

See website for information on optional lenses

F-number: 1.9 – 2.1Focal Length: 54.7 – 73 mmZoom Ratio: Optical zoom 1 – 1.35xThrow Ratio Range: 1.74 (Wide) – 2.35 (Tele)Lens Shift: Vertical: ±65 percent; Horizontal: ±30 percent

Projector Details:

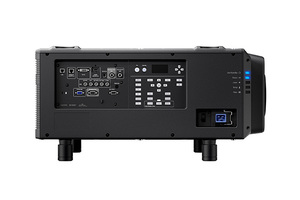

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160Interfaces:

1x DVI-D
1X HDMI® (HDCP 2.2)
1x HDBaseT^TM (HDCP 2.2)
5-BNC, 1x VGA
1x 3G-SDI
USB 2.0 Connectors: 1x Type B (For Firmware update, copy OSD) 1x Type A (For Optional Wireless LAN)
Monitor Out: 1x Mini D-sub 15 pin
Serial Control Serial: 1x RS-232c
1x SDI Out (Loop-Through)
Remote: Stereo Mini
Wire LAN x 1 RJ45 (Compliant with Control I/O (Art-Net))

Fan Noise: 49 dB (Normal Mode); max. 41 dB (ECO Mode)

Remote Control:

Features: Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Remote ID, Auto, Aspect, Color Mode, Menu and moreOperating Distance: 98 ftOperating Angle:

Right/Left: Front: ± 50 degrees; Rear: ± 40 degrees
Upper/Lower: Front: ± 50 degrees; Rear: +20 degrees

Power:

Power Supply Voltage: 200 - 240 V AC ±10%, 50/60 Hz; Only for temporary setting, 100 - 120 V usage is acceptablePower Consumption:

Requires 200-240 V
2325 W (Normal Mode)
2.5 Network Standby (Communication on)
0.5 Energy Saving (Communication off)

See Full Specs Hide Full Specs

Print All Specs

Accessories

Service Plans

Service Plans:

1-Year Extended Service Plan - Return for Repair

We know protecting your investment is important. Epson Preferred Plus Extended Service Plans offer peace of mind beyond the device’s limited warranty and help keep you up and running — because we understand there’s simply no time for downtime.

Learn More

SKU

Price
2-Year Extended Service Plan - Return for Repair

SKU:

EPPEXPD2

Price:

$3,900.00

Learn More
1-Year Extended Service Plan - Return for Repair

SKU:

EPPEXPD1

Price:

$2,080.00

Learn More

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

¹ 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
² Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
³ No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50 percent from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.
⁴ HDR performance available with select third-party devices. For more information, see www.epson.com/hdrcompatibility
⁵ For convenient and reasonable recycling options, visit www.epson.com/recycle
⁶ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
