For Work Projectors Large Venue Pro L30002UNL Laser WUXGA 3LCD Projector with 4K Enhancement

Pro L30002UNL Laser WUXGA 3LCD Projector with 4K Enhancement

Contact Us

800-241-5747

Mon-Fri 6am-6pm PT

3LCD laser projector with 30,000 lumens2 plus 4K Enhancement1

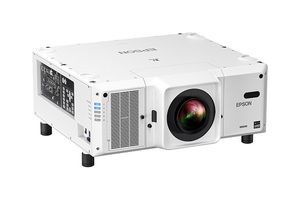

Epson’s brightest projector, the Pro L30002UNL offers 30,000 lumens of color and white brightness2, plus native WUXGA resolution with 4K Enhancement Technology1, making it the perfect choice for live events, rental and staging, auditoriums, lecture halls and other large-venue applications. The solid-state laser light engine and electrostatic air filter offer virtually maintenance-free operation for up to 20,000 hours3. The projector includes a host of premium features for enhanced durability and fast setup, such as a mechanical shutter and sealed optical engine as well as Stacking Assist, Tiling Assist and a built-in camera, all housed within a premium white casing. Nine optional interchangeable lenses are available.

    • Projection System: High-aperture Epson® 3LCD, 3-chip technology

      Native Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
      Color Brightness: 30,000 lumens2
      White Brightness: 30,000 lumens2

  • Model: V11H944920
  • Designed for live events — features a sealed light source and optical engine for outstanding durability in harsh conditions
  • Stacking Assist — for fast, simple stacking of two projectors
  • Tiling Assist for projecting large images — fast setup for edge blending in multi-projector applications
  • Built-in cameras — facilitate Stacking Assist, Tiling Assist and auto-color calibration of networked projectors
  • Supports High Dynamic Range (HDR) content — HDR104 (PQ) and Hybrid Log Gamma (HLG)
  • Frame interpolation — helps ensure image clarity when projecting scenes with fast-moving objects

Eco Features

  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWay™ Transport Partner6

Better Products for a Better Future™
For more information on Epson's environmental programs, go to eco.epson.com

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Pro L30002UNL projector

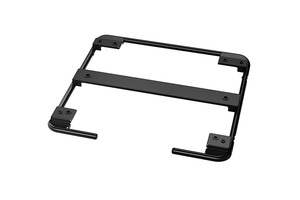

  • Handling Frame (ELPMB56)
  • Quick Start Guide
  • Power cables
  • Projector remote control with batteries
  • HDMI cable clamp

Specifications Projector:


Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)Resolution on Screen: WUXGA with 4K Enhancement1/4.6 million pixelsPixel Number in Device: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 30,000 lumens2White Brightness - White Light Output: 30,000 lumens2Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1920 x 1200Maximum Resolution: 4096 x 2160 (resizing display)Brightness Uniformity: 90%Pixel Arrangement: Cross stripeSize - projected distance: 100" – 1000"Keystone Correction: Vertical: ±45 degrees; Horizontal: ±30 degreesContrast Ratio: 2,000,001:1 +Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal/Quiet); 30,000 hours (Extended)3Illumination Technology: Laser Diode

General:


Operating Temperature: 32 ̊ to 122 ̊F (0 ̊ to 50 ̊C)Dimensions: (excluding feet, lens, handle) 31.1" x 28" x 11.4" (790mmx710mmx290mm)Weight: (excluding lens and handle) 141.5 lb/63.8 kgSecurity: Kensington lock provision, Lens Lock, Wireless LAN Unit LockEco Features:
  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWay® Transport Partner6
Warranty: The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first

Projection Lens:


Type:
  • Powered shift/focus/zoom
  • Standard Lens ELPLM12
  • See website for information on optional lenses
F-number: 1.9 – 2.1Focal Length: 54.7 – 73 mmZoom Ratio: Optical zoom 1 – 1.35xThrow Ratio Range: 1.74 (Wide) – 2.35 (Tele)Lens Shift: Vertical: ±65 percent; Horizontal: ±30 percent

Projector Details:


Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160Interfaces:
  • 1x DVI-D
  • 1X HDMI® (HDCP 2.2)
  • 1x HDBaseTTM (HDCP 2.2)
  • 5-BNC, 1x VGA
  • 1x 3G-SDI
  • USB 2.0 Connectors: 1x Type B (For Firmware update, copy OSD) 1x Type A (For Optional Wireless LAN)
  • Monitor Out: 1x Mini D-sub 15 pin
  • Serial Control Serial: 1x RS-232c
  • 1x SDI Out (Loop-Through)
  • Remote: Stereo Mini
  • Wire LAN x 1 RJ45 (Compliant with Control I/O (Art-Net))
Fan Noise: 49 dB (Normal Mode); max. 41 dB (ECO Mode)

Remote Control:


Features: Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Remote ID, Auto, Aspect, Color Mode, Menu and moreOperating Distance: 98 ftOperating Angle:
  • Right/Left: Front: ± 50 degrees; Rear: ± 40 degrees
  • Upper/Lower: Front: ± 50 degrees; Rear: +20 degrees

Power:


Power Supply Voltage: 200 - 240 V AC ±10%, 50/60 Hz; Only for temporary setting, 100 - 120 V usage is acceptablePower Consumption:
  • Requires 200-240 V
  • 2325 W (Normal Mode)
  • 2.5 Network Standby (Communication on)
  • 0.5 Energy Saving (Communication off)

Service Plans:

1-Year Extended Service Plan - Return for Repair

We know protecting your investment is important. Epson Preferred Plus Extended Service Plans offer peace of mind beyond the device’s limited warranty and help keep you up and running — because we understand there’s simply no time for downtime.

Notes:

1 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50 percent from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.
4 HDR performance available with select third-party devices. For more information, see www.epson.com/hdrcompatibility
5 For convenient and reasonable recycling options, visit www.epson.com/recycle
6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
