Home For Work Projectors Meeting Room PowerLite L400U WUXGA 3LCD Laser Projector
DISCONTINUED

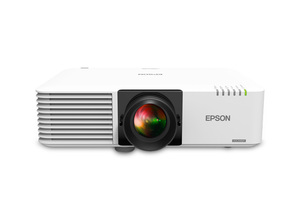

PowerLite L400U WUXGA 3LCD Laser Projector

Zoom In
PowerLite L400U WUXGA 3LCD Laser Projector
PowerLite L400U WUXGA 3LCD Laser Projector
PowerLite L400U WUXGA 3LCD Laser Projector
PowerLite L400U WUXGA 3LCD Laser Projector
PowerLite L400U WUXGA 3LCD Laser Projector
PowerLite L400U WUXGA 3LCD Laser Projector
PowerLite L400U WUXGA 3LCD Laser Projector
PowerLite L400U WUXGA 3LCD Laser Projector

Bright, compact WUXGA laser projector with 4,500 lumens.

The compact, affordable PowerLite L400U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 4,500 lumens color/white brightness1. This robust projector also offers WUXGA resolution and Full HD support. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours2. And, it offers virtually maintenance-free with no lamps. Plus, it features a Dynamic contrast ratio up to 2,500,000:1. It also features advanced installation features and enterprise-level wireless security support (module sold separately).

  • Model: V11H907020
Find Accessories Support View Service Plans
REPLACEMENT PRODUCT :
PowerLite L520U Full HD WUXGA 3LCD Long-throw Laser Projector
PowerLite L520U Full HD WUXGA 3LCD Long-throw Laser Projector
Model: View Main Product Page Learn More
Bright, vivid color
4,500 lumens color/white brightness1.
Full HD, widescreen images up to 500"

WUXGA resolution (1920 x 1200); Full HD 1080p support
Breakthrough laser technology

features a laser light source of up to 20,000 hours2; plus, Instant ON/OFF
Virtually maintenance-free operation

no lamps
Extraordinary sharpness and detail
up to 2,500,000:1 Dynamic contrast ratio
Optional wireless networking with enterprise-level security
plus wireless content sharing with Epson iProjection™3; wireless module sold separately
  • Versatile connectivity — 2 ports HDMI®, port VGA, port RJ-45, port mini-stéréo et plus
  • Advanced installation features — 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more
  • Constant Brightness Mode4 — fine-tune the brightness setting to help maximize run time
  • Remote management and control tools — compatible with Crestron®, AMX®, PJLink and more; offers easy access and maintenance

Eco Features

  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWay™ Transport Partner6

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • PowerLite L400U Projector
  • Power cord
  • Computer cable (VGA)
  • Remote control and batteries
  • Quick setup poster

Specifications Projector:

Projection System: RGB Liquid Crystal Shutter Projection SystemProjection Method: Front, Front/Ceiling, Rear, Rear/CeilingLCD Screen: 0.67" (D10 with C2Fine™)Driving Method: Poly-silicon TFT Active MatrixPixel Number: 2,304,000 pixels (1920 x 1200) x 3Color Brightness - Color Light Output: 4,500 lumens1White Brightness - White Light Output: 4,500 lumens1Aspect Ratio: 16:10Resolution: 1920 x 1200 (WUXGA)Throw Ratio Range: 1.35–2.20Size - projected distance: 80" screen: 2.33–3.78 mKeystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degreesContrast Ratio: Up to 2,500,000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colorsLight Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hoursIllumination Technology: Laser Diode

Effective Scanning Frequency Range:

Pixel Clock: Analog: 13.5–162 MHz (up to UXGA 60 Hz)
Digital: 13.5–162 MHz (up to UXGA 60 Hz)Horizontal: Analog: 15–92 kHz
Digital: 15–75 kHzVertical: Analog: 50–85 Hz
Digital: 24/30/50/60 Hz

Projection Lens:

Type: Optical Zoom (Manual)/Focus (Manual)F-number: 1.5–1.7Screen Size: Zoom: Wide: 50"–500" [1.44–14.76 m]; Zoom: Tele: 50"–500" [2.35–23.84 m]Focal Length: 20.0–31.8 mmZoom Ratio: 1–1.6Lens Cover: Lens cap (without string)

Projector Details:

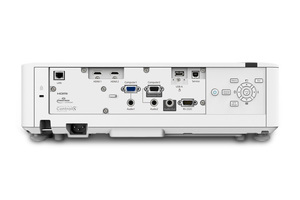

Interfaces:
  • 2x HDMI (1x MHL)
  • Analog: D-sub 15 pin
  • 1x Control I/O: RS-232C D-sub 9 pin
  • USB-I/O: Type A 1x; Type B 1x
  • Wired LAN RJ45
  • Wireless LAN Optional Accessory
  • Audio in (stereo): 2x
  • Audio out (stereo): 1x
Fan Noise: 38 dB (Normal Mode), 28 dB (ECO Mode)

Projector Dimensions:

Including feet: 17.32" x 11.97" x 5.35" (W x D x H)Excluding feet: 17.32" x 11.97" x 4.73" (W x D x H)Weight - with standard lens: Approx. 17.1 lb/7.8 kg

Remote Control:

Operating Distance: 8 mOperating Angle:
  • Front: Right/Left: ±60 degrees; Upper/Lower: +30 to -20 degrees
  • Rear: Right/Left: ±30 degrees; Upper/Lower: +50 to +10 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption: Normal: 324 W; Quiet: 245 W; Networked Standby 2.0 W; Energy Saving: 0.3 W
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector comes with a 3-year limited warranty.

3 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

4 Color light output and white light output (lumens) in Constant Brightness Mode can be lower than the maximum output achievable when the Constant Brightness Mode is off. Actual run time may vary depending on environmental conditions, usage and settings.

5 For convenient and reasonable recycling options, visit www.epson.com/recycle

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
