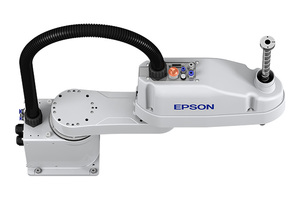

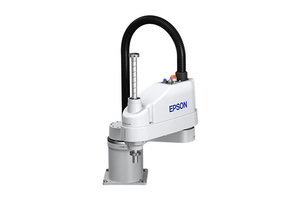

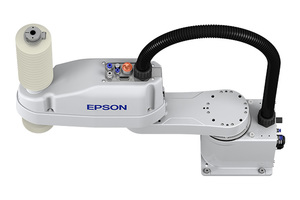

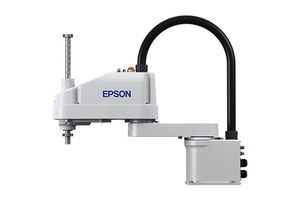

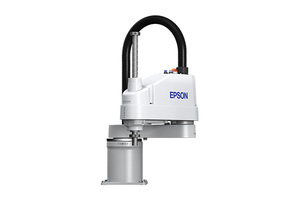

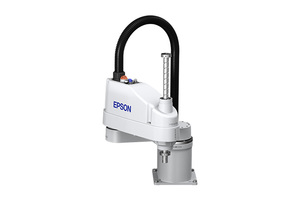

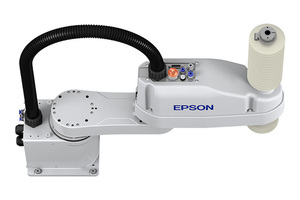

Epson LS6 SCARA Robots - 500mm

High Performance with Low Cost

  • Fast Cycle Throughput
  • Industry Leading Ease of Use
  • ISO 4 Clean Model Available
  • Also available in 600mm and 700mm arm lengths

Epson LS6 SCARA robots are perfect for factories looking for maximum value without giving up performance. They are used for applications such as mechanical or electrical assembly, pick and place, kitting, dispensing and much more. Epson LS6 SCARA's are the robot of choice when price/performance is critical. LS6 SCARA arms come with 500, 600 or 700mm of reach and ISO 4 Clean Models are available. With outstanding cycle times, industry leading ease of use and of course Epson reliability, LS6's are the robots of choice.

All Epson LS6 SCARA Robots are available with our low cost, high performance RC90 Controller that provides the ultimate experience in ease of use and reliability all at an incredibly low price. Epson RC+ is the development environment of choice for reducing overall development time with powerful tools and easy to use integrated options such as Vision Guidance, DeviceNet, Profibus, Microsoft .NET support, GUI Builder and much more.

REPLACEMENT PRODUCT :

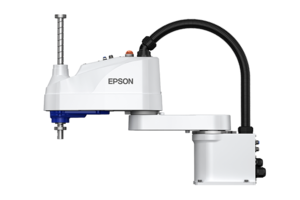

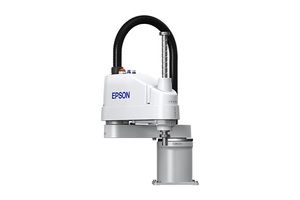

Epson LS6-B SCARA Robot - 500mm
Epson LS6-B SCARA Robot - 500mm
Model: View Main Product Page Learn More

As part of our LS-Series robot lineup, the LS6 models are perfect when more reach or payload is required for applications which require high speed but at a lower cost. The LS6 robots come with our RC90 controller which uses the Industry leading RC+ Development Environment and has a host of options available including vision guidance, .NET connectivity, DeviceNet, Profibus, CC-Link, GUI Builder and much more. LS6 robots are ideal for pick and place and simplistic applications although the RC90 has the power to handle more complex applications as well.

High Performance
  • High speed cycle times to maximize part throughput
  • Outstanding Accel/Decel Rates with smooth start/stop motion
  • Top speeds of 7450 mm/sec (LS6-700) gets parts moved fast and precisely
  • Low residual vibration due to powerful proprietary servo system design

Great Value
  • Performance comparable to more expensive competitive models

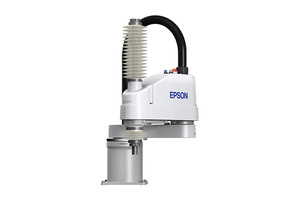

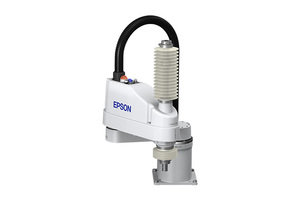

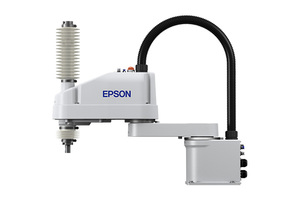

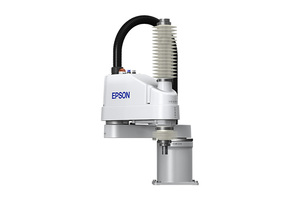

  • Standard and ISO 4 Clean Model available for semiconductor or other industries
  • Same Epson quality, reliability and support with a reduced price

Best in Class Controller and Development Software
  • Epson RC+ leads the industry in ease of use to save development time (Now shipping with Epson RC+ 7.0)
  • Hundreds of language statements and the power to get the job done easily and right the first time
  • Integrated options to maximize system performance and reduce overall development time (see options page for more details)
  • High performance processing power many times faster than competitors models

Used for a Wide Variety of Applications adn Industries
  • Automotive
  • Hard Drive
  • Medical
  • Lab Automation
  • Consumer Products
  • Industrial Products
  • Telecommunications
  • Pharmaceutical
  • Packaging
  • Semiconductor
  • Electronics

Core Specifications:


Arm Length / Reach: 500 mm J1+J2 (225+275 mm)
J3 (Z): 200 mm (170 Clean)Repeatability: J1 + J2: +/-0.020 mm
J3: +/-0.010 mm
J4: +/-0.010 degPayload (Kg): Max: 6 Kg
Rated: 2 KgCycle Time: 0.38 secsMaximum Operating Speed: J1 + J2: 6,150 mm/sec
J3: 1,100 mm/sec
J4: 2,000 deg/secOptional Arm Configurations: Mounting Type: Tabletop
Clean: ISO 4 CleanOther: Insertion Force: 100N (10.19 kgf)
U Inertia (Max/Rated): 0.12 / 0.01 kg*m2
Development Software: EPSON RC+ 7.0

Other Specifications:


Motor Wattage: J1: 200Watts
J2: 200 Watts
J3: 100 Watts
J4: 100 WattsUser Lines: Electric: 15 lines
Air: 6mm x 2, 4mm x 1Environmental: Temperature: 5- 40 deg C
Humidity: 10 - 80% (non condensing)Weight: 17 KgDimensions: Mounting Hole Footprint(mm): 150 x 150 (4-M8)
Z Axis Diameter: 20 mmRobot Cables: 3M (standard), 5M (optional), 10M (optional)

Options:


Robot Options: Vision Guide (CV2 or PV1)
DeviceNet, EtherNEt/IP, Profibus, EtherCat, CC-Link
Conveyor Tracking
Force SensingSoftware Options: .NET Support (EPSON RC+ 7.0 API)
GUI Builder
