Support Robots SCARA Robots SCARA GX Series Epson GX4 SCARA Robots

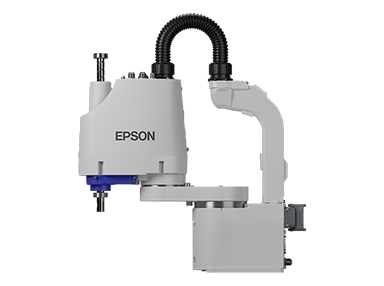

Epson GX4 SCARA Robots

Epson GX4 SCARA Robots
Model: RGX4-A251SSTSD Product Home

Epson GX4 SCARA Robots

GX4 Camera Bracket Drawings

Robot Model
Arm Length
(mm)
Z Axis Stroke
(mm)
Environment
Mounting
Curved Arm
Solidworks
STEP
DXF (2D)
GX4 SCARA (GX4-A251, GX4-A301, GX4-A351)
N/A
N/A
N/A
N/A
N/A
Solidworks STEP DXF (2D)

GX4-250mm CAD Drawings

Robot Model
Arm Length
(mm)
Z Axis Stroke
(mm)
Environment
Mounting
Curved Arm
Solidworks
STEP
DXF (2D)
GX4-B251C
250
120
Clean
Tabletop
Straight
Solidworks STEP
GX4-B251S
250
150
Standard
Tabletop
Straight
Solidworks STEP
GX4A-251C
250
120
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4A-251E
250
150
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4A-251S
250
150
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)

GX4-300mm CAD Drawings

Robot Model
Arm Length
(mm)
Z Axis Stroke
(mm)
Environment
Mounting
Curved Arm
Solidworks
STEP
DXF (2D)
GX4-B301S
300
150
Standard
Tabletop
Straight
Solidworks STEP
GX4-B301SM
300
150
Standard
Multiple
Straight
Solidworks STEP
GX4A-301C
300
120
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4A-301CM
300
120
Clean
Multiple
Straight
Solidworks STEP
GX4A-301E
300
150
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4A-301EM
300
150
ESD
Multiple
Straight
Solidworks STEP
GX4A-301S
300
150
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4A-301SM
300
150
Standard
Multiple
Straight
Solidworks STEP

GX4-350mm CAD Drawings

Robot Model
Arm Length
(mm)
Z Axis Stroke
(mm)
Environment
Mounting
Curved Arm
Solidworks
STEP
DXF (2D)
GX4-A351C
350
120
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4-A351CL
350
120
Clean
Tabletop
Left
Solidworks STEP
GX4-A351CM
350
120
Clean
Multiple
Straight
Solidworks STEP
GX4-A351CR
350
120
Clean
Tabletop
Right
Solidworks STEP
GX4-A351EL
350
150
ESD
Tabletop
Left
Solidworks STEP
GX4-A351EM
350
150
ESD
Multiple
Straight
Solidworks STEP
GX4-A351ER
350
150
ESD
Tabletop
Right
Solidworks STEP
GX4-A351S
350
150
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4-A351SL
350
150
Standard
Tabletop
Left
Solidworks STEP
GX4-A351SM
350
150
Standard
Multiple
Straight
Solidworks STEP
GX4-A351SR
350
150
Standard
Tabletop
Right
Solidworks STEP
GX4-B351C
350
120
Clean
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4-B351CM
350
120
Clean
Multiple
Straight
Solidworks STEP DXF (2D)
GX4-B351S
350
150
Standard
Tabletop
Straight
Solidworks STEP DXF (2D)
GX4-B351SM
350
150
Standard
Multiple
Straight
Solidworks STEP DXF (2D)
GX4A-351E
350
150
ESD
Tabletop
Straight
Solidworks STEP DXF (2D)

Brochures and Whitepapers

Epson GX4 SCARA Robot Spec Sheet
PDF
Epson Robots Product Specifications Catalog
PDF
Epson Robots Product Specifications Catalog - Spanish
PDF
Epson Robots Product Specifications Catalog - Portuguese
PDF

Manuals

Epson GX series SCARA Robot Manual (Revision 11)
PDF
Epson GX series SCARA Robot Manual (Revision 11) - French
PDF
Epson GX series SCARA Robot Manual (Revision 11) - Spanish
PDF
Epson GX series SCARA Robot Manual (Revision 11) - Português
PDF
Epson RC700D Controller Manual (Revision 5)
PDF
Epson Robot System Safety Manual (Revision 4) - Spanish
PDF
Epson Robot System Safety Manual (Revision 4) - (Portuguese)
PDF
Epson Robot System Safety Manual (Revision 7)
PDF

Epson Robotics Technical Support and Training Contacts


Epson Robot Customer Service:

Hours: 6:00 am 4:30 pm (PT)

Phone: +1 (562) 290-5920

Email Customer Service


Epson Robot Application Support:

Hours: 8:00 am 5:00 pm (PT)

Phone: +1 (562) 290-5930

Email Application Support


Epson Robot Training Class Registration:

Phone: +1 (562) 290-5930

Email Class Registration
