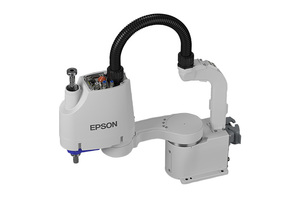

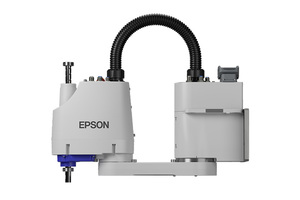

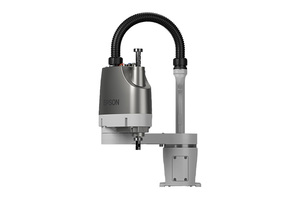

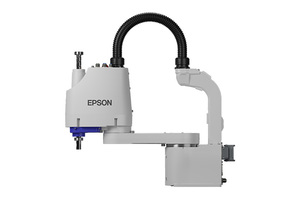

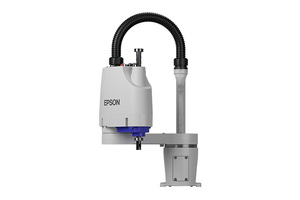

GX4 SCARA Robot - 350mm

Contact Us

562-290-5910

Epson GX. Taking SCARA robot performance to the next level.

Introducing the GX4, part of Epson’s new high-power-density SCARA robot lineup. The GX4 builds upon 40 years of expertise to deliver next-level performance and flexibility in a compact footprint. A breakthrough in productivity, the GX4 uses advanced Epson GYROPLUS technology to provide fast production speeds and smooth motion control, all with higher payloads.

Engineered to meet your unique automation needs, the GX4 offers multiple arm configurations and a 250-350 mm reach to accomplish the most demanding tasks—including assembly, pick and place, and other intricate small-parts handling—with ultra high precision. Its innovative slimline design easily integrates into Cleanroom and ESD environments and quickly handles payloads up to 4 kg from a conveniently small form factor. Designed for ease of use, Epson RC+® software works seamlessly with the GX4 to create powerful automation solutions and offers integrated options to simplify the most complex applications. Plus, with battery-less encoders, a built-in Ethernet cable and other useful features, it supports a remarkably low total cost of ownership.

      • Ultra high performance and flexibility
      • Handles high payloads from a small footprint
      • Fast cycle times, smooth motion and fast settling times
      • Epson RC+ software helps create powerful automation solutions
      • Advanced Epson GYROPLUS vibration reduction system
      • Table, Wall, and Ceiling Mount Models

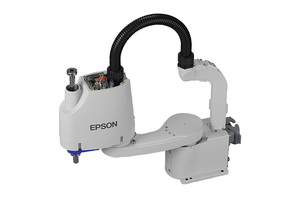

      • Unique Curved Arm Option
      • Also available in 250mm and 300mm arm lengths
  • Ultra high performance and flexibility — high throughput with large payloads to accomplish the most demanding high-tech, small-parts assembly needs
  • Unique high-power-density SCARA — innovative, slimline design handles heavy workloads at fast speeds, all in a small footprint
  • Fast cycle times — higher acceleration compared to prior generations, smooth motion and fast settling times help maximize throughput for high-precision applications
  • Ultimate ease of use — intuitive and feature-packed Epson RC+ development software helps create powerful solutions with a simple user interface, integrated debugger and advanced 3D simulator
  • Low residual vibration — fast settling times with proprietary Epson GYROPLUS vibration reduction system and rigid arm design, plus no ringing or overshoot
  • Low total cost of ownership — includes battery-less encoders, a built-in Ethernet cable and Epson RC+ software with no recurring license fee
  • Optimized footprint — multiple mount and cable bottom exit options; 250, 300 and 350 mm reach available; unique curved arm (350 mm) option maximizes work envelope
  • Built for demanding environments — Standard, Cleanroom (ISO3) and ESD, and new standalone ESD models available
  • Advanced integrated options — Vision Guidance, Parts Feeding, Force Guidance, Conveyor Tracking, Fieldbus, Euromap67, API.NET and Arm Length Calibration

What's in the box:

  • GX4 robot
  • RC700-D controller
  • Epson RC+ software
  • E-stop unit with cable
  • Connector set (I/O, and safety circuit connectors)

Core Specifications:


Arm Length / Reach: 350 mmRepeatability: J1 + J2: ± 0.010 mm
J3: ± 0.01 mm
J4: ± 0.005 degPayload (Kg): Rated: 2 kg
Max: 4 kgCycle Time: 0.35 sec1Motion Range: Straight
J1: Tabletop: ± 140 deg; Multiple: ± 120 deg
J2 Std: ± 142 deg
J2 Clean: ± 142 deg

Curved (Tabletop)
J1 Right Hand: -110 ~ 165 deg
J1 Left Hand: -165 ~ 110 deg
J2 Right Hand Std & ESD: -120 ~ 165 deg
J2 Right Hand Clean: -120 ~ 160 deg
J2 Left Hand Std & ESD: -165 ~ 120 deg
J2 Left Hand Clean: -160 ~120 deg

All Models
J3 Std & ESD: 150 mm
J3 Clean: 120 mm
J4: ± 360 degAllowable Moment of Inertia: Rated2: 0.005 kg·m2
Max2: 0.05 kg·m2Brakes: Z axis onlyOther: J3 Downforce: 150 N

Other Specifications:


Controller: RC700-DUser Lines: Electric: 15-pin (D-sub), 8-pin (RJ45 Cat 5e)
Pneumatic: ø6 mm x2, ø4 mm x1Weight: Tabletop: 16 kg, 35 lb; Multiple: 17 kg, 38 lbRobot Cables: 3 m/5 m/10 m Straight and Angled Cable End OptionsSafety Regulations: CE Marking, UL1740 (optional)Power: AC 200 - 240 V (single phase)Power Consumption: 1.2 kVaInstallation Environment: Standard/ESD/Cleanroom ISO3 & ESD

Notes:

1 Cycle time based on round-trip arch motion (300 mm horizontal, 25 mm vertical) with 2 kg payload of table top model boost mode (path coordinates optimized for maximum speed).
2 When payload center of gravity is aligned with Joint #4; if not aligned with Joint #4, set parameters using INERTIA command.
3 Complies with ISO Class 3 (ISO 14644-1) and Fed-std209D Class 1 (less than 10 0.1μm particles per 28,317 cm3:1cft) cleanroom standards.
