Certified ReNew Projectors for Work BrightLink 455Wi Interactive Projector with RM Easiteach Software
Discontinued

BrightLink 455Wi Interactive Projector with RM Easiteach Software

Zoom In
BrightLink 455Wi Interactive Projector with RM Easiteach Software
BrightLink 455Wi Interactive Projector with RM Easiteach Software

The Ultimate Interactive Package for Educators.

In the past, you needed a projector and an interactive whiteboard to create an interactive learning environment. Now, make a table1 or almost any wall interactive with the BrightLink 455Wi Interactive Projector. This high-performance projector + pen combination integrates interactive functionality in one machine, without the constraints or expense of an interactive whiteboard. With ultra-short throw distance, extraordinary size flexibility, and fully-loaded projector technologies, BrightLink redefines a true all-in-one solution able to engage your learning community.

    • Projection System: Epson 3LCD, 3-chip optical engine
      Native Resolution: 1280 x 800 (WXGA)
      Brightness: 2500 lumens1
  • Model: V11H440020RM
Find Accessories Support


IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • BrightLink 455Wi interactive projector
  • Projector mount
  • Projector template sheet
  • Installation guide
  • Quick users guide
  • Power cable (5 m, 16.4')
  • USB A/B cable (5 m, 16.4')
  • Computer/VGA cable (4.5 m, 15')
  • User manual
  • Interactive driver
  • Interactive software
  • Pen tray
  • Network software
  • RM Easiteach software
  • Projector remote control with batteries
  • Two (2) interactive pens with four rechargeable batteries
  • Battery charger
  • PrivateLine support card
  • Epson Road Service Program
  • Password protection sticker

Specifications Projector:

Projection System: Epson 3LCD, 3-chip optical engineProjection Method: Front / rear / downward / wall mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 1,024,000 dots (1280 x 800) x 3Color Brightness - Color Light Output: 2500 lumens1White Brightness - White Light Output: 2500 lumens1 (ISO 21118 Standard)Aspect Ratio: 16:10 (native), 16:9, 4:3, 5:4Resolution: 1280 x 800 (WXGA)Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (SXGA1), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1280 x 768 (WXGA60-1), 1360 x 768 (WXGA60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+)Lamp Type: E-TORL™ 230 W UHELamp Life:
  • ECO mode: Up to 3500 hours2
  • Normal mode: Up to 2500 hours2
Throw Ratio Range:
  • 0.37' – 0.50' (16:10)
  • 0.37' – 0.50' (16:9)
  • 0.44' – 0.59' (4:3)
    • Size - projected distance:
    • 59" – 96" WXGA
    • 55" – 85" XGA
    Keystone Correction: Vertical: ±5 degreesUSB Plug 'n Play: USB Plug 'n Play for Windows® 2000 or later and Mac OS® X 10.5.1 or laterContrast Ratio: Up to 2000:1Color Reproduction: 16.77 million colors

General:

Temperature: 41° to 95° F (5° to 35° C)Weight:
  • Without slide plate: 12.9 lb
  • With slide plate: 14.1 lb
Security:
  • Kensington®-style lock provision
  • Security anchor (metal) bar
  • Password protection function

Projection Lens:

Type: Manual focusF-number: 1.80Focal Length: 4.68 mmZoom Ratio: Digital zoom 1.0 – 1.35x

Projector Details:

Display Performance:
  • NTSC: 560 lines
  • PAL: 560 lines
    • (Depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • HDTV: 720p, 1080i / SDTV: 480p, 576p / TV525i: 480i / TV625i: 576i
Interfaces:
  • Computer/Component video: D-sub 15 pin x 2
  • S-video: Mini DIN x 1
  • Composite video: RCA x 1
  • Audio in x 3: RCA (L&R) x 1, mini stereo x 2
  • Microphone in x 1
  • Variable audio out: mini stereo x 1
  • LAN networking: RJ-45 x 1
  • Serial: RS-232c x 1
  • Monitor out: D-sub 15 pin x 1
  • USB Type B x 1 (USB display, interactive pen)
  • USB Type A x 1 (USB memory device)
  • Wireless port 802.11 a/b/g (optional module sold separately)3
Interactivity:
  • Input device: Digital pen (two included)
  • Pen technology: Infrared, 940 nanometer
  • Input: Single user
  • Required software: Easy Interactive Driver
  • Driver compatibility: Windows 2000 SP4 or later, XP SP2 or later, XP Tablet, Vista4, 74, Macintosh 10.3.X or later
  • Optional software: Easy Interactive Tools
Speaker: 12W monauralFan Noise:
  • ECO mode: 28 dB
  • Normal mode: 35 dB

Projector Dimensions:

Excluding feet: 14.5" x 19.0" x 6.1" (W x D x H)

Remote Control:

Features: Source search, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, help, auto, enter, escOperating Distance: 19.7' (6 m)Operating Angle:
    Rear:
  • Right / Left: ±55 degrees
  • Upper / Lower: +75 to +15 degrees
    Front:
  • Right / Left: ±30 degrees
  • Upper / Lower: 0 to +60 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode: 363 W
  • Network on: 10 W standby
  • Network off: 0.3 W standby
  • Direct power on/off
  • Instant off
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:



Specifications Notes:
1 Light output varies depending on modes (color and white light output). White light output meaured using ISO 21118 standard.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

3 When used with the BrightLink Interactive projector, the Wireless 802.11g/b/a adapter allows for wireless network connection and management of the projector. Use of the BrightLink USB cable is still required for interactive functionality.

4 32 and 64 bit

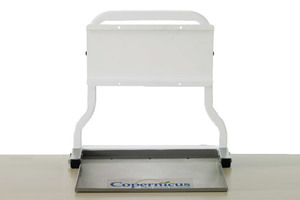

Interactive table mount sold separately.
