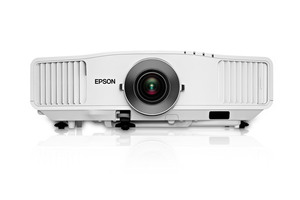

PowerLite 4100 XGA 3LCD Projector

Brilliant Quality. Easy Installation Features.

Engineered for easy installation, the Epson PowerLite 4100 offers a flexible solution for any classroom or boardroom. Featuring 4500 lumens of color brightness (color light output)¹ and 4500 lumens of white brightness (white light output)¹, plus XGA resolution, this powerful performer ensures amazing presentations maintenance features. With one-touch filter removal and easy side lamp access, it offers a low cost of ownership and added peace of mind. It even includes a closed captioning decoder, so there are no added costs to accommodate those with hearing impairments. The Epson PowerLite 4100 is ideal for both executive boardrooms and educational institutions, with value, power and performance for all your presentation needs.

3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 4500 lumens of color brightness¹ and 4500 lumens of white brightness¹, the PowerLite 4100 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Model: V11H380020

Find Accessories Support

Overview

3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite 4100 has:
Network-ready — RJ-45 LAN connection with monitor and control capabilities
Easy installation — horizontal / vertical lens shift, centered lens design, 1.8x zoom lens andQuick Corner® allow for flexible room placement and easy image adjustments at setup

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

Epson PowerLite 4100 Projector

Specifications

Specifications Projector:

Projection System: High-aperture Epson 3-chip 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 pixel (1024 x 768) x 3 LCDsColor Brightness - Color Light Output: 4500 lumens¹White Brightness - White Light Output: 4500 lumens¹Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1024 x 768 (XGA)Lamp Type: 275 W UHELamp Life:

Normal mode: Up to 2000 hours²
ECO mode: Up to 3000 hours²

Brightness Uniformity: 89%Pixel Arrangement: Cross stripeThrow Ratio Range: 1.3 – 2.36Size - projected distance: 30" – 300"Keystone Correction:

Horizontal: ±20 degrees
Vertical: ±40 degrees

Contrast Ratio: High Brightness, Dynamic Mode: Up to 1000:1Color Reproduction: 16.7 million colors

Effective Scanning Frequency Range:

Pixel Clock, Horizontal, Vertical:

Pixel Clock

13.5 MHz – 162 MHz (up to UXGA 60 Hz)

Horizontal

15 KHz – 92 KHz

Vertical

50 Hz – 85 Hz

General:

Temperature: 32° to 104° F (0° to 40° C)Weight: 15 lbSecurity:

Kensington® lock provision
Security cable hole
Lens lock

Projection Lens:

Type: Manual focus / Zoom (lens included)F-number: 1.65 – 2.55 (standard lens)Focal Length: 21.28 mm – 37.94 mm (standard lens)Zoom Ratio: Optical zoom 1.0 – 1.8 (standard lens)Lens Shift:

Horizontal: ±10 degrees
Vertical: ±50 degrees

Projector Details:

Display Performance:

NTSC: 560 line
PAL: 560 line

Input Signal:

NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Pixel works: video chip
3D Y/C separation, noise reduction motion compensated
Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)

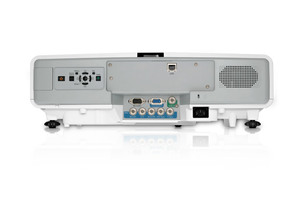

Interfaces:

Computer: mini D-sub HD 15 pin x 2
Composite video BNC x 1
Video: 5-BNC x 1
Network: RJ-45 x 1 100Mbps
Serial: RS-232c x 1

Fan Noise:

ECO Mode: 28 dB
Normal Mode: 33 dB

Projector Dimensions:

Including feet: With standard lens: 18.50" x 12.26" x 5.96" (W x D x H)Excluding feet and lens: 18.5" x 12.26" x 5.31" (W x D x H)

Remote Control:

Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, num, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:

Right / Left:

Front: ±60 degrees
Rear: ±30 degrees

Upper / Lower:

Front: ±20 degrees
Rear: +10 to +45 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:

Normal mode: 390 W
ECO mode: 323 W
Communication on: 10 W standby
Communication off: 0.38 W standby

See Full Specs Hide Full Specs

Print All Specs

Accessories

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Epson projectors have 3x Brighter Colors than their leading competitive 1-chip DLP business and education projectors. Competitive projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
