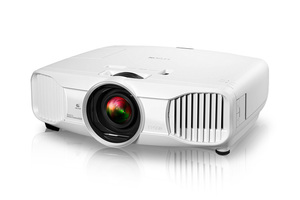

PowerLite Home Cinema 5025UB 2D/3D 1080p 3LCD Projector

The 2D, 3D, 1080p home theater projector for amazing cinematic adventures.

Enjoy extraordinary home theater entertainment with the Home Cinema 5025UB, delivering amazing 2D and 3D, Full HD 1080p performance. Offering up to 3x Brighter Colors^* than competitive models, Epson 3LCD projectors ensure sharp, vivid images. With 2200 lumens of color brightness and 2200 lumens of white brightness¹, the 5025UB gives you bright, larger-than-life adventures. Featuring a contrast ratio up to 600,000:1 and Super-resolution technology, this powerful projector is sure to captivate any audience. THX display certification ensures exceptional image quality. And, with a wide horizontal lens shift and 2.1x zoom ratio, installation is easy in any setting.

Up to 3x Brighter Colors with Epson^*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have up to 3x Brighter Colors than leading competitive projectors.^* Delivering 2200 lumens of color brightness¹ and 2200 lumens of white brightness¹, the PowerLite Home Cinema 5025UB uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Model: V11H585120

Find Accessories Support

Overview

Up to 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology^*
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite Home Cinema 5025UB has:
Widescreen Full HD 1080p — up to 300" on virtually any wall or screen
Extraordinary clarity and detail — up to 600,000:1 contrast ratio, plus Super-resolution technology
Positioning flexibility — 2.1x zoom and the widest horizontal lens shift available make it easy
Exceptional video quality — THX certification ensures extraordinary image quality
Eye-popping entertainment — enjoy 3D adventures right at home (3D glasses sold separately)
Amazing picture uniformity and bright, vivid color — Fujinon® lens and built-in cinema filter
Versatile connectivity — two HDMI ports, RS-232c, Trigger out, and more
Outstanding support — two-year limited warranty and toll-free support

Eco Features

RoHS compliant
Recyclable product²
Epson America, Inc. is a SmartWay™ Transport Partner³

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

PowerLite Home Cinema 5025UB Projector
Power cord
Two HDMI cable clamps
Remote control with AA batteries
CD ROM with user guide link
Quick Setup Guide

Specifications

Specifications Projector:

Projection System: Epson 3LCD, 3-chip optical engineProjection Method: Front / Rear / Ceiling mountDriving Method: Epson Poly-silicon TFT Active Matrix, 0.74-inch wide panel with MLAPixel Number: 2,073,600 dots (1920 x 1080) x 3Color Brightness - Color Light Output: 2200 lumens¹White Brightness - White Light Output: 2200 lumens¹Aspect Ratio:

Native 16:9 widescreen
Compatible with 4:3

Resolution: Native 1080p (1920 x 1080)Resize: 16:10, 4:3Lamp Type: 230 W UHELamp Life:

ECO mode: Up to 5000 hours²
Normal mode: Up to 4000 hours²

Throw Ratio Range: 1.34 – 2.87Size - projected distance: 30" – 300" (Zoom: Wide and Zoom: Tele)Keystone Correction: Vertical: ±30 degrees (Manual)Contrast Ratio: Up to 600,000:1Color Processing: Full 10-bit (Partial 12-bit)Color Reproduction: Up to 1.07 billion colorsProjected Output: HD, 2D, 3D, 1080p

General:

Weight: 18.4 lbSecurity: Kensington® Security Lock PortCase Color: White and Black

Projection Lens:

Type: Manual focus / Optical zoomF-number: 2.3 – 3.6Focal Length: 22.5 mm – 47.2 mmZoom Ratio: 1.0 – 2.1Lens Shift:

Vertical: ±96.3
Horizontal: ±47.1

Lens Cover: Powered, Slide Lens Shutter

Other Home Projector:

Cinema Filter: Automatically adjusts to color mode;
(On: Natural/THX/Cinema/B&W Cinema;
Off: Dynamic/Living Room/3D Dynamic/3DCinema/3D THX)Auto Iris: Automatically adjusts to video source;
Off/On: High-speed or Normal, 2D and 3D modeSuper Resolution: 2D and 3DTerminal Inputs:

2 HDMI
1 RS-232c
1 RCA (composite)
3 RCA (component)
1 VGA D-sub 15 pin (computer input)

Terminal Outputs:

Trigger On/Off (3.5 mm stereo jack)
12 VDC 200 mA (max.)

Computer Compatibility: PC, Mac®

Projector Details:

Display Performance: 1920 x 1080 native (1080p); HD, 2D, 3D, 2D to 3D conversionColor Modes:

2D: Dynamic, Living room, Natural, THX, Cinema, B&W cinema
3D: Dynamic, Cinema, THX

Input Signal:

Composite: NTSC / NTSC4.43 / PAL / M-PAL /N-PAL / PAL60 / SECAM
Component: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
HDMI: TMDS

Fan Noise: 22 dB – 32 dB

Projector Dimensions:

Including feet: 18.34" x 15.5" x 6.2" (W x D x H)Excluding feet: 18.34" x 15.6" x 5.5" (W x D x H)

Remote Control:

Features: Front and rear directionalOperating Distance: 32 feet (10 meters)Operating Angle:
Front: Right/Left: ± 30 degrees, Upper/Lower: ± 30 degrees
Rear: Right/Left: ± 30 degrees, Upper/Lower: + 10 – + 70 degrees

See Full Specs Hide Full Specs

Print All Specs

Accessories

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

^* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec. 2015 through Nov. 2016.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² For convenient and reasonable recycling options, visit www.epson.com/recycle

³ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

²Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Epson Home Entertainment projectors have up to 3x Brighter Colors than their leading competitive 1-chip DLP projectors (720p and 1080p). Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014.
