For Home Projectors Pro Cinema Pro Cinema 4040 3LCD 4Ke Projector
Discontinued

Pro Cinema 4040 3LCD Projector with 4K Enhancement and HDR

The Elite 4Ke Home Theater Projector Delivering Pro-Level Performance.

Engineered for colour-rich performance, the Pro Cinema 4040 offers elite projection capabilities. Epson® PRO-UHD™ 3LCD home theater projectors deliver a groundbreaking combination of colour, contrast and resolution for the ultimate entertainment experience. Every detail comes alive with 4K Enhancement Technology1, which accepts 4K UHD content and upscales non-4K content. An advanced, 3-Chip, 3LCD design means no colour wheel, white segment or rainbow effect. With HDR102 and L*a*b* Ultra Wide Colour Gamut, movies look extraordinary. Plus, get 100% Balanced Colour Brightness, with 2,300 lumens equal colour/white brightness4, and a Rich Black contrast ratio up to 160,000:1.

    • Projection System: Epson 3LCD, 3-chip optical engine
      Native Resolution: 1080p (1920 x 1080) with 4K Enhancement1
      Color Brightness: 2300 lumens4
      White Brightness: 2300 lumens4
  • Model: V11H715020MB
REPLACEMENT PRODUCT :
Pro Cinema 4050 4K PRO-UHD Projector with Advanced 3-Chip Design and HDR
Pro Cinema 4050 4K PRO-UHD Projector with Advanced 3-Chip Design and HDR
Model: View Main Product Page Learn More
  • Epson PRO-UHD with 4K Enhancement Technology1 — accepts 4K UHD content and upscales non-4K content to deliver amazing lifelike images with resolution that exceeds Full HD
  • Advanced, 3-Chip, 3LCD Design — 3LCD technology ensures no colour wheel, no white segment and no rainbow effect
  • HDR102 High Dynamic Range and Rich Black Contrast — full 10-bit colour output and a contrast ratio up to 160,000:1 deliver an extraordinary range of colour and detail in both bright and dark scenes
  • L*a*b* Ultra Wide Colour Gamut — delivers 100% of the 3 dimensional DCI-P3 colour gamut3, the digital cinema standard, with 50% wider colour gamut than Rec. 709
  • 100% Balanced Colour Brightness — 2,300 lumens of equal colour and white brightness4 for vibrant, rich colour, even in rooms with ambient light
  • 3-Axis Precision Motorized E-Series Lens — state-of-the-art glass elements optimized for 4K content; with powered focus, 2.1x zoom, up to ± 96% vertical and up to ± 47% horizontal lens shift, and 10 preset positions
  • Delta Level Colour Accuracy — Low Delta E, for extremely accurate colour reproduction
  • Smooth, Crisp Images — with Image Enhancement and Frame Interpolation
  • Enhanced Dealer Kit — cludes mount, spare bulb and an extra 1-year warranty

Eco Features

  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWay™ Transport Partner6

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.ca/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Pro Cinema 4040 projector
  • Ceiling mount
  • Cable cover
  • Spare lamp
  • Power cord
  • Two HDMI cable clamps
  • Remote control with AA batteries
  • CD-ROM with user guide link
  • Quick Setup Guide

Specifications Projector:


Projection System: Epson 3LCD, 3-chip technologyProjection Method: Front / Rear / Ceiling mountDriving Method: Epson Poly-silicon TFT Active Matrix, 0.74-inch wide panelPixel Number: 2,073,600 dots (1920 x 1080) x 3Colour Brightness - Colour Light Output: 2300 lumens4White Brightness - White Light Output: 2300 lumens4Aspect Ratio: Native 16:9 widescreen (4:3 resize) Compatible with 4:3 with Normal, Full or Zoom ModesResolution: Native 1080p (1920 x 1080) with 4K Enhancement2Resize: 16:10, 4:3Lamp Type: 250 W UHELamp Life: Up to 5,000 hours (ECO Mode); up to 4,000 hours (Medium Mode); up to 3,500 hours (High Mode)7Throw Ratio Range: 1.35 – 2.84Size - projected distance: 50" – 300"Keystone Correction: Vertical: ±30 degrees (Manual)Contrast Ratio: Up to 160,000:1Colour Processing: Full 10-bit (partial 12-bit)Colour Reproduction: Up to 1.07 billion coloursProjected Output: HD, 2D, 3D, 1080p, 4K x 2K

General:


Weight: 24.3 lbSecurity: Kensington Security Lock PortCase Colour: Black

Projection Lens:


Type: Powered focus/optical zoom/lens positionF-number: 2.0 – 3.0Focal Length: 22.5 mm – 46.7 mmZoom Ratio: 1.0 – 2.1Lens Shift:
  • Vertical: ±96.3
  • Horizontal: ±47.1
Lens Cover: Powered, Slide Lens Shutter

Other Home Projector:


Cinema Filter:
  • Automatically adjusts to colour mode
  • On: Cinema, Digital Cinema
  • Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema
Auto Iris:
  • Automatically adjusts to video source
  • Off/On: High-speed or Normal, 2D and 3D mode
Super Resolution: 2D and 3DTerminal Inputs:

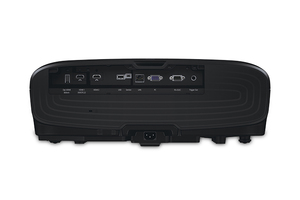

  • HDMI® x 1 (HDCP 2.2)
  • HDMI x 1 (HDCP 1.4)
  • USB x 2 (service only)
  • Mini USB x 1 (service only)
  • LAN x 1 (RJ45)
  • Computer/D-sub 15 pin x 1
  • RS-232c x 1
Terminal Outputs: Trigger out 12 V DC, 200 mA maximumComputer Compatibility: PC, Mac®

Parental Controls:


Power Button Lock: Power Button Lock hinders projector from being turned on without parental supervision

Projector Details:


Display Performance:
  • HDR, DCI colour gamut, 4K x 2K native (2D only)
  • 1080p; HD, 2D, 3D, 2D-to-3D conversion, Picture in Picture (2D only)
  • Frame Interpolation (1080p, 24 Hz)
Colour Modes:
  • 2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema
  • 3D: Dynamic, Cinema
Input Signal:
  • 480i , 576i, 480p, 576p, 720p, 1080i, 1080p, 4K x 2K
  • HDMI: TMDS
Fan Noise: 20 dB – 31 dB

Projector Dimensions:


Including feet: 20.5" x 17.7" x 7.6" (W x D x H)Excluding feet: 20.5" x 17.7" x 6.7" (W x D x H)

Remote Control:


Features: Front and rear directionalOperating Distance: 32 feet (10 meters)Operating Angle:
Front: Right/Left: ± 30 degrees, Upper/Lower: ± 30 degrees
Rear: Right/Left: ± 30 degrees, Upper/Lower: + 10 – + 70 degrees

Power:


Power Consumption:
  • Lamp on 350 W, Lamp on (Eco) 280 W

Service Plans:

Notes:

1 4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D Mode.

2 HDR performance available with select devices. For more information, see www.epson.ca/hdrcompatibility

3 Entire DCI colour space can be displayed in Digital Cinema Mode only.

4 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

5 For convenient and reasonable recycling options, visit www.epson.ca/recycle

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

7 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
