OmniLink TM-H6000V Multifunction POS Printer

Contact Us 800.463.7766
Mon-Fri 6am-8pm, Sat 7am-4pm PT

Powerful multifunction POS printer for retail and financial services.

The OmniLink TM-H6000V multifunction POS printer from Epson features all the tools that growing businesses need. With dynamic multi-interface connectivity, it can be shared by mobile devices and legacy POS terminals. Designed for the cloud, the TM-H6000V helps businesses leverage printing from Web-based apps including online ordering services, so they’re ready for the ever-changing world of retail. Remote printer monitoring1 means less down time and an intuitive control panel provides clear error indications. The TM-H6000V also facilitates distributed proximity-based printing with Beacon2 and NFC3 technologies, and offers advanced paper-saving features.

  • Model: C31CG62032
  • Connect to multiple devices ― printer can be dynamically shared by legacy POS terminals, tablets and mobile devices, as well as cloud servers
  • Triple-interface connectivity to future-proof growing businesses ― maximum flexibility with three options, including built-in USB and Ethernet
  • Less down time ― remote monitoring of the printer’s status and part life expectancy1
  • Fewer service calls ― intuitive control panel with visual error notifications
  • Designed for the cloud ― supports printing from Web-based applications utilizing Epson's ePOS™ print technology; plus, utilize Server Direct Printing for online ordering support
  • Distributed proximity-based printing ― through Epson’s Beacon support using BLE (Bluetooth® Low Energy)2; and, through NFC (Near Field Communication) technology for easy pairing with mobile devices3
  • Advanced paper-saving functions for thermal receipts ― top-margin and character height reduction features help reduce paper usage by up to 47 percent4
  • Reliability ― printhead reliability of 200 km and extended auto cutter life of 3 million cuts5
  • Fast transaction times ― print speeds up to 350 mm/sec6, plus a high-speed auto cutter
  • Fast check processing ― high MICR reader accuracy of 99.9 percent

Eco Features

  • RoHS compliant
  • Recyclable product7
  • Epson America, Inc. is a SmartWaySM Transport Partner8

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • OmniLink TM-H6000V printer
  • Thermal roll paper (starter roll for testing)
  • Power switch cover
  • Connector cover
  • Set-up guide
  • Ribbon cassette: ERC-32(B)
  • Ribbon cassette: ERC-43(B) (models with Endorsement printing)
  • AC adapter and AC cord*
  • CD (drivers, utilities, and documentation)*
* May not be included depending on the model

Print Other:


Printing Technology:
  • Receipt: Thermal line printing
  • Slip / Endorsement: 9-pin serial impact dot matrix
Print Speed:
  • Receipt: Up to 350mm/sec6
  • Slip: Up to 5.7 lps (40 columns, 17.8 cpi)
  • Endorsement: Up to 4.0 lps

General:


Operating Systems: Microsoft® Windows 10, 8.1, 8.0, 7, Windows XP, Windows Vista®, Windows Server® 2012/2012 R2, 2008/2008 R2; WEPOS; POSReady; Red Hat® Enterprise Linux, OPEN SUSE®, CentOS®, Ubuntu®Dimensions: 7.32" x 10.95" x 7.13" (W x D x H)Weight: Approx. 9.7 lb (4.4 kg)Safety Approvals:
  • Device: WEEE, RoHS compliant
  • Control board:
    • EMC standards: FCC /ICES-003 class A
    • Safety standards: UL60950-1/CSA C22.2 No.60950-1
    • Radio standards: FCC/IC, CE marking, RE Directive
Case Color: Black (EBCK), White (ENN8.5)

Consumables:


Ribbon Life:
  • Slip: 4,000,000 characters
  • Endorsement: 3,000,000 characters
Inked Ribbon:
  • Slip: ERC-32B (black)
  • Endorsement: ERC-43B (black)

Print Fonts:


Print Fonts:
  • Receipt: 9 x 17 / 10 x 20 / 12 x 24
  • Slip: 5 x 9 / 7 x 9
  • Endorsement: 5 x 7
Column Capacity:
  • Receipt: 56 / 51 / 42 columns
  • Slip: 60 / 45 columns
  • Endorsement: 25 / 33 / 40 columns
Character Size:
  • Receipt: 0.99 x 2.4mm (W x H) / 1.27 x 2.82 (W x H) / 1.41 x 3.39mm (W x H)
  • Slip: 1.56 x 3.11mm (W x H) / 1.24 x 3.11mm (W x H)
  • Endorsement: 1.1 x 2.41mm (W x H)
Character Set: 95 Alphanumeric, 37 International, 128 x 11 Graphic (Receipt), 128 x 12 Graphic (Slip & Endorsement)Characters per Inch:
  • Slip : 13.3 cpi / 17.8 cpi
  • Endorsement: 21.2 cpi
Barcode:
  • Receipt & Slip: UPC-A, UPC-E, JAN 8 (EAN 8), JAN 13 (EAN 13), CODE 39, ITF, CODABAR, CODE 93, CODE 128, GS1-128, GS1 DataBar
  • Two-dimensional symbol (Receipt): PDF417, QR CODE, MaxiCode, Composite Symbology, Datamatrix, Aztec

Media Handling:


Thickness:
  • Receipt: 53 - 75 µm
  • Slip/Endorsement: 0.09 to 0.22mm
Media Dimensions:
  • Receipt: 79.5 ± 0.5 x diameter 83.0mm [3.13 ± 0.02 x diameter 3.27"], 57.5 ± 0.5 mm (W) × dia. 83.0 mm [2.26 ± 0.02 x diameter 3.27"]
  • Slip: Wide 68 – 230mm [2.7” – 9”], Length 68 – 297mm [2.7” – 11.7”]
Copy Capacity:
  • Slip: One original & three copies
  • Endorsement: One original & 2 copies

Connectivity:


Standard Connectivity:

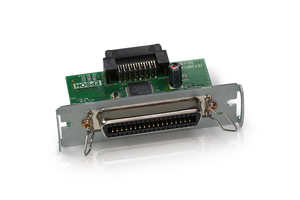

  • Built-in USB, Built-in Ethernet (10/100Base-T/TX) + UIB (Connect-It™ interfaces: Serial, Parallel, Powered USB), Bluetooth (dedicated model)
  • Wireless (USB wireless dongle): OT-WL05 (802.11 a/b/g/n) or OT-WL02 (802.11 b/g/n)
  • Beacon (using Bluetooth Low Energy): Beacon USB dongle2 (Epson-approved: Laird model BT820)
  • Printer Discovery: NFC (Near Field Communication)3, Simple AP (wireless network)
  • Communication Protocols: ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless)
Printing from a Mobile Device:
  • WiFi (802.11): iOS, Android™ and Windows® operating systems
  • Bluetooth: iOS, Android and Windows

POS Details:


Reliability:
  • Receipt
    • MTBF: 360,000 hours
    • MCBF:96,000,000 lines
  • Slip / Endorsement
    • MTBF: 180,000 hours
    • MCBF: 29,000,000 lines
  • Thermal Head Life
    • 200km5
  • Auto Cutter Life
    • 3,000,000 cuts5
Data Buffer: 45 bytes or 4 KBD.K.D.: 2 driversSoftware Included:
  • ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise
  • ePOS-Display
  • Server Collaboration: Server Direct Print, Status notification
Options:
  • Wireless USB dongles: OT-WL02, OT-WL05
  • Beacon USB dongle: BT820 (Laird)
  • 58 mm Paper guide: PG-58II
  • Power supply: PS-180

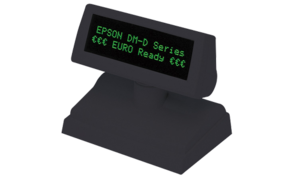

  • DM-D Pole (for displays): DP-502
  • Filler Plate: TA-6000II
  • Dongle Cover: OT-DC6000

Power:


Power Source: 24 VDC ± 7%Power Supply: PS-180 (option)

Notes:

1 Requires customization with third-party applications.

2 Requires the use of a beacon dongle connected to TM-H6000V printer via the USB-A port. Supports only Apple® iBeacon™ compliant format. The Epson-approved dongle is Laird model BT820.

3 NFC tag requires use of a device that includes an NFC reader, and may require additional software.

4 Paper savings depend on the text and graphics printed on the receipt.

5 Rated printhead and cutter lives based on use of the following media only, with printer operated at room temperature and normal humidity:

  • Model KT55FA: Papierfabrik August Koehler SE
  • Model PD160R: Oji Imaging Media Co., Ltd.
  • Model TF50KS-Y: NIPPON Paper Industries Co., Ltd.

6 Speed based on using 80 mm wide media only and Epson’s PS-180 power supply. Configurations not including the PS-180 will have a default print speed of 300 mm/sec.

7 For convenient and reasonable recycling options, visit www.epson.com/recycle

8 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
