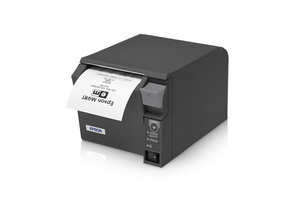

OmniLink TM-T70-i Intelligent Printer

The OmniLink™ TM-T70-i intelligent POS printer combines our space-saving, all front access TM-T70 printer with a retail-hardened PC and built-in web server. It supports web-based printing from virtually any mobile device, cloud-based services and interactive kiosk displays and is ideal for retailers looking for a flexible, mobile POS system.

Find Accessories Support View Service Plans

Overview

Printer with retail-hardened PC
Ethernet, optional Wireless-N connectivity
Supports web-based printing from virtually any mobile device
Add cloud services without need for legacy POS integration
4 USB ports for peripherals and video output
Print speeds up to 170mm/sec
Paper-saving features reduce paper usage up to 30%

Specifications

Print Other:

Printing Technology: Thermal line printingPrint Speed: 170mm/sec, (6.69"/sec)

General:

Server Systems: HTTP server (Apache)Dimensions: 4.92" x 7.64" x 4.49" (125 x 194 x 114 mm) (W x D x H)Weight: 3.97lb (1.8 kg)Safety Approvals: Safety standards: UL/CSACase Color: Epson Dark Gray (EDG)

Print Fonts:

Column Capacity: 42/56 columnsCharacter Size: 1.69 × 3.38 and 1.27 × 2.40 mm (W x H)Fonts: 9 x 17 and 12 x 24 dots/character (W x H)Character Set: 95 Character Alphanumeric, 48 CharacterInternational, 128 x 11 Pages GraphicBarcode:

6 one-dimensional
2 two-dimensional

Media Handling:

Media Dimensions: 3.13" ± 0.02" x 3.27" (79.5 ± 0.5(W) x 83mm)Paper Loading: 3.27" (83mm maximum)

Connectivity:

Standard Connectivity:

Ethernet interface (100 Base-TX / 10 Base-T)
USB 2.0 Type A (4x)
USB 2.0 Micro-AB
VGA x 1 (D-sub 15pin female)

Control Board:

Data Buffer: 4KB or 45 bytes selectable

Hardened PC:

Processor: Intel® Atom™ ARM9 Processor (400MHz)Interface:

USB 2.0 x 4, 100 Base-TX / 10 Base-T
Ethernet compliant interface
VGA x 1 (D-sub 15pin female)

System Memory: 256MBOperating System: Embedded Linux

POS Details:

Reliability:

MTBF: 360,000 hours
MCBF: 52,000,000 lines
Autocutter: 1.5 million cuts

D.K.D.: 2 driversSoftware Included: Intelligent software: WebPOS Configuration, ePOS-Device®Options: Autocutter, Near-end sensor

Power:

Power Consumption: Approx. 1.8A (mean)Power Source: 24 Volts DC
