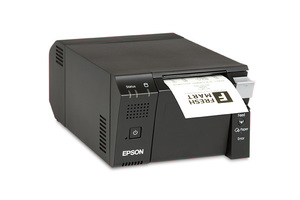

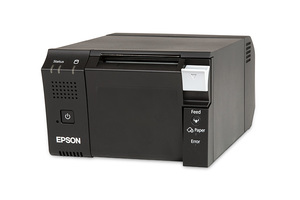

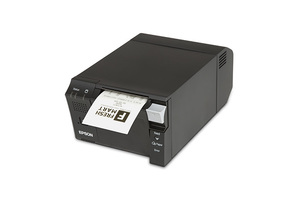

OmniLink TM-T70II-DT2 Thermal POS Printer with Integrated PC

High-performance front-facing all-in-one POS printer with integrated PC

A compact, all-in-one thermal POS printer with integrated PC, the OmniLink TM-T70II-DT2 enables users to deploy the latest POS applications, while taking up minimal counter space. Featuring a front-facing receipt printing and advanced connectivity to support a variety of POS applications, it was engineered to improve the customer experience. Housed in a sleek casing that takes up to 70 percent less space than traditional POS systems¹, the printer features options for built-in Windows^® or Linux operating systems powered by an Intel^® processor (Celeron^®, i3, i5) to deliver the performance needed to support the latest POS applications.

Request More Info

Find Accessories Support View Service Plans

OmniLink TM-T70II-DT2 Thermal POS Printer with Integrated PC

Request More Info

Overview
Specifications
Accessories
Service Plans
Support

Overview

All-in-one thermal POS printer — with integrated high-powered PC
Supports the latest operating systems — built-in Windows 10 or Linux OS
Compact design — takes up to 70 percent less countertop space than traditional POS systems¹
Convenient, front-facing controls — plus front receipt printing and paper loading
Intel processor — supports a variety of low- and high-powered processor options (Celeron, i3, i5)
Storage flexibility — SSD options (32GB, 64GB, 128GB, 256GB)

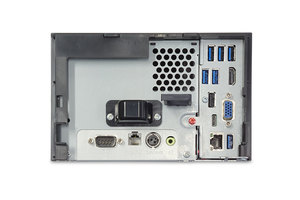

POS-peripherals future-proof connectivity — built-in USB 3.0 (x6), HDMI^® and USB Type C technology in addition to USB 2.0 (x1), Serial, VGA, Audio (x1) and cash drawer port
Fast receipt printing — speeds up to 250 mm/sec²
Advanced paper-saving functions — reduce paper usage by up to 30 percent³

What's in the box:

OmniLink TM-T70II-DT2 printer
Start Here
Roll paper guide
Roll paper
Recovery DVD (for Windows model)
Manual CD
Power switch cover
AC cable (depending on model)
AC adapter T1

Specifications

Print Other:

Printing Technology: Thermal line printingPrint Speed: Max. 9.84"/sec (250 mm)² graphics and text, 180 dpi

General:

Dimensions: 6.77" x 11.42" x 4.49" (172 x 290 x 114 mm) (W x D x H) inclusive of connector coverWeight: 6.17 lb (2.8 kg)Safety Approvals: EMI standards: FCC/ICES-003 Class A, Safety standards: UL 62368-1:2014, CAN/CSA C22.2 No. 62368-1-14, CB certification: IEC 62368-1:2014Warranty: 3-year limited warranty in the U.S. and CanadaGeneral: Case Color: Epson Black (EBCK)

Print Fonts:

Column Capacity: 80 mm: 42/56 columnsCharacter Size:

Font A: 1.25 x 3.00 (W x H mm)
Font B: 0.88 x 2.13 (W x H mm)

Fonts:

Font A (default): 12 x 24
Font B: 9 x 17 (including 2-dot horizontal spacing)

Character Set:

95 Alphanumeric
18 International
128 x 43 Graphic (including user-defined page)
Traditional/Simple Chinese
Thai

Barcode: UPC-A/E, CODE 39/93/128, EAN8/13, ITF, CODABAR 2D symbols: PDF417, QR-CODE, MaxiCode, Composite Symbology, GS1-128, GS1DataBar, Omnidirectional/Truncated/Limited/Expanded

Media Handling:

Width: 80 mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ± 0.5 (W) x 83 mm)
See epson.com/testedmedia for more information on Epson Tested Media.Thickness: 55 – 80 μm

Connectivity:

Standard Connectivity:

USB 3.0 (Type-A) x 6, USB 2.0 (Type-A) x 1, USB 2.0 (Type-C)
Ethernet x 1 (10/100/1000Base-T/TX/T)
VGA x 1 (D-sub 15pin female)
HDMI x 1
Line out x 1 (3.5 mm stereo mini jack) for external speaker output
Cash drawer x 1 (RJ12 6pin)
Serial x 1 (D-sub 9pin male)

Hardened PC:

Processor:

Intel Core i5-7300U 2.60 GHz
Intel Core i3-7100U 2.40 GHz
Intel Celeron 3965U 2.20 GHz

System Memory: 4.0GB DDR4-2133, SO-DIMMOperating System:

Windows 10 IoT Enterprise 2016 LTSB 64bit (Windows model)
Linux

Other:

Video Controller: Intel HD Graphics 620 (built into CPU)
Auxiliary Storage: SATAIII SSD M.2 type 2242 (32GB or more)
Device Control Software: ePOS-Device
Backup Battery: Backup RTC/CMOS by lithium primary battery
Sound Capability: Internal monaural speaker

POS Details:

Reliability:

MTBF
- Controller: 169,000 hours (excluding SSD, fan, and options)⁴
- Printer: 360,000 hours⁴
- AC adapter: 150,000 hours⁴
MCBF
- Printer: 65,000,000 lines⁴
- Thermal printhead life: 120 km⁴
- Auto cutter life: 1.7 million cuts⁴

D.K.D.: 2 driversOptions:

AC adapter T1
Printer affixing tape: DF-10
Customer displays: DM-D110 (part numbers: A61B133113, A61B133133), DM-D30 (part number: A61CF26111)

Power:

Power Consumption: 9.1 W (when not printing) / 78.9 W (when printing)Power Source: AC100 to 240 V / 50 to 60 Hz (dedicated AC adapter)

See Full Specs Hide Full Specs

Print All Specs

Accessories

DM-D70 Customer Display with 7-inch Color LCD and USB Connection

Displays

Service Plans

Support

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

¹ Based on W x D x H dimensions of POS systems; Toshiba Sure POS 500 models; Toshiba TCx models 360/370/380/740/780; Dell Optiplex 9020 – (MT).

² Speed based on using 80 mm wide media only.

³ Paper savings depend on the text and graphics printed on the receipt.

⁴ Epson’s statements about reliability levels are only estimates based on normal use of the printer using tested media only. See epson.com/testedmedia for more information on Tested Media. These reliability statements are not warranties of the media or Epson’s printers, and the only warranties for printers are the limited warranty statements for each printer.
