For Work POS System Devices POS Printers OmniLink TM-T88V-i VGA Intelligent Printer - Direct Connect

OmniLink TM-T88V-i VGA Intelligent Printer - Direct Connect

Contact Us

562-276-1314

Zoom In

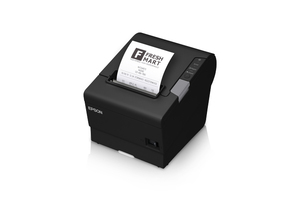

OmniLink TM-T88V-i VGA Intelligent Printer - Direct Connect
OmniLink TM-T88V-i VGA Intelligent Printer - Direct Connect

Epson's OmniLink TM-T88V-i combines our best-selling TM-T88V POS receipt printer with a retail-hardened PC and built-in web server to enable mobile POS deployments, cloud-based services and web-based POS. In addition, it provides the application power and flexibility to run a broad range of Point-of-Sale (POS) configurations.

Request More Info
Find Accessories Support View Service Plans
  • Printer with retail-hardened PC
  • Ethernet, optional Wireless-N connectivity
  • Supports web-based printing from virtually any mobile device
  • Add cloud services without need for legacy POS integration
  • 4 USB ports for peripherals and video output
  • Print speeds up to 300mm/sec
  • Paper-saving features reduce paper usage up to 30%

Print Other:

Printing Technology: Thermal line printingPrint Speed:
  • Max. 11.8"/sec (300mm) graphics and text
  • 2.4"/sec for ladder and 2D barcodes

General:

Server Systems: HTTP server (Apache)Dimensions: 5.71" x 7.68" x 5.83" (145 x 195 x 148 mm) (W x D x H)Weight: 3.5 lb (1.6 kg)Safety Approvals:
  • EMI standards: FCC/ICES-003 Class A
  • Safety standards: UL1950/CSA C22.2 No. 950
Case Color: Epson Dark Gray (EDG), Epson Cool White (ECW)

Print Fonts:

Column Capacity:
  • 80mm: 42/56 columns
  • 58mm model: 30/40 columns
Character Size:
  • Font A: 1.41 x 3.39
  • Font B: 0.99 x 2.40 (W x H mm)
Fonts:
  • Font A (default): 12 x 24
  • Font B: 9 x 17 (including 2-dot horizontal spacing)
Character Set: 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page), Traditional/Simple Chinese, Thai, Japanese, KoreanBarcode: UPC-A/E, CODE 39/93/128, EAN8/13, ITF, CODABAR 2D symbols: PDF417, QR-CODE, MaxiCode, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional/Truncated/Limited/Expanded

Media Handling:

Thickness: 55 – 80 µmMedia Dimensions:
  • 80mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ± 0.5 (W) x 83mm)
  • 58mm: 2.26" ± 0.02" x 3.27" diameter (57.5 ± 0.5 (W) x 83mm)

Connectivity:

Standard Connectivity:
  • Ethernet interface (100 Base-TX / 10 Base-T)
  • USB 2.0 Type A (4x)
  • USB 2.0 Micro-AB
  • VGA x 1 (D-sub 15pin female)

Control Board:

Software: Intelligent software: WebPOS Configuration, ePOS-Device®

Hardened PC:

Processor: ARM9 Processor (400MHz)Interface:
  • USB 2.0 x 4
  • 100 Base-TX / 10 Base-T Ethernet-compliant interface
  • VGA x 1 (D-sub 15pin female)
System Memory: 256MBOperating System: Embedded Linux

POS Details:

Reliability:
  • MTBF: 360,000 hours
  • MCBF: 70,000,000 lines
  • Autocutter: 2 million cuts
Data Buffer:
  • Receive: 45 bytes or 4KB, selectable
  • user-defined: 12KB
  • macro: 2KB
  • NV graphics: 256KB
  • NV user: 1KB
  • page mode area: 106K
D.K.D.: 2 driversSoftware Included: Drivers and setup utility are available on CD or atpos.epson.comOptions: Autocutter, Near-end sensor

Power:

Power Consumption: Operating: approx. 1.8 A (mean)Power Source: 24 VDC ± 7%
