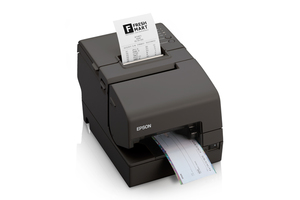

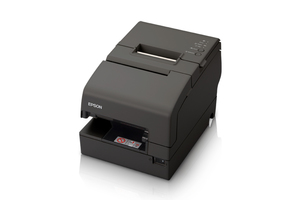

TM-H6000IV Multifunction Printer with Validation

The TM-H6000IV is a high-performance multifunction Point-of-Sale (POS) printer with fast receipt printing, drop-in validation for deposit slips, checks, cashier checks and batch tickets, high-resolution graphics, superior slip handling, the highest reliability in its class and the industry’s leading MICR accuracy.

REPLACEMENT PRODUCT :
OmniLink TM-H6000V Multifunction POS Printer
OmniLink TM-H6000V Multifunction POS Printer
Model: View Main Product Page Learn More
  • Fastest printing in its class up to 300mm/second
  • Fastest check transaction speed in its class with Epson's QuickPass technology
  • 99.9% MICR accuracy; a leader in the industry
  • Best-in-class reliability with MCBF of 96 million lines
  • Superior slip handling with built-in forms stopper
  • High-resolution graphics with no processing delay
  • Ease-of-use features including drop-in paper loading, autocutter and status LEDs
  • Low power consumption and print options to reduce paper usage
  • Compact, durable design with reduced footprint

What's in the box:

  • TM-H6000IV Multifunction Printer with Validation
  • Ribbon cartridge (ERC-32)
  • Ribbon cartridge (ERC-43) — endorsement models only
  • Cable connector cover
  • AC adapter w/AC cord (ENERGY STAR® SKUs)
  • User‘s manual
  • Sample roll paper
  • Power switch cover

Print Other:


Printing Technology:
  • Receipt: Thermal line printing
  • Slip: 9-pin serial impact dot matrix
  • Endorsement: Serial impact
Print Speed:
  • Receipt: Up to 300mm/sec (94 lps, [1/8"] conversion)
  • Slip: Up to 5.7 lps (40 columns, 17.8 cpi)
  • Endorsement: Up to 4.0 lps

General:


Operating Systems: Microsoft® Windows® 7, 2008, 2000, XP, Vista; WEPOS; POSReadyDimensions: 7.32 x 10.95 x 7.13" (W x D x H)Weight: Approx. 4.4 kg (9.7 lbs)Safety Approvals:
  • Device: WEEE, RoHS compliant
  • Control board:
    • EMI standards: FCC part 15B subpart B Class A; CAN/CSA-CEI/IEC CISPR 22 Class A
    • Safety standards: UL60950-1; CAN/CSA C22.2 No.60950-1

Consumables:


Ribbon Life:
  • Slip: 4,000,000 characters
  • Endorsement: 3,000,000 characters
Inked Ribbon:
  • Slip: ERC-32B (black)
  • Endorsement: ERC-43B (black)

Print Fonts:


Column Capacity:
  • Receipt: 56 / 42 columns
  • Slip: 60 / 45 columns
  • Endorsement: 40 columns
Character Size:
  • Receipt: 0.99 x 2.4mm (W x H) [1.41 x 3.39mm (W x H)]
  • Slip: 1.56 x 3.1mm (W x H) [1.24 x 3.1mm (W x H)]
  • Endorsement: 1.1 x 2.42mm (W x H)
Fonts:
  • Receipt: 9 x 17 / 12 x 24
  • Slip: 5 x 9 / 7 x 9
  • Endorsement: 5 x 7
Character Set: 95 Alphanumeric, 37 International, 128 x 12 Graphic, Simplified and Traditional ChineseBarcode: UPC-A, UPC-E, JAN 8 (EAN 8), JAN 13 (EAN 13), CODE 39, ITF, CODABAR, CODE 93, CODE 128, GS1-128, GS1 DataBar, PDF417, QR CODE, MaxiCode, Composite Symbology

Media Handling:


Thickness:
  • Receipt: 0.06 to 0.09mm
  • Slip: 0.09 to 0.47mm
  • Endorsement: 0.09 to 0.2mm
Media Dimensions:
  • Receipt: 79.5 ± 0.5 x diameter 83.0mm[3.13 ± 0.02 x diameter 3.27"]
  • Slip: 70 to 148 x 150 to 210mm [2.76 to 5.82 x 5.91 to 8.27"]
Copy Capacity:
  • Slip: One original & three copies
  • Endorsement: One original single-ply & 2 copies

Connectivity:


Standard Connectivity: USB / Ethernet / RS-232C / Bi-directional parallel /Connect-It™

POS Details:


Reliability:
  • Receipt
    • MTBF: 360,000 hours
    • MCBF:96,000,000 lines
  • Slip
    • MTBF: 180,000 hours
    • MCBF: 29,000,000 lines
  • Endorsement
    • MTBF: 180,000
    • MCBF:3,000,000 characters
Data Buffer: 45 bytes or 4 KB (up to 384 KB for graphic files)D.K.D.: 2 driversOptions: Endorsement printer, validation printer, 58mm width paper guide, DM attachment, connector cover

Power:


Power Source: 24 VDC ± 7%
