For Work Projectors Classroom PowerLite W16SK 3D 3LCD Dual Projection System
Discontinued

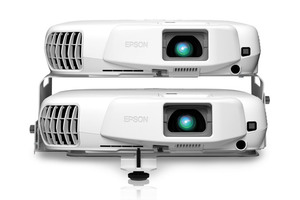

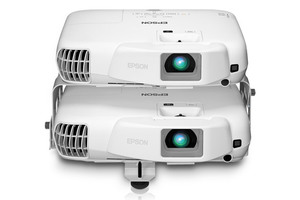

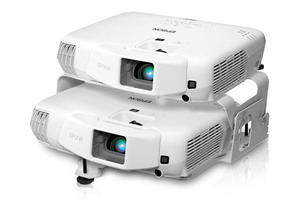

PowerLite W16SK 3D 3LCD Dual Projection System

Immerse your students in ultra-bright 3D imagery that takes any subject to a whole new level. The Epson PowerLite W16SK dual projection system adds a bold, new dimension to education, displaying art, science and math lessons in brilliant, vivid detail. This innovative system features two powerful projectors stacked together, for ultra-bright video and images in large classrooms or rooms with ambient light. Use the W16SK to share 2D content in a big, brilliant way. Or, use it with affordable passive 3D glasses (one pair included) for 3D content that will captivate any student. This dual projection system is the perfect way to engage your entire class, at a price that won't break the budget. And, because this system is so bright, there's no need to turn out the lights to view dynamic 3D content. This projector also supports all 3D formats2, so no external 3D converter box is necessary. The PowerLite W16SK makes it easy to achieve larger-than-life lessons with captivating 3D capability that redefines the learning environment.

High Color Brightness with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% balanced Color Brightness and White Brightness. Delivering up to 6000 lumens (3000 x 2 projectors) in 2D mode of color brightness1 and up to 6000 lumens (3000 x 2 projectors) in 2D mode of white brightness1, the PowerLite W16SK uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

REPLACEMENT PRODUCT :
PowerLite L630U Full HD WUXGA 3LCD Laser Projector
PowerLite L630U Full HD WUXGA 3LCD Laser Projector
Model: View Main Product Page Learn More
  • High Color Brightness and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The PowerLite W16SK has:
      Color Brightness – up to 6000 lumens (3000 x 2 projectors) in 2D mode1
      White Brightness – up to 6000 lumens (3000 x 2 projectors) in 2D mode1
  • Captivating widescreen 3D content to engage any student — 2D and passive 3D projection, with Full HD technology and native WXGA resolution (16:10 aspect ratio)
  • Affordable 3D projection system — pair with inexpensive passive 3D glasses (one pair included); now you can afford to purchase glasses for your entire class
  • Supports multiple HDMI 3D formats3 — no external 3D converter box necessary

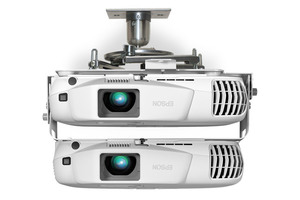

  • Easy setup — includes dual projector stacking mount kit, 1 pair of passive 3D glasses, and polarizing filters for passive 3D

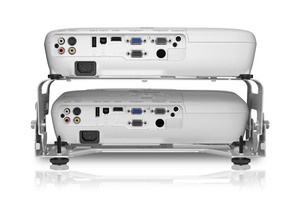

  • Versatile connectivity for any classroom — HDMI, computer / VGA inputs, monitor output, audio input, audio output, USB and RS-232c
  • Positioning flexibility — ±15 degrees vertical and horizontal keystone image correction
  • Energy-efficient E-TORL lamp — up to 5000-hour lamp life3
  • Epson Warranty — Two-year projector limited warranty, Epson Road Service Program, PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty.


IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Two PowerLite W16SK 3D projectors
  • Dual projector stacking mount kit
  • 1 pair of passive 3D glasses (Adult)
  • 2 polarizing filters
  • 2 Power cords
  • 1 USB cable
  • Remote control with 2 AA batteries
  • 3 projector feet
  • Quick setup guide
  • User's guide CD
  • Tips sheet

Specifications Projector:


Projection System: 3LCD, 3-chip technology,
RGB liquid crystal shutter projection systemProjection Method: Front / rear / ceiling mountDriving Method: Poly-silicon TFT Active MatrixPixel Number: 1,024,000 dots (1280 x 800) x 3Color Brightness - Color Light Output: 3000 lumens x 2 projectors1White Brightness - White Light Output: 3000 lumens x 2 projectors1Aspect Ratio: Native 16:10 widescreenResolution: 1280 x 800 (WXGA)Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1360 x 768 (WXGA 60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 900 (WXGA++), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+ 60)Lamp Type: 200 W UHE (E-TORL)Lamp Life:
  • ECO mode: Up to 5000 hours2
  • Normal mode: Up to 4000 hours2
Throw Ratio Range: 1.42 – 1.56Size - projected distance:
    For stacked configuration
  • White screen: 80" – 150" (8.2' – 15.4')
  • Silver screen: 80" – 120" (8.2' – 12.5')
Keystone Correction:
    Automatic
  • White screen: Vertical/Horizontal: ±15 degrees
  • Silver screen: Vertical/Horizontal: ±10 degrees
Contrast Ratio: Up to 5000:1 (Stack 3D)Color Reproduction: Up to 1 billion colorsMac Connectivity: Projector is Mac compatible via USB, DVI to HDMI or VGA adapter (not included)3D Format: YesPassive 3D Stack Function: Auto / Side-by-Side / Top & Bottom / 2D / Frame Packing

General:


Temperature: 41° to 95° F (5° C to 35° C)Security:
  • Kensington® security lock port
  • Padlock
  • Security cable hole
  • Password protect function

Power:


Power Supply Voltage: 100 – 240V ±10%, 50 / 60HzPower Consumption:
  • ECO mode: 237 W
  • Normal mode: 289 W
  • Communication on: 3.2 W standby
  • Communication off: 0.36 W standby

Projection Lens:


Type: Manual Focus / Manual Optical ZoomF-number: 1.58 – 1.72Focal Length: 16.9 mm – 20.3 mmZoom Ratio: 1.0 – 1.2 OpticalLens Cover: Slide lens shutter (A/V mute slide)

Remote Control:


Features: Source search, video, computer, USB, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions, user, esc, screen fit, 2D/3D, pointerOperating Distance: 19.7' (6 m)Operating Angle:
  • Right / Left: ±30 degrees
  • Upper / Lower: ±15 degrees

Projector Dimensions:


Including feet: Single: 12.8" x 9.6" x 3.1" (W x D x H)Dual Stacked: 14.6" x 13.8" x 8.8" (W x D x H)Dual Stacked Weight: 17.4 lb (includes mount and polarizing filters)

Projector Details:


Display Performance:
  • NTSC: 480 lines
  • PAL: 576 lines
  • (Depends on observation of the multi burst pattern)
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:
  • Computer: D-sub 15 pin x 2
  • Component video: D-sub 15 pin x 1 (shared with computer 1)
  • S-video: Mini DIN x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA x 1 (L and R)
  • USB connector: Type B x 1 (USB display, audio and mouse control, stack 3D control)3
  • USB connector: Type A x 1 (USB memory/document camera, stack 3D control)
  • HDMI x 1
  • Serial: RS-232c x 1
  • Monitor out: D-sub 15 pin x 1 (shared with computer 2)
  • Audio out: Mini stereo x 1
Speaker: Two x 2 W monauralStandby Audio: Through Audio Out onlyFan Noise:
  • ECO mode: 32 dB
  • Normal mode: 39 dB

Service Plans:

Notes:

*Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

1 6000 lumens based on specification for single projectors. Color light output (color brightness) measured in accordance with IDMS 15.4; white light output (white brightness) measured in accordance with ISO 21118. Color brightness and white brightness will vary depending on usage conditions; polarizing filters and keystoning will lower brightness.

2 Includes side-by-side, top-and-bottom and frame packing 3D formats.

3 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Specifications Notes:
1 6000 lumens based on specification for single projectors. Color light output (color brightness) measured in accordance with IDMS 15.4; white light output (white brightness) measured in accordance with ISO 21118. Color brightness and white brightness will vary depending on usage conditions; polarizing filters and keystoning will lower brightness.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

3 Must be used for Passive 3D in Stack Mode.


business and education projectors. Competitive projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.
