BrightLink 1480Fi 1080p 3LCD Interactive Laser Display

Create dynamic learning environments with this 3LCD 1080p1 interactive laser display.

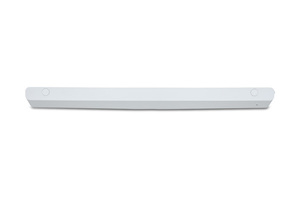

Increase engagement and collaboration in classrooms and meeting spaces with the dynamic BrightLink 1480Fi 1080p1 3LCD interactive laser display. Designed with convenience in mind, this ultra bright, 5,000-lumen2 ultra short-throw projector offers easy installation and a virtually maintenance-free 20,000-hour laser light source with no lamps3. Offering a 16:9 display up to 100", the 1480Fi provides 75 percent more interactive space than 75" panels for a fully immersive display in meeting spaces and classrooms. With support for optional BrightLink touch modules, it allows up to eight users to work on a single interactive canvas. Plus, it comes with a host of PC-free features including collaborative whiteboard sharing, printing, emailing and more.


BrightLink 1480Fi Projector Spec Sheet ►

  • Model: V11H921520

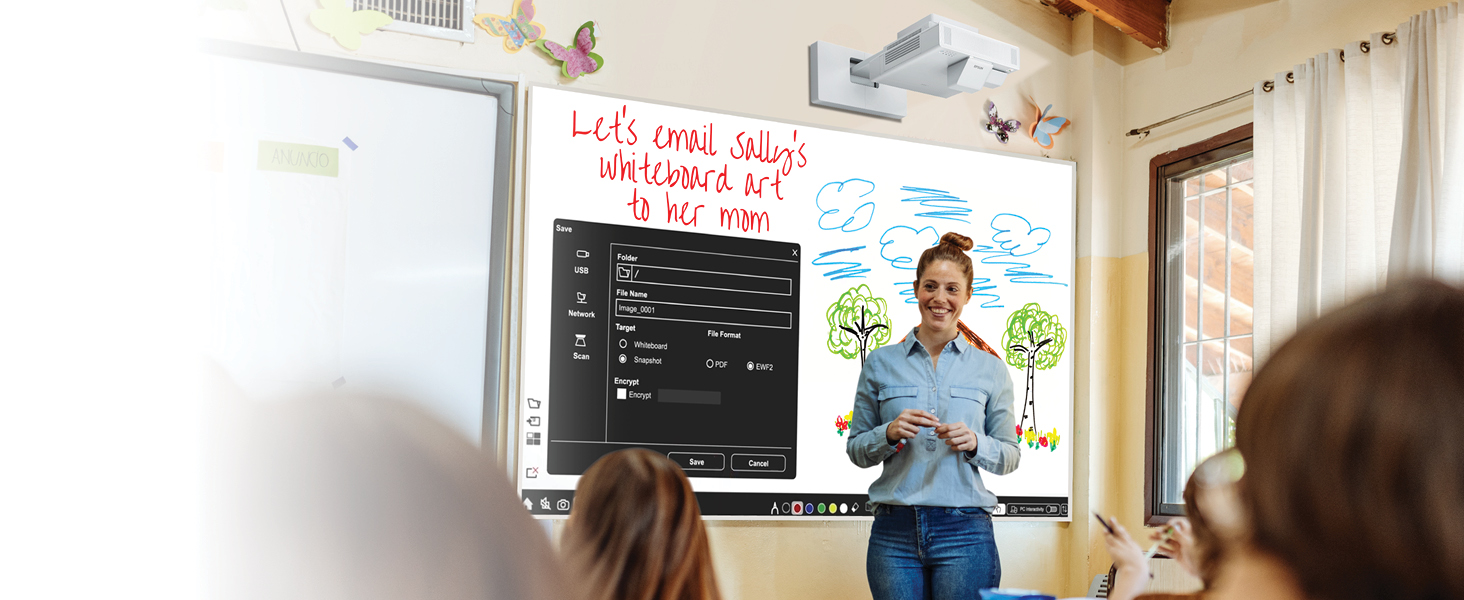

  • Digital whiteboard — draw, save, print and email without a PC; share whiteboard content to other network-connected BrightLink projectors4
  • Built-in wireless — use free Epson iProjection™ software to connect, display and share content simultaneously to/from up to 50 connected devices5
  • SMART Learning Suite — includes 1-year subscription and support for SMART Notebook®, SMART ampTM, SMART labTM, SMART Learning Suite Online and more

Eco Features

  • RoHS compliant
  • Recyclable product8
  • Epson America, Inc. is a SmartWay™ Transport Partner9

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • BrightLink Pro 1480Fi
  • lens cover
  • rear cable cover
  • Quick Setup Guide
  • 6' power cable
  • USB A/B cable (x3)
  • projector remote control with two AA batteries
  • pen holder
  • markers for auto screen adjustment
  • IR reflectors
  • two (2) interactive pens
  • extra pen tips
  • battery charger and two (2) AA rechargeable batteries (for interactive pens)
  • warranty statement
  • SMART SLS redemption code

Specifications Projector:

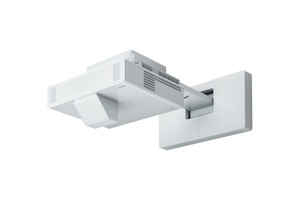

Projection System: Epson® 3LCD, 3-chip technology1Projection Method: Ceiling/wall mount/table mountDriving Method: Epson Poly-silicon TFT Active MatrixNative Resolution: 1080p (1366 x 768 x 2)Resolution on Screen: 1080p (2.1 million pixels)Pixel Number: 1,049,000 Pixels (1366 x 720) 3 chipsColor Brightness - Color Light Output: 5,000 lumens2White Brightness - White Light Output: 5,000 lumens2Aspect Ratio: 16:9 (native), supports 4:3, 16:10Size - projected distance: (16:9) 65" – 100"Keystone Correction: Horizontal: ± 3 degrees
Vertical: ± 3 degreesUSB Plug 'n Play: Mac® 10.4 or later; Windows 7 or laterContrast Ratio: Up to 2,500,000:1Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal)
30,000 hours (Extended)3Illumination Technology: Laser Diode

General:


Operating Temperature: 32˚ to 104 ˚F (0 ˚ to 40 ˚C)Dimensions: 18.1" x 18.2" x 14.8" (W x D x H)Weight: 21.4 lb with cable cover (9.7 kg)

Projection Lens:


Type: Manual focusF-number: 1.50Focal Length: 3.9 mmZoom Ratio: Digital zoom 1.0 – 1.35xThrow Ratio Range: (16:9) 0.27 – 0.37, (4:3) 0.37 – 0.50, (16:10) 0.30 – 0.42

Interactive Specifications:


Interactive Technology: Infrared, 850 nmInteractive Modes: Whiteboard Mode: 2x pens and 6x fingers PC-free Annotation Mode: 2x pens and 6x fingers Computer Interactivity Mode, Easy Interactive Tools: 2x pens and 6x fingersInteractive Area: 65" – 100" diagonal (16:9, 1080p1)System Compatibility: Microsoft® Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) macOS 10.11/macOS 10.12.x, UBUNTU, 16.04 LTS, 19.04, 18.04 LTS

Interactive Software:


Other Software: Epson Easy Interactive Driver (Mac and PC — required for DuoLink); Windows and Linux: driver not required Mac: Mac OS X 10.7/10.8/10.9/10.10/10.11/macOS® 10.12.x Epson Easy Interactive Tools for Windows and Mac

Interactive Input Device:


Type of Interactive Input Device: Digital pen or fingerMultiple Pen Support: YesInteractive Pen Functions: Mouse functions (left and right click), electronic pen, LED battery status indicatorInteractive Pen Dimensions: Size: 6.3" (L) x 0.95" (W); Weight: 1.1 oz (without battery)Compatible Pen Battery Types: AA x 1, Manganese dry cell, Alkaline dry cell, Panasonic eneloop® BK-3MCCx

Projector Details:

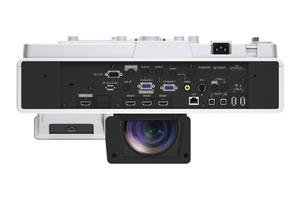

Interfaces:
  • HDMI®: 3
  • HDMI Out: 1
  • Computer/Component Video: 2x D-sub 15 pin
  • Composite Video: 1x RCA (Yellow)
  • Audio In: 3x Mini stereo
  • Audio Out: 1x Mini stereo
  • Microphone In: 1
  • USB Connector: 2x Type B (USB display, audio and mouse, k/b control interactivity)
  • USB Connector: 2x Type A (USB memory/document camera)
  • 1x RJ-45
  • Serial: 1x RS-232c
  • Monitor Out: 1x D-sub 15 pin (shared with computer 2)
  • Integrated Wireless LAN: 802.11 b/g/n/ac
  • Interactive Synchronization: Mini Stereo In
  • Interactive Synchronization: Mini Stereo Out
  • Touch Unit Connection Port
Speaker: 8 W x 2Fan Noise: Quiet Mode: 27 dB
Normal Mode: 36 dB

Power:


Power Supply Voltage: 100 – 240 V ± 10%, 50/60 HzPower Consumption: ECO Mode: 270 W
Normal Mode: 381 W
Standby (Communication On): 2.0 W
Standby (Communication Off): 0.5 W

Wireless:


Security: Kensington lock provision, security anchor bar, password-protect function

Notes:

1 Pixel shifting technology achieves Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 BrightLink 1485Fi and 1480Fi projectors only. Cannot share to earlier models.

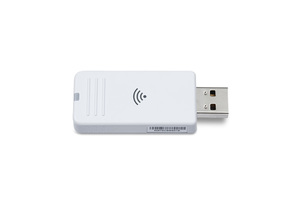

5 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
6 For convenient and reasonable recycling options, visit www.epson.com/recycle
7 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
