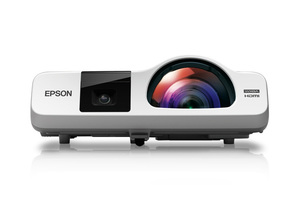

For Work Projectors Classroom BrightLink 536Wi Interactive WXGA 3LCD Projector
Discontinued

BrightLink 536Wi Interactive WXGA 3LCD Projector

Zoom In
BrightLink 536Wi Interactive WXGA 3LCD Projector
Close
BrightLink 536Wi Interactive WXGA 3LCD Projector
BrightLink 536Wi Interactive WXGA 3LCD Projector

The short-throw interactive projector for collaboration in any classroom

The BrightLink 536Wi short-throw interactive projector offers exciting, collaborative learning for any classroom - without requiring an electronic whiteboard. Transform any wall or existing dry-erase board into an interactive display. Delivering high Color Brightness*, Epson® 3LCD projectors ensure vivid images. Featuring 3400 lumens of color brightness and 3400 lumens of white brightness1, the 536Wi shines bright. Project images up to 116" from 4' away with minimal shadows or glare. Moderator device management software2 enables instructors to wirelessly3 connect up to 50 devices and simultaneously share students' work - from computers, iOS® and Android™ devices. Plus, the 536Wi supports top education software.


High Color Brightness with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 100% Balanced Color Brightness and White Brightness*. Delivering 3400 lumens of color brightness1 and 3400 lumens of white brightness1, the BrightLink 536Wi uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Find Accessories Support View Service Plans
Bright and Colorful
Features 3400 lumens of color brightness (color light output)1 and 3400 lumens of white brightness (white light output)1.
WXGA Resolution
1280 x 800 HD widescreen resolution
Interactive
Make almost any smooth, lightly-colored surface interactive with BrightLink solutions.
Interactive Pen
Annotate and interact with projected images using the interactive pen.
iProjection Compatible
Wirelessly project from PC, MAC, Chromebook, iOS, and Android devices – Connect and manage up to 50 devices simultaneously.
Short-Throw Projector
Can be mounted only 28 inches away from the board, and the projected image can get as large as 106" diagonal with no shadow interference (using the optional wall mount)
  • High Color Brightness and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The BrightLink 536Wi has:
      Color Brightness: 3400 lumens1
      White Brightness: 3400 lumens1
  • Easy-to-use, interactivity — fully integrated, dual pen-based interactivity5 transforms any wall or existing whiteboard into an interactive display
  • Large, engaging presentations, even in small spaces — built-in short-throw lens projects images 53" up to 116" from less than 4' away with virtually no glare or shadows
  • Convenient collaboration for BYOD classrooms — wirelessly share4 and compare students' work from multiple devices, simultaneously, with Moderator device management software3
  • PC-free annotations — write on images projected directly from an iPad®, iPhone®, iPod®, Android device, document camera or Blu-ray Disc® player, no computer necessary
  • SMART™ Learning Suite Collaborative Learning software — included with purchase. Includes one year of Notebook Advantage
  • Compatible with top interactive software — maximize your investment by utilizing familiar teaching applications
  • Wireless projection from an array of devices — project from iPad, iPhone, Android tablets and smartphones with the free Epson iProjection™ App4 (wireless module sold separately)
  • Long-lasting, low-cost lamps — up to 10,000 hours in ECO Mode6
  • Flexible placement — install using a wall mount (optional) or place on a tabletop or cart
  • Epson Warranty — Two-year projector limited warranty, Epson Road Service Program, PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty.

Eco Features

  • Energy-efficient 3LCD light engine
  • Energy-efficient UHE (Ultra High Efficiency) E-TORL® lamp
  • Recyclable product
  • RoHS compliant
  • Epson America, Inc. is a SmartWaySM Transport Partner6

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • BrightLink 536Wi interactive projector
  • Interactive pen A (orange)
  • USB cable
  • Easy Interactive software
  • User's guide CD
  • Rechargeable batteries and charger
  • Quick setup guide
  • power cord
  • Computer cable (VGA)
  • Projector remote control
  • Batteries
  • User manual CD
  • Projector software CD
  • Quick Setup Sheet
  • Password protection sticker
  • Lens cover
  • SMART™ Learning Suite redemption code

Specifications Projector:

Projection System: Epson® 3LCD, 3-chip technologyProjection Method: Front / wall mountDriving Method: Poly-silicon TFT Active MatrixPixel Number: 1,024,000 dots (1280 x 800) x 3Color Brightness - Color Light Output: 3400 lumens1White Brightness - White Light Output: 3400 lumens1Aspect Ratio: 16:10Resolution: 1280 x 800 (WXGA)Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA 60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA)Lamp Type: 215 W UHELamp Life:
  • ECO mode: Up to 10000 hours2
  • Normal mode: Up to 5000 hours2
Throw Ratio Range: 0.48 – 0.65Size - projected distance:
  • 53" – 116" without wall mount
  • 68" – 113" with wall mount
Keystone Correction:
    Manual:
  • Vertical: ±7 degrees
  • Horizontal: ±5 degrees
Contrast Ratio: Up to 16,000:1Color Reproduction: Up to 1.07 million colorsInteractive Color Brightness - Color Light Output: 3400 lumens1Interactive White Brightness - White Light Output: 3400 lumens1

General:

Temperature: 41° to 95° F (5° to 35° C)Weight: 8.5 lbSecurity: Kensington® security lock port, padlock and security cable hole, password protect function

Projection Lens:

Type: Digital zoom / Manual focusF-number: 1.60Focal Length: 6.4 mmZoom Ratio: Digital zoom 1.0 – 1.35

Interactive Specifications:

Interactive Connectivity: USBInteractive Technology: infrared, 940 nmCalibration Method: Automatic or ManualInteractive Modes: Computer interactivity/input: Interactive and Whiteboard modes, Dual user PC-free annotationsInteractive Area:
  • 68" to 113" diagonal (16:10, WXGA) wall mounted
  • 53" to 116" without mount
System Compatibility:
  • Connection to the computer: USB
    • Epson Easy Interactive Driver
  • Windows® and Linux: no driver required
  • Macintosh®: Mac OS® X 10.5.x, 10.6.x, 10.7.x, 10.8.x (Included in the box. Also available for unlimited download at Epson.com support page)
PC-Free Annotation Tools: YesPC-Free Annotation Sources: document cameras, DVD/Blu-Ray player, iPod/iPad devices3 (devices not included)

Interactive Software:

Easy Interactive Tools Compatibility:
    System compatibility
  • Microsoft Windows XP SP2, Windows XP SP3 (Home Edition/Professional), Windows Vista®, Windows Vista SP14, Windows Vista SP2 (All editions except for Starter), Windows 7, Windows 7 SP1 (All editions except for Starter), Windows 8
  • Mac OS X 10.5.x, Mac OS X 10.6.x, Mac OS X 10.7.x, Mac OS X 10.8.x

Interactive Input Device:

Type of Interactive Input Device: Digital pen (one included)5Interactive Pen Power: AA batteries, rechargeableInteractive Pen Weight: 1.1 oz. (without battery)Interactive Pen Dimensions: 6.4" x 0.9" (L x W)Compatible Pen Battery Types: SANYO eneloop® HR-3UTG / HR-3UTGA (Eneloop batters and charger included), Manganese dry cell, alkaline dry cell6

Projector Details:

Display Performance:
  • NTSC: 480 lines
  • PAL: 576 lines
    • (Depends on observation of the multi-burst pattern)
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:
  • Computer / component video: D-sub 15 pin x 2
  • S-video: Mini DIN x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA x 1 (L and R), Mini stereo x 2
  • USB connector: Type B x 1 (USB display, audio and pen control)
  • USB connector: Type A x 1 (USB memory/document camera)
  • HDMI x 1
  • RJ-45 x 1
  • Serial: RS-232c x 1
  • Monitor out: D-sub 15pin x 1
  • Audio out: Mini stereo x 1
  • Microphone: Mini stereo x 1
  • Wireless LAN USB port: 802.11 b/g/n (optional module sold separately
Speaker: 16 W monoFan Noise:
  • ECO mode: 29 dB
  • Normal mode: 37 dB

Remote Control:

Features: Source search, video, LAN, computer, USB, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions, user, esc, Pen modeOperating Distance: 19.7 ft. (6 m)Operating Angle:
  • Right / Left: ±30 degrees
  • Upper / Lower: 10 to 70 degrees

Projector Dimensions:

Including feet: 13.6" x 11.7" x 6.2" (W x D x H)Excluding feet: 13.6" x 10.9" x 4.1" (W x D x H)

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • ECO mode: 254 W
  • Normal mode: 344 W
  • Communication on: 6.80 W standby
  • Communication off: 1.9 W standby
See Full Specs Hide Full Specs
Print All Specs

Service Plans:

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Functionality may vary depending on hardware, application, and/or provider restrictions or limitations. Devices and cables not included.

3 Any source that is directly connected to your projector and appears as a source to be accessed by the projectorΓÇÖs remote control.

4 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

5 Works only with Epson projectors that support presentation over the network capability.

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

7 Additional pens available for purchase. For dual pen support,an orange and blue pen are required.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

3 Any source that is directly connected to your projector and appears as a source to be accessed by the projectorΓÇÖs remote control. Functionality may vary depending on hardware, application, and/or provider restrictions or limitations. Devices and cables not included.

4 32-bit versions only

5 Additional pens available for purchase. For dual pen support, an orange and blue pen are required.

6 eneloop batteries and charger included. eneloop® is a registered trademark of Sanyo Electronic Co., Ltd.
