The bright, Full HD ultra short-throw interactive display for classrooms.

The ultimate academic collaboration tool, the BrightLink 697Ui touch-enabled, wireless ultra short-throw interactive display delivers supersize Full HD WUXGA images up to 100" — from as close as 10" away. Featuring an amazingly bright 4,400 lumens of color and white brightness1, the 697Ui turns almost any wall or existing whiteboard into a collaborative interactive workspace. Offering encrypted enterprise-level security, wireless support and content sharing for a variety of devices — including Chromebooks — it’s perfect for today’s BYOD classrooms. Plus, PC-free whiteboard sharing enables remote collaboration with offsite participants. It also includes a 1-year subscription and support for SMART Learning Suite.

Find Accessories Support View Service Plans
REPLACEMENT PRODUCT :
BrightLink 1485Fi 1080p 3LCD Interactive Laser Display
BrightLink 1485Fi 1080p 3LCD Interactive Laser Display
Model: View Main Product Page Learn More
Bright and Colorful
Features 4400 lumens of color brightness (color light output)1 and 4400 lumens of white brightness (white light output)1.
WUXGA Resolution
1920 x 1200 Full HD widescreen resolution
Interactive
Make almost any smooth, lightly-colored surface interactive with BrightLink solutions.
Finger-Touch Enabled
Touch, draw, select and interact using intuitive and familiar gestures
iProjection Compatible
Wirelessly project from PC, MAC, Chromebook, iOS, and Android devices – Connect and manage up to 50 devices simultaneously.
Wireless Ready
Includes a high-speed LAN module for wireless connectivity
  • Amazingly bright display — 4,400 lumens color/white brightness1
  • Full HD WUXGA display up to 100" — supersize display for clear legibility and visibility from anywhere in the room
  • Pen- and touch-based interactivity — touch interactivity allows up to six users to draw, share and collaborate at once using familiar gestures
  • Encrypted enterprise-level security — for peace of mind; compatible with WPA, WPA2-PSK and WPA2-EAP security protocols
  • Wirelessly connect up to 50 devices — simultaneously share and control content from up to four screens at once using Moderator software2, including Chromebook, PC, Mac, iOS® and Android™ devices
  • Easy content sharing — share images between the big screen and wirelessly connected mobile devices, for individualized learning4
  • Whiteboard sharing — remote collaboration allows others to see and write to the whiteboard, even when they’re not in the room

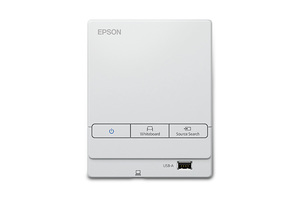

  • Wall-mounted control panel — for easy projector control at your fingertips with access to On/Off, Source selection and PC-free whiteboarding
  • Includes 1-year subscription and support for SMART Learning Suite — SMART Notebook®, SMART amp™, SMART lab™, SMART Learning Suite Online and more
  • High Color Brightness4, and reliable performance — 3LCD, 3-chip technology


IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • BrightLink 697Ui ultra short-throw interactive projector
  • Quick Start Guide
  • 15' power cable
  • electronic user manual
  • interactive driver for Mac and PC
  • Epson Easy Interactive Tools
  • Network Management software
  • projector remote control
  • two (2) interactive pens
  • pen holder
  • two (2) AA batteries (for interactive pens) plus battery charger
  • two (2) AA batteries (for remote)
  • Wall mount
  • SMART Learning Suite redemption code
  • Soft pen tips (4)
  • Hard pen tips (2)
  • Touch module
  • Touch module cable
  • Touch module mounting bracket
  • Control panel
  • Mini audio cable
  • 5m USB Cable (2)
  • 6' USB Cable (1)
  • 802.11 b/g/n Wireless LAN Module

Specifications Projector:

Projection System: Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/wall mount/table mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 4,400 lumensWhite Brightness - White Light Output: 4,400 lumensAspect Ratio: 16:10Resolution: 1920 x 1200 (WUXGA)Lamp Type: 300 W UHELamp Life: ECO Mode: Up to10,000 hours, Normal Mode: Up to 5,000 hoursThrow Ratio Range: (16:10) 0.22 – 0.37, (4:3) 0.33 – 0.44, (16:9) 0.27 – 0.37Size - projected distance: (16:10) 70.4" – 100"Keystone Correction: Horizontal: ±3 degrees; Vertical: ±3 degreesUSB Plug 'n Play: For Mac: Mac OS® 10.7/10.8/10.9/10.10/10.11/macOS™ 10.12.x
For Windows: Windows Vista®/Windows 7/ Windows 8/Windows 10Contrast Ratio: Up to 16,000:1Color Reproduction: Up to 1 billion colorsInteractive Color Brightness - Color Light Output: 4,400 lumensInteractive White Brightness - White Light Output: 4,400 lumens

General:

Operating Temperature: 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)Dimensions: 18.7" x 17.6" x 5.1"Weight: 18.7 lbSecurity: Kensington lock provision, security anchor bar, Password Protection function

Projection Lens:

Type: Manual focusF-number: 1.6Focal Length: 4.2 mmZoom Ratio: Digital zoom: 1.0 – 1.35x

Interactive Specifications:

Interactive Connectivity: USB cable for non-networkedInteractive Technology: Infrared, 850 nmInteractive Modes: Computer Interactivity/Input,PC-free and Whiteboard Annotation Mode, Pen: Dual User, Finger Touch: Up to 6 points of touchCalibration Method: Automatic or ManualInteractive Area: 70" – 100" diagonal (16:10, WUXGA)System Compatibility: Microsoft® Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.xPC-Free Annotation: Two pens and two fingersPC-Free Annotation Tools: Epson Easy Interactive Tools, Dual UserPC-Free Annotation Sources: USB, HDMI, Computer 1, Computer 2, LAN

Interactive Input Device:

Type of Interactive Input Device: Digital penInteractive Pen Functions: Mouse Functions (left and right click), Electronic Pen, LED Battery Status IndicatorInteractive Pen Power: AA battery, rechargeableInteractive Pen Weight: 1.1 oz (without battery)Interactive Pen Dimensions: 6.3" x 0.94" (diameter)Compatible Pen Battery Types: Eneloop® batteries (included), Manganese dry cell, alkaline dry cell

Projector Details:

Display Performance: NTSC: 480 lines
PAL: 576 lines (Depends on observation of the multi-burst pattern)Input Signal: NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAMSpeaker: 16 W monauralFan Noise: ECO Mode: 30 dB, Normal Mode: 38 dB

Remote Control:

Features: Computer, Video/HDMI, USB, LAN, Whiteboard, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, ESC, Pointer, User, Home, Split, Pen Mode, Link MenuOperating Distance: 19.7 ft (6 m)Operating Angle: Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees
Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 HzPower Consumption: 477 W
2.0 W Standby Mode

General Projectors:

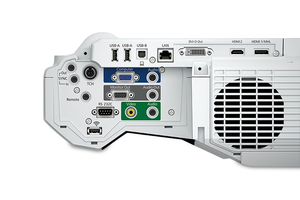

Interfaces:
  • 1x HDMI®
  • 1x HDMI/MHL®
  • Computer/Component video: 1x D-sub 15 pin
  • Composite video: 1x RCA (Yellow)
  • Audio in: 2x Mini stereo
  • USB connector: 1x Type B (USB display, audio interactivity and mouse control)
  • USB connector: 2x Type A (USB memory/document camera)
  • 1x RJ-45
  • Serial: 1x RS-232c
  • Monitor Out: 1x D-sub 15 pin
  • Audio Out: 1x Mini stereo
  • Wireless LAN port: 802.11 b/g/n (included)
  • Interactive Synchronization Mini stereo In
  • Interactive Synchronization Mini stereo Out
  • Touch Unit Connection Port
  • DVI-Out
  • Remote
See Full Specs Hide Full Specs
Print All Specs

Service Plans:

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 SMART Learning Suite combines SMART Notebook Software 17, SMART Lesson Activity Builder LAB, SMART Response 2, SMART amp, and SMART Learning Suite Online.

3 Moderator feature is part of EasyMP Multi-PC Projection software.

4 Color brightness (color light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

5 For convenient and reasonable recycling options, visit www.epson.com/recycle

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
