BrightLink Pro 1420Wi Collaborative Whiteboarding Solution

Contact Us 800.463.7766
Mon-Fri 6am-8pm, Sat 7am-4pm PT

Revolutionize your whiteboard — intelligent, interactive, collaborative solution

Get more out of every meeting with the BrightLink Pro 1420Wi collaborative white-boarding solution. BrightLink Pro 1420Wi integrates the utility of your whiteboard, projector and interactive display and easily connects to video conferencing equipment. It turns any surface into an interactive area on which you can annotate. Remote participants can use their mobile devices2 and write to the digital whiteboard in real time. Share notes easily; save, email or print directly — no PC or software required. Just turn it on and start writing with the pens. Need more space? Add pages. It’s the simplicity of whiteboarding, modernized for today’s workforce.

3x Brighter Colors with Epson*
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 3300 lumens of color brightness1 and 3300 lumens of white brightness1, the BrightLink 1420Wi uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

    • Projection System: 3LCD, 3-chip technology
      Native Resolution: 1280 x 800 (WXGA)
      Color Brightness: 3300 lumens1
      White Brightness: 3300 lumens1
  • Model: V11H612520
Our Price :
$2,590.00

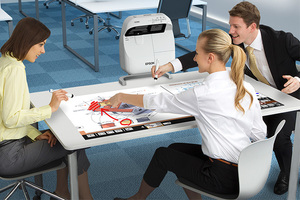

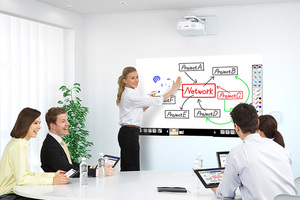

  • Revolutionize your whiteboard — turn any wall, flat surface or existing dry-erase board interactive; turn on BrightLink Pro and start writing using the included pens
  • Easy to use — BrightLink Pro is a standalone solution — no computer, software or training is required, so you can operate with ease
  • Capture, save and share — no need to transcribe whiteboard notes or take a photo; press a button to save, print or email directly from your BrightLink Pro
  • Extensive whiteboard space — save up to 50 digital pages; no need to erase for more space, just add a new page

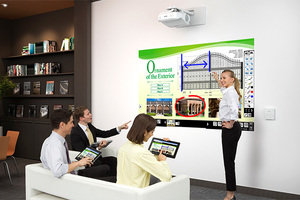

  • Whiteboard sharing — content written digitally can be shared and annotated on simultaneously by both local and remote participants collaborating from mobile devices2, computers and other BrightLink Pros

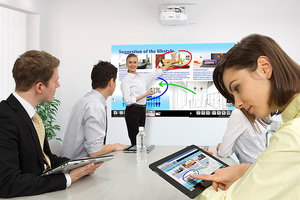

  • Bring your own device (BYOD) — using Epson’s iProjection App, wirelessly share and display content from iPhone®, iPad® and Android™ devices2 to BrightLink Pro
  • Dynamic video conferencing display — connect video conferencing equipment for a large 100" display; use Split Screen3 to simultaneously display people and content side by side

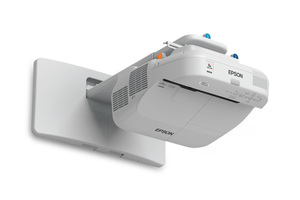

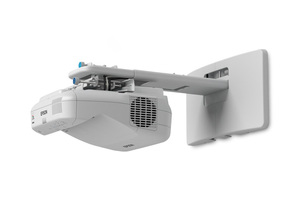

  • Elegant finish — optional mount available in teak, deep cherry or aluminum; ideal for executive boardrooms; visit www.chiefmfg.com
  • 3x Brighter Colors, and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The BrightLink 1420Wi has:
      Color Brightness: 3300 lumens1
      White Brightness: 3300 lumens1
  • Epson Warranty — Two-year projector limited warranty, Epson Road Service Program, PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty.

Eco Features

  • Recyclable product4
  • Energy-efficient lamp
  • RoHS compliant
  • Epson America, Inc. is a SmartWaySM Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • BrightLink Pro 1420Wi interactive projector
  • 802.11 b/g/n wireless module
  • Quick user's guide
  • Power cable
  • USB A/B cable (x3)
  • Electronic user manual
  • Interactive driver for Mac
  • Epson EASY Interactive Tools
  • Network Management software
  • Projector remote control

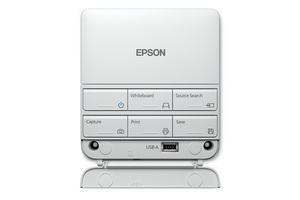

  • Control pad
  • Pen case
  • Two (2) interactive pens
  • Two (2) AA batteries (for interactive pens)
  • Two (2) AA batteries (for control pad)
  • Epson Road Service program

Specifications Projector:


Projection System: Epson® 3LCD, 3-chip technologyProjection Method: Front / wall mount / tableDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 1,024,000 dots (1280 x 800) x 3Color Brightness - Color Light Output: 3300 lumens1White Brightness - White Light Output: 3300 lumens1Aspect Ratio: 16:10Native Resolution: 1280 x 800 (WXGA)Lamp Type: 245 W UHELamp Life:
  • ECO mode: Up to 6000 hours2
  • Normal mode: Up to 4000 hours2
Throw Ratio Range: (16:10) 0.27 – 0.37, (4:3) 0.33 – 0.44,(16:9) 0.27 – 0.37Size - projected distance:
  • (4:3) 30" – 90"
  • (16:10) 60" – 100"
  • (16:9) 59" – 97"
Keystone Correction:
    Manual:
  • Vertical: ±3 degrees
  • Horizontal: ±3 degrees
USB Plug 'n Play:
  • Mac®10.5 or later
  • USB Plug 'n Play for Windows® 2000
Contrast Ratio: Up to 10,000:1Color Processing: 10 bitColor Reproduction: Up to 1.07 billion colorsInteractive Color Brightness - Color Light Output: 3300 lumens1Interactive White Brightness - White Light Output: 3300 lumens1

Projection Lens:


Type: Manual focusF-number: 1.80Focal Length: 3.71 mmZoom Ratio: Digital zoom 1.0 – 1.35x

Interactive Specifications:


Interactive Modes:
  • Whiteboard mode: 2 x pens
  • PC-free annotation mode: 2 x pens
  • Computer interactivity mode: 2 x pens
Calibration Method: Automatic or ManualInteractive Area: 60" to 100" diagonal (16:10, WXGA)System Compatibility:
  • Connection to the computer: USB
  • Wireless LAN connection: Software
  • Epson Easy Interactive Driver
  • Windows® and Linux: no driver required
  • Macintosh®: Mac OS® X 10.3.9, 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.x (Included in the box. Also available for unlimited download at Epson.com support page)
PC-Free Annotation Tools: Yes

Interactive Software:


Easy Interactive Tools Compatibility: Epson Easy Interactive Tools for Windows/Mac (available for free, unlimited downloads at Epson.com support page)
    System compatibility
  • Microsoft Windows XP® SP2, Windows XP SP3 (Home Edition/Professional), Windows Vista®3, Windows Vista SP13, Windows Vista SP23 (All editions except for Starter), Windows 74, Windows 7 SP14, Windows 84(All editions except for Starter)
  • Mac OS X 10.5.x, 10.6.x, 10.7.x, 10.8.x and 10.9.x

Interactive Input Device:


Type of Interactive Input Device: Digital pen (two included)Interactive Pen Functions: Mouse functions (left and right click), Electronic pen, LED battery status indicatorInteractive Pen Power: AA BatteryInteractive Pen Weight: 1.1 oz (without battery)Interactive Pen Dimensions: 6.3" (L) x .95" (W)Compatible Pen Battery Types: AA x 1. Manganese dry cell, Alkaline dry cell, Panasonic eneloop® BK-3MCCx (The suffix "x" can be blank or A-Z.)

General:


Temperature: 41° to 95° F (5° to 35° C)Weight:
  • 12.3 lb without slide plate
  • 14.1 lb with slide plate
Security: Kensington® lock provision, security anchor bar, password protect function

Projector Details:


Speaker: 16 W monauralFan Noise:
  • ECO mode: 28 dB
  • Normal mode: 35 dB

Remote Control:


Features: Source search, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, help, auto, enter, esc, pointer, user, print, save, capture, whiteboard, pen mode, split page up or downOperating Distance: 19.7 ft (6 m)Operating Angle:
    Front
  • Right / Left: ±30 degrees
  • Upper / Lower: 0 to +60 degrees

Projector Dimensions:


Excluding feet: 14.5" x 14.8" x 7.5" (W x D x H)

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 HzPower Consumption:
  • ECO mode: 288 W
  • Normal mode: 384 W
  • Communication on: 2.4 W standby
  • Communication off: 0.31 W standby
See Full Specs Hide Full Specs

Epson BrightLink Models Win Gold Reader's Choice Award for Best Interactive Whiteboards

"In Campus Technology's first-ever Readers' Choice Awards, hundreds of education professionals voted for their favorite products in 29 categories. The categories covered the gamut of technology from 3D printers to wireless access points." - Campus Technology, October 30, 2015
Read More

Epson BrightLink Projectors Receive Readers' Choice Top Product of 2015 Award

"The suite of BrightLink projectors can be used on whiteboards, walls or other light-colored surfaces."District Administration, December 1, 2015
Read More

Epson BrightLink Pro Series Receives Gold Stevie Award

The BrightLink Pro series has received the Gold Stevie Award in the Hardware - Networking or Peripheral Category. - Stevie Awards, September 12, 2014
Read More

Epson BrightLink Pro 1420Wi and BrightLink Pro 1430Wi Awarded Best of ISE Award from rAVe Publications

rAVe Publications, March 21, 2016
Read More
See All Accolades Hide All Accolades

Notes:

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Functionality may vary depending on hardware, application, and/or provider restrictions or limitations. Devices and cables not included.

3 Consult your user manual for input combinations.

4 For convenient and reasonable recycling options, visit www.epson.com/recycle

5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

3 32-bit versions only

4 32-bit and 64-bit version


Epson business and education projectors have 3x Brighter Colors than their leading competitive 1-chip DLP projectors. Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
.
