For Work Projectors Large Venue Pro L1490U WUXGA 3LCD Laser Projector with Lens
Discontinued

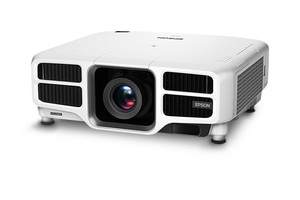

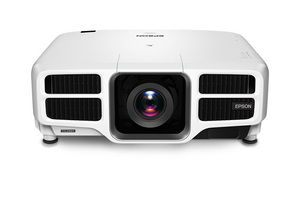

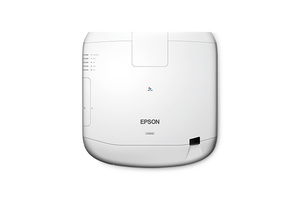

Pro L1490U WUXGA 3LCD Laser Projector with 4K Enhancement and Lens

Premium large-venue projector with 4K Enhancement Technology1.

Experience the vibrancy of crystal-clear projection with the Epson® Pro L1490U. Equipped with powerful 3-chip, 3LCD and native WUXGA with 4K Enhancement Technology1, this state-of-the-art, large-venue laser projector displays crisp, luminous images at 9,000 lumens of color and white brightness2. Designed with ease in mind, the Pro L1490U’s laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours3. Plus, this elegant, white projector features a full range of inputs, Edge Blending and 10 optional powered lenses (one lens included - ELPLM15), making it an ideal solution for conference rooms, auditoriums and live events.

  • Model: V11HA16020
REPLACEMENT PRODUCT :
EB-PU1008W WUXGA 3LCD Laser Projector with 4K Enhancement
EB-PU1008W WUXGA 3LCD Laser Projector with 4K Enhancement
Model: View Main Product Page Learn More
  • Flexible installation — 360-degree projection for added versatility
  • Remote management and control tools — included software allows for easy web-based monitoring and multiple projector setup
  • Image correction camera — automatically adjusts color and brightness to match other projectors in multiple-screen applications
  • Brightness lock feature — allows users to securely set maximum brightness level

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT INFORMATION ABOUT USAGE ENVIRONMENTS ►

What's in the box:

  • Pro L1490U projector
  • a lens
  • lens cover
  • power cable
  • HDMI clamps
  • projector remote control with batteries
  • Quick Setup Sheet
  • lens lock screw

Specifications Projector:


Projection System: High-aperture Epson 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)Resolution on Screen: WUXGA with 4K Enhancement1/ 4.6 million pixels1Pixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3 chipsSignal Input: Maximum display resolution: 4096 x 2160 (resizing display)
Display resolution: 1920 x 1200 pixelsColor Brightness - Color Light Output: 9,000 lumens2White Brightness - White Light Output: 9,000 lumens2Aspect Ratio: Supports 4:3, 16:9, 16:10Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Brightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: 1.57 – 2.56Size - projected distance: 50" – 300"Keystone Correction: Vertical: ±45 degrees; Horizontal: ±30 degreesContrast Ratio: 2,500,000:1 AbsoluteBlack™ (Full White 8,000 lm/Full Black 0 lm)Color Reproduction: Up to 1 billion colorsLight Source Life: 20,000 hours3Illumination Technology: Laser Phosphor

Effective Scanning Frequency Range:


Pixel Clock: 13.5 MHz – 162 MHz (up to UXGA 60 Hz)Horizontal: 15 kHz – 92 kHzVertical: 50 Hz – 85 Hz

General:


Operating Temperature: 32 ˚ to 113 ˚F (0 ˚ to 45 ˚C)Weight: 48.4 lbSecurity: Security cable hole, lens lock, Kensington lock provision

Projection Lens:


Type: (For ELPLM15) Powered shift/focus/zoomF-number: (For ELPLM15) 1.8 – 2.35Focal Length: (For ELPLM15) 36.0 mm – 57.4 mmZoom Ratio: (For ELPLM15) Optical zoom 1 – 1.6xLens Shift: Vertical: ±60%; Horizontal: ±18%

Projector Details:

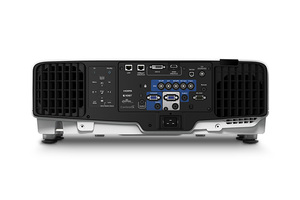

Display Performance: NTSC: 480 line, PAL: 576 line (depends on observation of the multi-burst pattern)Input Signal: NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080pPixelworks: Video chip 3D Y/C separation, noise reduction, motion compensated, interlace-progressive conversion (2-2, 3-2 film detection)Interfaces:
  • 3G-SDI x 1
  • DVI-D x 1
  • HDMI x 1
  • HDBaseT x 1
  • 5-BNC, VGA x 1
  • Audio in: Mini Stereo x 3
  • Variable audio out: Mini Stereo x 1
  • USB connector Type B x 1: For service only
  • USB connector Type A x 1: For wireless only
  • Monitor out: Mini D-sub 15 pin x 1
  • Serial: RS-232c x 1
Fan Noise: 37 dB (Normal Mode); max. 30 dB (Quiet Mode)

Projector Dimensions:


Including feet: 23.1" x 19.4" x 8.3"

Remote Control:


Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle: Right/left: Front: ± 60 degrees; rear: ± 30 degrees
Upper/lower: Front: ± 20 degrees; rear: +10 to +50 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • 645 W (Normal Mode)
  • 524 W (Extended Mode)
  • 2.0 W Standby (Communication on)
  • 0.5 W Standby (Communication off)

Service Plans:

Notes:

1 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution and surpass Full HD image quality.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.

4 For convenient and reasonable recycling options, visit www.epson.com/recycle

5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
