Pro L25000U Laser WUXGA 3LCD Projector w/ 4K Enhancement

World’s First 3LCD laser projector with 25,000 lumens plus 4K Enhancement

Designed for dynamic, high-impact live productions, Epson’s flagship laser projector, the Pro L25000U, offers the best and brightest performance of the Pro L Series. Ideal for rental, staging, and other large-venue applications, this projector combines a laser light engine with inorganic components for extraordinary brightness and reliable, 24/7 operation — up to 20,000 hours virtually maintenance-free*. Premium features include 25,000 lumens of color brightness and 25,000 lumens of white brightness1, 4K-Ready lenses, native WUXGA resolution with 4K Enhancement Technology2, sealed optical engine, 3G-SDI and HDBaseT™ connectivity. Installers can choose from eight optional lenses with powered lens shift and lens memory (sold separately).

  • World’s First 3LCD laser projector with 25,000 lumens1 plus 4K Enhancement2 — the Pro L25000U has:
      Color Brightness: 25,000 lumens1
      White Brightness: 25,000 lumens1
  • Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement2 for presentations, videos, digital signage and more
  • Solid-state laser light source — designed with inorganic components for up to 20,000 hours virtually maintenance-free operation*
  • Unsurpassed service and support — limited warranty of 3 years or 20,000 hours, whichever comes first
  • Designed for rental and staging — features a sealed optical engine, 3G-SDI connectivity, and true 360-degree projection flexibility
  • Epson® 4K Enhancement Technology2 — a revolutionary technology that accepts 4K signal and enhances 1080p for output that surpasses Full HD image quality
  • 4K-Ready lenses — eight optional interchangeable lenses with powered lens shift and lens memory (sold separately)
  • Reliable 24/7 operation — ideal for applications that require continuous projection
  • Dynamic projection capabilities — advanced built-in Edge Blending, auto image calibration and more
  • Seamless integration tools — compatibility with Crestron® RoomView®, AMX®, Extron® XTP®, Control and Art-Net Lighting Control systems, plus an Emulation Mode3 to accept basic control codes of other projector brands

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • Pro L25000U projector

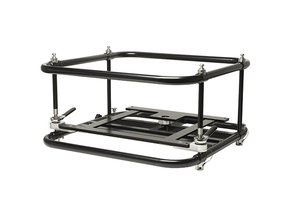

  • Mount frame
  • Power cable
  • Projector remote control with batteries
  • User manual CD
  • EasyMP software CD
  • Quick Setup Sheet
  • Lens lock screw

Specifications Projector:


Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 25000 lumens1White Brightness - White Light Output: 25000 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Native Resolution: 1920 x 1200 (WUXGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Brightness Uniformity: (typical) 90%Pixel Arrangement: Cross stripeThrow Ratio Range: Depends on lensSize - projected distance: 50" – 300"Keystone Correction:
    (For Standard Lens)
  • Horizontal: ±30 degrees
  • Vertical: ±45 degrees
Color Reproduction: Up to 1 billion colors

Effective Scanning Frequency Range:


Pixel Clock, Horizontal,Vertical:
    Pixel Clock
  • 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
  • Horizontal
  • 15 KHz – 92 KHz
  • Vertical
  • 50 Hz – 85 Hz

General:


Temperature: 32° to 113° F (0° to 45° C)Weight: 146 lbSecurity:
  • Security cable hole
  • Lens lock
  • Kensington® lock provision,

Projection Lens:


Type: (For Standard Lens) Powered shift/focus / zoomF-number: Depends on lensFocal Length: Depends on lensZoom Ratio: Depends on lensLens Shift:
    (For Standard Lens)
  • Vertical: ±67 degrees
  • Horizontal: ±30 degrees

Projector Details:


Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
  • (depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
  • Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)
Interfaces:
  • 3G-SDI x 1
  • DVI-D x 1
  • HDMI x 1
  • HDBaseT x 1
  • 5-BNC, VGA x 1
  • Audio in: Mini
  • Stereo x 3
  • Variable audio out: Mini Stereo x 1
  • USB 2.0 Connectors Type B x 1 (For Service Only)
  • Type A x 1 (For Wireless Only)
  • Monitor Out Mini D-sub 15 pin x 1
  • Serial Control Serial: RS-232c x 1
  • SDI Out x1
Fan Noise:
  • Normal mode: 49 dB
  • ECO mode: 33 dB
  • Extended Mode: max. 40 dB

Projector Dimensions:


Including feet: With feet, lens, handle: 36.85" x 14.90" x 33.86"

Remote Control:


Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functionsOperating Distance: 49 ftOperating Angle:
    Right / Left:
  • Front: ±60 degrees
  • Rear: ±30 degrees
  • Upper / Lower:
  • Front: ±20 degrees
  • Rear: ±10 to ±50 degrees

Power:


Power Supply Voltage: 200 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode: 2500 W
  • ECO mode: 1850 W
  • Communication on: 3.0W standby
  • Communication off: 0.5 W standby

Notes:

* 20,000 hours is the estimated projector life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution and surpass Full HD image quality.
3 Emulation Mode is limited to certain code sets and may not support all codes. Contact Epson Support for the latest supported sets.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
