For Work Projectors Portable VS350 XGA 3LCD Projector
Discontinued

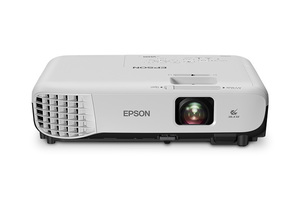

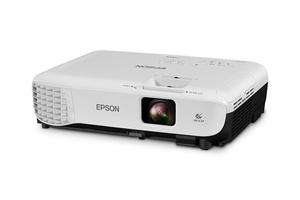

VS350 XGA 3LCD Projector

Portable projector with HDMI® for presentations with greater detail.

Travel friendly and easy to use, the VS350 portable projector delivers 3,300 lumens of color/white brightness1 for vivid, colorful images — even in well-lit rooms. Featuring XGA resolution (1024 x 768) — 1.5x more than SVGA — the VS350 is ideal for more detailed, text-heavy presentations. Its simple image adjustment and setup tools get you up and running quickly. Plus, Epson® 3LCD projectors deliver remarkable color accuracy, with high Color Brightness2 and wide Color Gamut3. The VS350 also supports HDMI, the standard in digital connectivity, for use with the latest laptops and media players.

    • Projection System: 3LCD, 3-chip technology
      Native Resolution: 1024 x 768 (XGA)
      Color Brightness: 3300 lumens1
      White Brightness: 3300 lumens1
      Throw Distance Calculator
  • Model: V11H839220
  • More accurate, vivid color, even in well-lit rooms — 3,300 lumens of equal color and white brightness1
  • XGA resolution (1024 x 768) — 1.5x more resolution than SVGA for projecting text-heavy presentations with greater detail
  • Fast, easy setup, only from Epson — get up and running in no time with easy image adjustments and convenient control
  • Remarkable color accuracy — High Color Brightness2 and wide Color Gamut3 with Epson
  • Works with the latest laptops and media players — supports HDMI, the standard in connectivity, for digital video and audio in one cable

Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay™ Transport Partner5

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Epson VS350 Multimedia Projector
  • Power cable
  • Computer cable (VGA)
  • Projector remote control
  • Batteries
  • User manual CD
  • Quick Setup Sheet

Specifications Projector:


Projection System: Epson 3LCD, 3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024 x 768) x 3Color Brightness - Color Light Output: 3300 lumens1White Brightness - White Light Output: 3300 lumens1Aspect Ratio: 4:3Resolution: 1024 x 768 (XGA)Resize: 800 x 600 (SVGA), 1152 x 864 (SXGA),1280 x 800 (WXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+)Lamp Type: 210 W UHELamp Life:
  • ECO Mode: Up to 10000 hours6
  • Normal Mode: Up to 6000 hours6
Throw Ratio Range: 1.48 (Zoom:Wide), 1.77 (Zoom:Tele)Size - projected distance: 30" – 300" (0.9 – 9.0m)Keystone Correction:
  • Automatic: Vertical: ±30 degrees
  • Horizontal: Easy-slide, Image correction
USB Plug 'n Play: Projects audio and video, PC and Mac® compatibleContrast Ratio: Up to 15,000:1Color Reproduction: Up to 1.07 billion colors

General:


Temperature: 41° to 95° F (5° to 35° C)Weight: 5.5 lbSecurity: Password Protect function

Projection Lens:


Type: Optical zoom (Manual)/Focus (Manual)F-number: 1.49 – 1.72Focal Length: 16.9 mm – 20.28 mmZoom Ratio: Optical zoom 1.0 – 1.2

Projector Details:


Display Performance:
  • NTSC: 480 lines
  • PAL: 560 lines
  • (depends on observation of the multi-burst pattern)

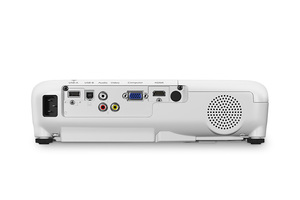

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAMInterfaces:
  • HDMI x 1
  • Computer / Component video: D-sub 15 pin x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA (White / Red) x 1
  • USB connector: Type A x 1 (PC-free and other)
  • USB connector: Type B x 1 (USB Plug 'n Play)
Speaker: 1 W (Mono)Fan Noise:
  • ECO mode: 28 dB
  • Normal mode: 37 dB

Projector Dimensions:


Including feet: 11.9" x 9.3" x 3.2" (W x D x H)Excluding feet: 11.9" x 9.2" x 3.0" (W x D x H)

Remote Control:


Features: Source search selection, power, volume, e-zoom, A/V Mute, freeze, menu, page up and down, help, auto, mouse functionsOperating Distance: 19.7' (5.8 m)Operating Angle:
  • Right / Left: ±30 degrees
  • Upper / Lower: ±15 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 HzPower Consumption:
  • ECO mode: 211 W
  • Normal mode: 295 W

Service Plans:

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Color brightness (color light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

3 Gamut volume in brightest mode, measured by a third-party lab in 3D in the CIE L*a*b* coordinate space.

4 For convenient and reasonable recycling options, visit www.epson.com/recycle

5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

6 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
