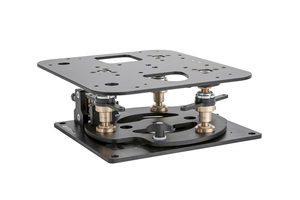

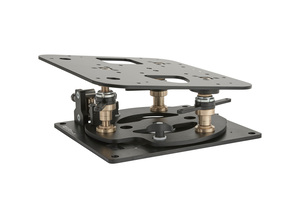

ELPMB77 Tilt Adapter Mounting Plate for Stacking Frame

• Intuitive alignment — innovative three-point self-alignment system is practical and intuitive—when one point is adjusted, the other two adapt their inclinations accordingly

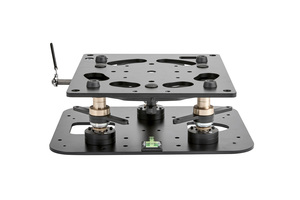

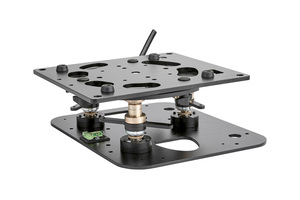

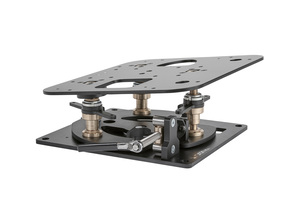

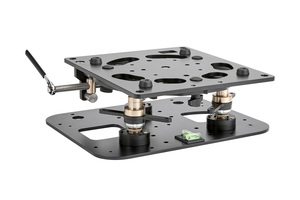

• Easy tilt adjustment — use the ratcheting wrench to change yaw direction and the plate lifters to adjust pitch and roll
• Secure system positioning — the force required for adjustment is low; once the desired position is reached, the system remains fixed, stable and constant over time

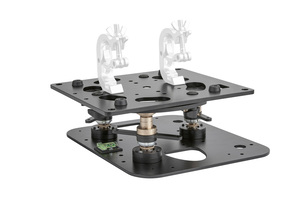

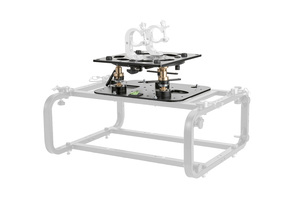

• Truss mounting — mount the stacking frame securely using truss clamps (not included); the frame’s smaller plate features two holes that accommodate M10 clamp fixing screws (not included) for truss mounting
• Micro adjustment ranges — roll: ±3 degrees; pitch: ±3 degrees; yaw: ±4 degrees
• Versatile design — compared to the ELPMB81 Tilt Adapter, the ELPMB77 can be mounted directly to the projector; it can be placed on the ground with included feet, hung from a ceiling, and has the ability to make more precise adjustments
• Sturdy, convenient design — for outstanding functionality and ease of use; dimensions (W x D x H): 15.4" x 14.3" x 3.9" (390 mm x 362 mm x 100 mm)

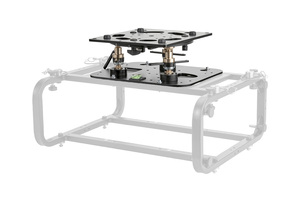

• Compatible — attaches to Epson projectors directly or to the Alfa (ELPMB76) and Beta (ELPMB84) projector stacking frames
• Supports Epson projector stacking frames — attaches to the Alfa (ELPMB76) and Beta (ELPMB84) projector stacking frames
• Linear adjustment — for fast and precise installation of ultra short throw (UST) or other projectors without a zoom lens, utilize the ELPMB85 rail adapter for fine forward/backward adjustment

Eco Features

• End-of-life options available¹
• Epson America, Inc. is a SmartWay^® Transport Partner²
