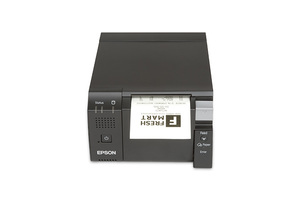

OmniLink TM-T70II-DT Intelligent Printer

The OmniLink TM-T70II-DT offers retailers a POS system with maximum computing power and configuration flexibility. It includes a retail-hardened PC with a POSReady 7, Windows 7 Pro or Linux operating system powered by an Intel Atom 1.86GHz processor and Epson’s unique ePOS-Print technology enabling browser-based printing. It is all integrated into an ultra-small footprint and is ideal for mobile, Web-based and standalone POS and kiosk applications.

REPLACEMENT PRODUCT :
OmniLink TM-T70II-DT2 Thermal POS Printer with Integrated PC
OmniLink TM-T70II-DT2 Thermal POS Printer with Integrated PC
Model: View Main Product Page Learn More
  • Printer with retail-hardened PC
  • POSReady 7, Windows® 7 Pro or Linux OS
  • Ethernet, optional Wireless-N connectivity
  • Includes multiple USB ports and a built-in VGA for POS peripheral connectivity
  • Mobile POS supports web-based printing from any mobile device
  • Intel® Atom™ processor supports a variety of thin client or Web POS configurations
  • Print speeds up to 300mm/sec
  • Paper-saving features reduce paper usage up to 30%

Print Other:


Printing Technology: Thermal line printingPrint Speed: 250mm/sec, (9.84"/sec)

General:


Server Systems: HTTP server (Apache)Dimensions: 6.77" x 11.42" x 4.49" (172 x 290 x 114 mm) (W x D x H)Weight: 6.61 lbs (3.0 kg)Safety Approvals: Safety standards UL/CSA/EN/TUV/GOST-RCase Color: Epson Black (EBCK), Epson White (ENN8.5)

Print Fonts:


Column Capacity:
  • Standard: Paper width 80mm: 56/42
  • 42 Column Mode: Paper width 80mm: 42/60
Character Size: (Std / Double H, Double W / Double W and Double H)
  • Font A: 1.69 x 3.38 / 1.69 x 6.77 / 8.38 x 3.38 / 3.38 x 6.77mm
  • Font B: 1.27 x 2.40 / 1.27 x 4.79 / 2.54 x 2.40 / 2.54 x 4.79mm
Fonts:
  • Font A: 12 x 24 dots
  • Font B: 9 x 14 dots (W x H)
Character Set: 95 Alphanumeric, 48 set International, 128 x 11 PagesGraphic. Barcode: UPC-A, UPC-E, JAN13 (EAN13),JAN8 (EAN), CODE39, ITF, CODABAR (NW-7),CODE93, CODE128, GS1-128, GS1 DataBar.Two dimensional code: PDF417, QRCode, MaxiCode,2D GS1 DataBar, Composite SymbologyCharacters per Inch: 20.0 and 15.0 cpi

Media Handling:


Width: 79.5 ± 0.5mm (3.13" ± 0.02")Roll Diameter: 83mm (3.27")

Connectivity:


Standard Connectivity:
  • Built-in USB interface + another selection: serial, parallel
  • high-speed USB, Ethernet, wireless RS-232, RS-485
Printer Control: Can control printing on up to 20 Ethernet interface or TM series printers equipped with a wireless LAN interface

Hardened PC:


Processor: Intel® Atom™ processor (1.86GHz)Data Buffer: 4.0GB (DDR3-1066)Interface:
  • USB 2.0 x 6
  • 100 Base-TX/10 Base-T Ethernet compliantinterface
  • VGA x 1 (D-sub 15pin female)
  • x 1 DisplayPort
  • x 1 (3.5mm stereo mini jack) for external speaker output
  • x 1 for cash drawer
  • x 1 RS-232
Options: Powered USB hub with 12 volts supports 3 peripheralsOperating System:
  • Windows®
  • Embedded POSReady 7
  • Windows 7 Pro
  • Linux

POS Details:


Reliability:
  • MTBF 360,000 hours
  • MCBF 65,000,000 lines
  • Autocutter 1.7 million cuts
D.K.D.: 2 driversSoftware Included: Intelligent software: WebPOS Configuration, ePOS-Device, Preboot Execution Environment (PXE)Options: Affixing tape, external buzzer unit, cable managementcover, shelf bracket

Power:


Power Consumption: Approx. 1.8A (mean)Power Source: 100 – 240V AC, 50/60 Hz
