For Work Projectors Classroom BrightLink 696Ui Full HD 3LCD Ultra Short-throw Interactive Display
Discontinued

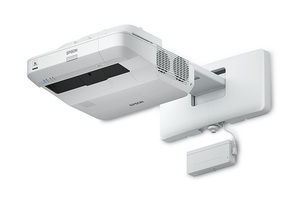

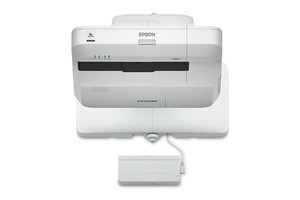

BrightLink 696Ui Full HD 3LCD Ultra Short-throw Interactive Display

Zoom In
BrightLink 696Ui Full HD 3LCD Ultra Short-throw Interactive Display
BrightLink 696Ui Full HD 3LCD Ultra Short-throw Interactive Display
BrightLink 696Ui Full HD 3LCD Ultra Short-throw Interactive Display
BrightLink 696Ui Full HD 3LCD Ultra Short-throw Interactive Display
BrightLink 696Ui Full HD 3LCD Ultra Short-throw Interactive Display
BrightLink 696Ui Full HD 3LCD Ultra Short-throw Interactive Display

The Full HD ultra short-throw interactive display for classrooms.

Transform your classroom into a collaborative learning space with the BrightLink 696Ui touch-enabled, Full HD WUXGA ultra short-throw interactive display. Featuring a powerful 3,800 lumens of color and white brightness1, the 696Ui delivers dynamic images up to 100" — from as close as 10" away. Turn almost any wall or existing whiteboard into an interactive workspace with pen- and touch-based interactivity — up to two pens or six users at one time. Wirelessly display content from a variety of devices — including Chromebooks — using the Epson iProjection™2 App with Moderator device management software3. Plus, it includes a 1-year subscription and support for SMART Learning Suite.

Find Accessories Support View Service Plans
REPLACEMENT PRODUCT :
BrightLink 1485Fi 1080p 3LCD Interactive Laser Display
BrightLink 1485Fi 1080p 3LCD Interactive Laser Display
Model: View Main Product Page Learn More
Bright and Colorful

Features 3800 lumens of color brightness (color light output)1 and 3800 lumens of white brightness (white light output)1 .
WUXGA Resolution
1920 x 1200 Full HD widescreen resolution
Interactive
Make almost any smooth, lightly-colored surface interactive with BrightLink solutions.
Finger-Touch Enabled
Touch, draw, select and interact using intuitive and familiar gestures
iProjection Compatible
Wirelessly project from PC, MAC, Chromebook, iOS, and Android devices – Connect and manage up to 50 devices simultaneously.
Ultra-Short Throw Projector
Can be mounted only 11" away from the board for a projected image as large as 100" diagonal – with no shadow interference.
  • Powerful display — 3,800 lumens color/white brightness1
  • Full HD WUXGA display up to 100" — supersize display for clear legibility and visibility from anywhere in the room
  • Pen- and touch-based interactivity — touch interactivity allows up to six users to draw, share and collaborate at once using familiar gestures
  • Wirelessly connect up to 50 devices — simultaneously share and control content from up to four screens at once using Moderator software3, including Chromebook, PC, Mac, iOS® and Android™ devices
  • Easy content sharing — share images between the big screen and wirelessly connected mobile devices, for individualized learning2
  • Includes 1-year subscription and support for SMART Learning Suite — SMART Notebook®, SMART amp™, SMART lab™, SMART Learning Suite Online and more
  • Ultra short-throw interactive display — get a large, easy-to-read 100" image from as little as 11" away with virtually no shadow interference
  • Long-life, low-cost lamps — lasts up to 10,000 hours in ECO Mode4
  • DuoLink — install two BrightLink displays side-by-side to create one seamless interactive surface5
  • High Color Brightness6, and reliable performance — 3LCD, 3-chip technology


IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • BrightLink 696Ui ultra short-throw interactive projector
  • Quick Start Guide
  • 15' power cable
  • 5m USB A/B cable
  • 5m USB extender cable
  • electronic user manual
  • interactive driver for Mac and PC
  • Epson Easy Interactive Tools
  • Network Management software
  • projector remote control
  • two (2) interactive pens
  • pen tray
  • two (2) AA batteries (for interactive pens) plus battery charger
  • two (2) AA batteries (for remote)
  • Wall mount
  • SMART Learning Suite redemption code
  • Soft pen tips (4)
  • Hard pen tips (2)
  • Touch module
  • Touch module cable
  • Touch module mounting bracket

Specifications Projector:

Projection System: Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/wall mount/table mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2,304,000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 3,800 lumensWhite Brightness - White Light Output: 3,800 lumensAspect Ratio: 16:10Resolution: 1920 x 1200 (WUXGA)Lamp Type: 267 W UHELamp Life: ECO Mode: Up to10,000 hours, Normal Mode: Up to 5,000 hoursThrow Ratio Range: (16:10) 0.28 – 0.37, (4:3) 0.33 – 0.44, (16:10) 0.27 – 0.37Size - projected distance: (16:10) 70.4" – 100"Keystone Correction: Horizontal: ±3 degrees; Vertical: ±3 degreesUSB Plug 'n Play: For Mac: Mac OS® 10.7/10.8/10.9/10.10/10.11/macOS™ 10.12.x
For Windows: Windows Vista®/Windows 7/Windows 8/Windows 10Contrast Ratio: Up to 16,000:1Color Reproduction: Up to 1 billion colorsInteractive Color Brightness - Color Light Output: 3,800 lumensInteractive White Brightness - White Light Output: 3,800 lumens

General:

Operating Temperature: 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)Dimensions: 18.7" x 17.6" x 5.1"Weight: 18.3 lbSecurity: Kensington lock provision, security anchor bar, Password Protection function

Projection Lens:

Type: Manual focusF-number: 1.6Focal Length: 4.2 mmZoom Ratio: Digital zoom 1.0 – 1.35x

Interactive Specifications:

Interactive Connectivity: USB cable for non-networkedInteractive Technology: Infrared, 850 nmInteractive Modes: Computer Interactivity/Input, PC-free with Whiteboard Annotation, Pen: Dual User, Finger Touch: Up to 6 points of touchCalibration Method: Automatic or ManualInteractive Area: 70" – 100" diagonal (16:10, WUXGA)PC-Free Annotation: Two pens and two fingersPC-Free Annotation Tools: Document Cameras, DVD/ Blu-ray Disc® player, iPod®/iPad® devices, ChromebooksPC-Free Annotation Sources: USB, HDMI, Computer 1, LAN

Interactive Input Device:

Type of Interactive Input Device: Digital penInteractive Pen Functions: Mouse Functions (left and right click), Electronic Pen, LED Battery Status IndicatorInteractive Pen Power: AA battery, rechargeableInteractive Pen Weight: 1.1 oz (without battery)Interactive Pen Dimensions: 6.3" x 0.94" (diameter)Compatible Pen Battery Types: Eneloop® batteries (included), Manganese dry cell, alkaline dry cell

Projector Details:

Display Performance: NTSC: 480 lines
PAL: 576 lines (Depends on observation of the multi-burst pattern) Color ModesInput Signal: NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAMSpeaker: 16 W monauralFan Noise: ECO Mode: 30 dB, Normal Mode: 37 dB

Remote Control:

Features: Computer, Video/HDMI, USB, LAN, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, ESC, Pointer, User, Home, Split, Pen Mode, Link MenuOperating Distance: 19.7 ft (6 m)Operating Angle: Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees
Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 HzPower Consumption: 425 W
2.0 W Standby (Communication On)

General Projectors:

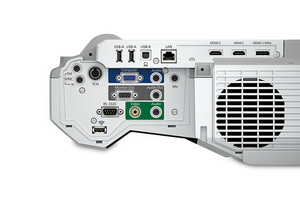

Interfaces:
  • 2x HDMI®
  • 1x HDMI/MHL®
  • Computer/Component video: 1x D-sub 15 pin
  • Composite video: 1x RCA (Yellow)
  • Audio in: 2x Mini stereo
  • USB connector: 1x Type B (USB display, audio interactivity and mouse control)
  • USB connector: 2x Type A (USB memory/document camera)
  • 1x RJ-45
  • Serial: 1x RS-232c
  • Monitor Out: 1x D-sub 15 pin
  • Audio Out: 1x Mini stereo
  • Wireless LAN port: 802.11 b/g/n (included)
  • Interactive Synchronization Mini stereo In
  • Interactive Synchronization Mini stereo Out
  • Touch Unit Connection Port
See Full Specs Hide Full Specs
Print All Specs

Service Plans:

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

* Color Brightness (Color Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color Brightness will vary depending on usage conditions.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

3 Moderator feature is part of EasyMP Multi-PC Projection software.

4 SMART Learning Suite combines SMART Notebook Software 17, SMART Lesson Activity Builder LAB, SMART Response 2, SMART amp, and SMART Learning Suite Online.

5Requires Easy Interactive Driver. Certain functionality is only available through Epson Interactive Tools (EIT) software. For a list of supported operating systems, visit www.epson.com

6 Color brightness (color light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions.

7 For convenient and reasonable recycling options, visit www.epson.com/recycle

8 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
