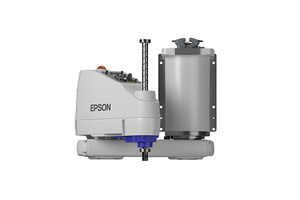

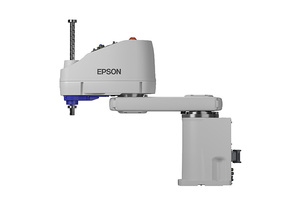

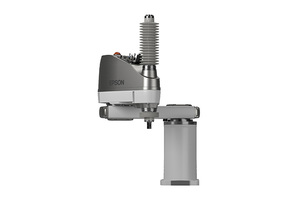

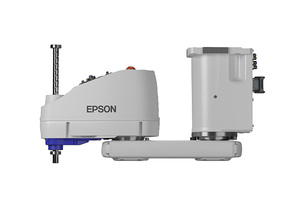

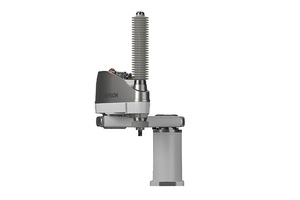

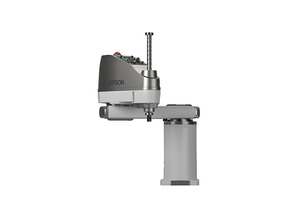

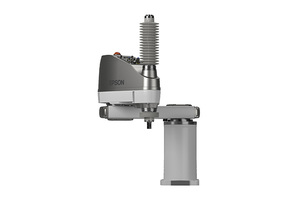

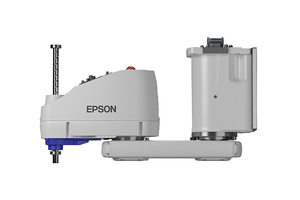

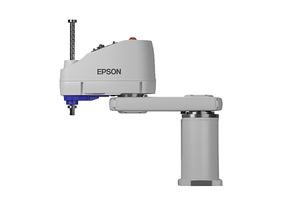

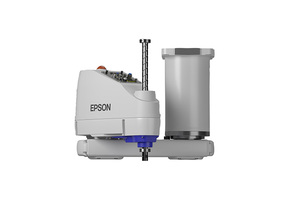

GX8 SCARA Robot - 550mm

Zoom In
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
GX8 SCARA Robot - 550mm
New

GX8 SCARA Robot - 550mm

Maximum Payload (kg): 8 kg
Arm Length / Reach (mm): 550 mm
3rd Party Safety Certifications: Optional
Where to Buy
Contact Us

562-290-5910

Product Highlights

  • Ultra high performance and flexibility
  • Handles high payloads from a small footprint
  • Fast cycle times, smooth motion and fast settling times
  • Epson RC+® software helps create powerful automation solutions
  • Advanced Epson GYROPLUS vibration reduction system
  • Also available in 450 mm and 650 mm
Find Accessories Support Request a Quote Request Literature

Epson GX. Taking SCARA robot performance to the next level.

Introducing the GX8, part of Epson’s new high-power-density SCARA robot lineup. The GX8 builds upon 40 years of expertise to deliver next-level performance and flexibility in a compact footprint. A breakthrough in productivity, the GX8 uses advanced Epson GYROPLUS technology to provide fast production speeds and smooth motion control, all with higher payloads.

Engineered to meet your unique automation needs, the GX8 offers multiple arm configurations and a 450-650 mm reach to accomplish the most demanding tasks—including assembly, pick and place, dispensing, and other material handling with ultra high precision. Its innovative slimline design easily integrates into Cleanroom, ESD or Washdown environments and quickly handles payloads up to 8 kg from a conveniently small form factor. Designed for ease of use, Epson RC+® software works seamlessly with the GX8 to create powerful automation solutions and offers integrated options to simplify the most complex applications. Plus, with battery-less encoders, a built-in Ethernet cable and other useful features, it supports a remarkably low total cost of ownership.
Built for the Most Demanding Conditions
GX-Series robots provide state-of-art configurations to serve a variety of industries and challenging environments with ease.
  • Ultra high performance and flexibility — high throughput with heavy payloads to accomplish the most demanding tasks with leading-edge precision
  • Unique high-power-density SCARA — innovative, slimline design handles heavy workloads at fast speeds, all in a small footprint
  • Fast cycle times — higher acceleration compared to prior generations, smooth motion and fast settling times help maximize throughput for high-precision applications
  • Ultimate ease of use — intuitive and feature-packed Epson RC+ development software helps create powerful solutions with a simple user interface, integrated debugger and advanced 3D simulator
  • Low residual vibration — fast settling times with proprietary Epson GYROPLUS vibration reduction system and rigid arm design, plus no ringing or overshoot
  • Low total cost of ownership — includes battery-less encoders, a built-in Ethernet cable and Epson RC+ software with no recurring license fee
  • Optimized footprint — table, wall- and ceiling-mount options, as well as cable bottom exit option; 450, 550 and 650 mm reach available; longer Z axis available on all models
  • Built for demanding environments —Standard, Cleanroom (ISO3) and ESD, Protected IP65, and new standalone ESD models available
  • Advanced integrated options — Vision Guidance, Parts Feeding, Force Guidance, Conveyor Tracking, Fieldbus, Euromap67, API.NET and Arm Length Calibration

What's in the box:

  • GX8 robot
  • RC700-D controller
  • Epson RC+ software
  • E-stop unit with cable
  • Connector set (I/O, and safety circuit connectors)

Core Specifications:

Arm Length / Reach: 550 mmRepeatability: J1 + J2: ± 0.015 mm
J3: ± 0.010 mm
J4: ± 0.005 degPayload (Kg): Rated: 4 kg
Max: 8 kgCycle Time: 0.30 sec1Motion Range: Tabletop/Ceiling:
J1: ± 152 deg
J2 Std & ESD: ± 147.5 deg
J2 Clean/Protected: Z: 0 ~ -240 mm ± 147.5 deg
Z: -240 ~ -300 mm ± 145 deg
J3 Std & ESD: 200 mm/330 mm
J3 Clean/Protected: 170 mm/300 mm
J4: ± 360 deg

Wall:
J1: ± 135 deg
J2 Std & ESD: ± 147.5 deg
J2 Clean/Protected: ± 145 deg
J3 Std & ESD: 200 mm/330 mm
J3 Clean/Protected: 170 mm/300 mm
J4: ± 360 degAllowable Moment of Inertia: J4: Rated2: 0.01 kg·m2
Max2: 0.16 kg·m2Brakes: Z axis onlyOther: J3 Downforce: 150 N

Other Specifications:

Controller: RC700-DUser Lines: Electric: 15-pin (D-sub), 9-pin (D-sub), 8-pin (RJ45 Cat 5e)
Pneumatic: ø4 mm x2, ø6 mm x2Weight: Tabletop/Ceiling: 34 kg, 75 lb
Wall: 36 kg, 79 lbRobot Cables: 3 m/5 m/10 m Straight and Angled Cable End OptionsSafety Regulations: CE Marking, UL1740 (optional)Power: AC 200 - 240 V (single phase)Power Consumption: 2.2 kVaInstallation Environment: Standard/ESD/ Cleanroom3 & ESD/Protected
See Full Specs Hide Full Specs
Print All Specs

Need Support?

Get the latest drivers, FAQs, manuals and more for your Epson product.

Go to Support

Notes:

1 Cycle time based on round-trip arch motion (300 mm horizontal, 25 mm vertical) with 2 kg payload of tabletop model boost mode (path coordinates optimized for maximum speed).
2 When payload center of gravity is aligned with Joint #4; if not aligned with Joint #4, set parameters using INERTIA command.
3 Complies with ISO Class 3 (ISO 14644-1) and Fed-std209D Class 1 (less than 10 0.1μm particles per 28,317 cm3:1 cft) cleanroom standards.
