Accessories Projector Accessories ELPLX02WS Ultra Short-throw Lens

ELPLX02WS Ultra Short-throw Lens for Epson Pro Series Projectors

Contact Us 800.463.7766
Mon-Fri 7am-4pm PT

The flexible ultra short-throw lens for Epson Pro Series1 projectors 9,000 to 20,000 lumens2.

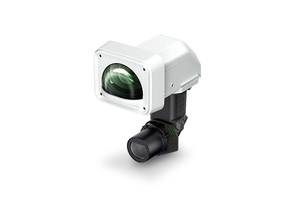

Project supersized images at a short distance with the white ELPLX02WS ultra short-throw lens. Designed for use with Epson Pro Series1 projectors from 9,000 to 20,000 lumens2, this convenient lens makes it easy to display bright, larger-than-life images up to 1000" in narrow or space-constrained environments. Featuring white housing to pair with white projectors, a .35 throw ratio, wide lens shift and unique zero offset design, the ELPLX02WS offers incredible flexibility to accommodate a variety of projection installations, including low-ceiling, rear-projection and stealth applications. And, with an integrated mount point for Epson's optional ELPEC01 external camera, you can access powerful automated tools to simplify and speed up setup, such as auto color calibration3, screen matching of multiple projectors4, tiling assist5 for edge blends, a stacking assist6 function and more.

Also available in black

Projector sold separately

  • Model: V12H004Y0B
  • Project large images at a short distance — lens makes it easy to display larger-than-life images while minimizing shadows and light path obstructions
  • Flexible installation — .35 throw ratio, wide lens shift and zero offset for enhanced convenience
  • Perfect for space-constrained environments — ideal for narrow spaces and rear-projection applications; unique zero offset design maximizes display size in areas with low ceilings
  • Engineered for versatility — bring bright, bold projection to locations where you previously could not utilize a projector
  • Mount point for optional ELPEC01 external camera — access powerful tools such as auto color calibration3, screen matching of multiple projectors4, tiling assist5 for edge blends and a stacking assist6 function
  • Compatible with Epson Pro Series1 projectors — works with Epson laser projectors1 from 9,000 to 20,000 lumens2
  • Large screen size — project 100" to 1000"; F-number: 1.9; Focal Length: 8 mm
  • WUXGA throw ratio — .35 Lens Shift: Vertical: +45% to +70% (H Center) Horizontal: -15% to +15% (V Center)
  • Native 4K throw ratio — .34 Lens Shift: Vertical: +45% to +68% (H Center) Horizontal: -10% to +10% (V Center)

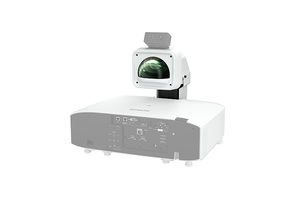

  • Designed for stealth installations — pair with a white projector in the ceiling with just the lens protruding for a stealth installation
  • Lens neck cover included — for a sleek, seamless look
  • SXGA+ throw ratio — .36 Lens Shift: Vertical: +45% to +55% (H Center) Horizontal: -5% to +5% (V Center)

Eco Features

  • Recyclable product7
  • RoHS compliant
  • Epson America, Inc. is a SmartWaySM Transport Partner8

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

Specifications:


Product Specifications PDF:

DOWNLOAD NOW ►

Pro Series Lens Fact Sheet PDF:

DOWNLOAD NOW ►

Notes:

1 Will not work with Epson Pro L25000 or Pro L30000 Series projectors.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 Requires Epson external camera.

4 Requires an Epson external camera for each projector.

5 Requires Epson external camera for each projector and the Epson Projector Professional Tool app.

6 Requires Epson external camera for each projector and may, depending on your projector, require Epson Projector Professional Tool app.

7 For convenient and reasonable recycling options, visit www.epson.com/recycle

8 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
