PowerLite Pilot 3 Connection and Control Box

Contact Us 800.463.7766
Mon-Fri 7am-4pm PT

Projector A/V control box for optimized connectivity in the classroom.

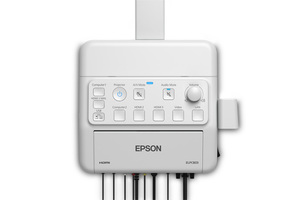

Maximize cable management and control for your classroom projector with the PowerLite® Pilot™ 3, a convenient wall-mounted A/V connection and control box for Epson® short-throw and ultra short-throw projectors. Designed to support an array of devices, the PowerLite Pilot 3 streamlines source switching and volume control. With 3x HDMI® control buttons (including 1 MHL®), you can select from an array of connected classroom devices — and even display two sources side-by-side onscreen at once using your projector’s Split Screen feature1. You can also use it as an extension box to expand the range of your cables and increase flexibility.

  • Model: V12H927020
Our Price :


  • Centralized A/V control box — manage your Epson short-throw or ultra short-throw projector (power, A/V Mute, volume, sources); no remote control needed
  • Easy operation — large, individual source buttons intuitively match Epson projector inputs

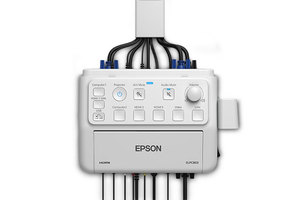

  • Consolidated cable management — convenient wall placement helps avoid potential trip hazards
  • Optimized for connectivity — 3x HDMI control buttons to select the source from connected high-definition A/V devices; connect and charge an MHL-enabled device via the MHL/HDMI port2
  • Split Screen support1 — connect two devices and use your projector to simultaneously project two images (video or still) side by side
  • Increased flexibility — use as an extension box to expand the range of your cables
  • Remote volume adjustment — easily control projector audio from the front of the room via the volume dial and audio mute button
  • Simple installationn — quickly and easily attaches to the wall
  • Sleek design — protective cable cover and pen/iPhone® holder included
  • Industry-leading service and support — 2-year limited warranty, Epson PrivateLine® dedicated toll-free support

Eco Features

  • RoHS compliant
  • Recyclable product3
  • Epson America, Inc. is a SmartWaySM Transport Partner4

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

What's in the box:

  • PowerLite Pilot 3
  • External AC power adapter with power cord
  • A/C adapter holder, cable cover
  • Interactive pen holder
  • HDMI cable clamp
  • User Guide CD
  • Installation manual
  • Template sheet
  • Warranty statement

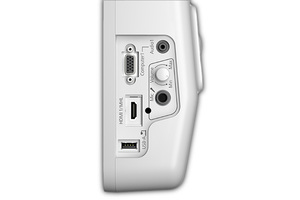

Input Terminal:
  • Input Video VGA x 2, Composite Video, HDMI x 2 (HDMI/MHL x1), USB-A, USB-B
  • Input Audio Stereo mini jack (3.5 mm) x 3, RCA connector (L & R), Mic In (6.3 mm)
Control Terminal: RS-232c (9-pin crossover/null modem type)Output Terminal:
  • Output Video VGA x 2, Composite Video, HDMI x 2, USB-A, USB-B
  • Output Audio Stereo mini jack (3.5 mm) x 2, REC Out (3.5 mm) x1

Application Software:

Functions: Projector Control
  • Power On/Off
  • Source Selection (Computer 1/Computer 2/Video/USB/HDMI 1/HDMI 2/HDMI 3*/LAN)
  • A/V Mute (except for AUX In/Mic Input)
*Control command only, no interface.

Audio Control

  • Audio Mute
  • Volume Adjustments (except for AUX In/Mic Input/REC Out)
  • Mic volume control


Humidity: 20% – 80% RHOperating Temperature: 41 to 95 °FDimensions:
  • 9.1" x 3.6" x 8.9" (with cover)
  • 9.1" x 3.6" x 7.1" (without cover)
Weight: 2.7 lbWarranty: 2-year limited warranty, Epson PrivateLine® dedicated toll-free support


Power Supply Voltage: 100 – 240 V AC ± 10%Rated Frequency: 50/60 HzPower Consumption: 12 W, < 0.1 W in Standby ModeOutput Voltage of AC Power Adapter: DC 12 V


1 Split Screen feature requires remote control. Consult your user manual for input combinations.

2 Depending on your MHL device, charging may not be supported.

3 For convenient and reasonable recycling options, visit www.epson.com/recycle

4 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
