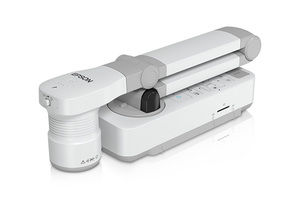

DC-21 Document Camera

The HD quality document camera that makes ordinary lessons extraordinary.

Engage students like never before with the Epson® DC-21 document camera. This portable performer easily captures and displays books, 3D objects and experiments with amazing clarity, thanks to HD 1080p resolution, a large imaging sensor and HDMI® connectivity. Share the finest detail with 12x optical zoom and 10x digital zoom. Or, display magnified images with the microscope adapter. Record audio with video using the built-in microphone. At 30 fps, video playback is seamless. And, there are convenient Freeze and Capture buttons. Plus, you can save lessons to an SD card¹ or computer.

Model: V12H758020

Our Price :

$579.00

Find Accessories Support View Service Plans

DC-21 Document Camera

$579.00

Overview
Specifications
Accessories
Works With
Support

Overview

Deliver powerful lessons with extraordinary close-up detail — 10x digital zoom plus 12x optical zoom
Astounding clarity and color — HD 1080p output resolution
Advanced connectivity — HDMI digital connectivity for high-definition video
Share magnified images — microscope adapter included; supports many standard microscopes
Record and share audio/video lessons — built-in microphone and included software; one-touch A/V recording
Ultra smooth video performance — 30 frames per second (fps) at a 1080p frame rate
Capture, save and present images — supports SD cards¹ and computers
Convenient Freeze and Capture buttons — easily pause and/or resume the image
Epson Warranty — Two-year limited warranty, Epson Road Service Program , and Epson PrivateLine® dedicated toll-free support (U.S. and Canada only)

Eco Features

RoHS compliant
Recyclable product²
Epson America, Inc. is a SmartWay^SM Transport Partner³

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

DC-21 Document Camera
AC power adapter with cord
USB cable
Application software CD
Remote control
(2) AA batteries
VGA cable
Microscope adapter
User's Guide CD
Quick Start Guide
Warranty card
Soft carrying case

Specifications

Camera:

Output Signals / Resolution:

VGA: SXGA (1280 x 1024), XGA (1024 x 768),WXGA (1280 x 800), HD (1360 x 768), 1080p (1920 x 1080)
USB: VGA, SVGA, XGA, SXGA, WXGA, 720p, 1080p
HDMI: 480p/720p/1080p

Frame Rate: 30 fps max.Imaging Element:

Pick-up device: 1/2.7" CMOS sensor
Effective pixels: 1920 x 1080, 2 megapixels
White Balance: Auto
Exposure: Adjustable
Brightness: Adjustable

Lighting Source: Upper: White LED x 2
Brightness: 250 lx or above @ A3 shooting area

Optics:

Lens: F-number: 3.4-5 Capture Area: Max: 11.7" x 20.7" (at 1080p); 11.7" x 16.5" (at XGA) Zoom: 10x digital zoom, 12x optical zoom Focus: Automatically with one-touch buttonIris: 250 lx or above @ A3 shooting area

Functions:

Image Rotation: Camera Head Rotation: 180 degrees (Horizontal/Vertical)Internal Memory: SD card slot (SD/SDHC only)¹User Functions: Zoom, Freeze, Auto Focus, Focus Lock, LED, Brightness, Contrast, Negative, Black and White, Split Screen, Playback, Video Capture, Digital Scroll (pan/tilt), Flicker Reduction, Image Rotation, Source (PC/ DC), Auto-detect Aspect, Video Recording, Video Playing

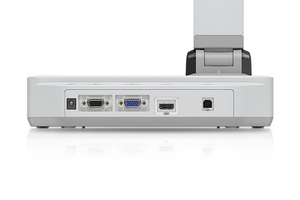

Interface:

Input Terminal:

HDMI
Computer In (VGA)
Display Out (VGA)
USB-B (for connection to PC/Mac®)
SD Card Slot¹

Application Software:

Language: 13 languagesDriver: TWAIN (for Windows)Functions: Rotation, Zoom (+, -, selectable, x1), Auto Focus, Freeze, Record, Time-lapse, Picture Control (Brightness, Contrast, White Balance, Auto White Balance) Saving Format:

Still Image: JPG, BMP, PNG
Video (Windows): AVI
Video (Mac): MOV
Other: PDF, EIT

General:

Operating Systems: Windows® 7, Windows 8, Windows 10, Windows Vista®, Mac OS® X 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x Temperature: 41 ° to 95 °F (5 ° to 35 °C)Humidity: 20 - 80%Weight: 5.8 lbSecurity: Kensington® lock support, Metal security bar, Security mounting holes

Dimensions -Doc Camera:

Open / Unfolded: 10.6" x 19.7" x 12.9"Closed / Folded: Closed/Folded:

Power:

Power Supply Voltage: 100 - 240 V AC Rated Frequency: 50/60 HzPower Consumption: 13 W (Operating)
< 0.5 W (Standby Mode)Output Voltage of AC Power Adapter: DC 12 V
